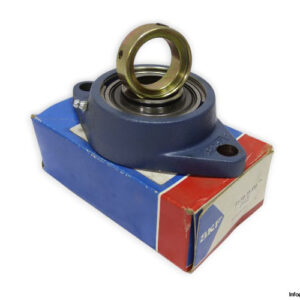

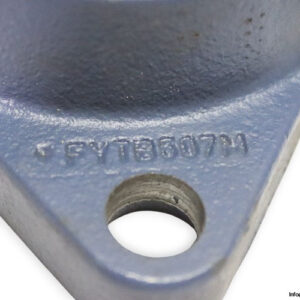

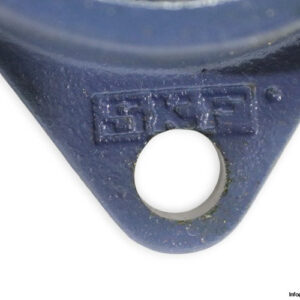

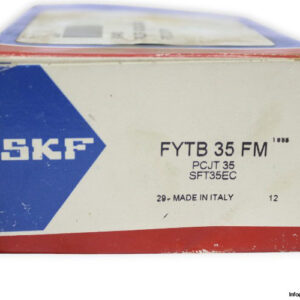

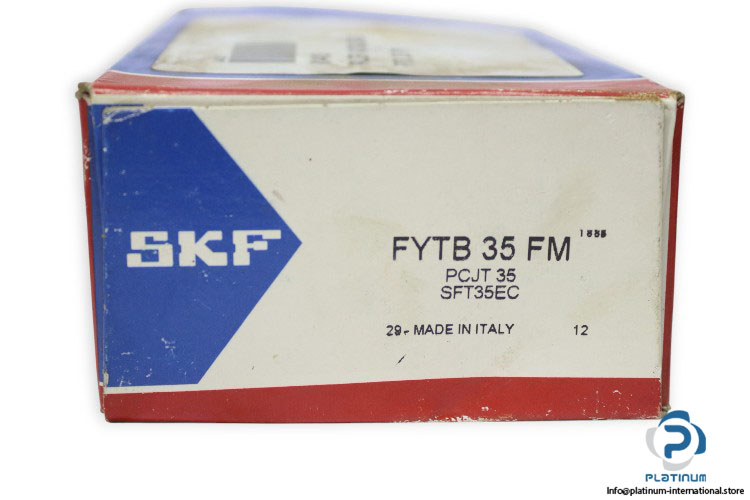

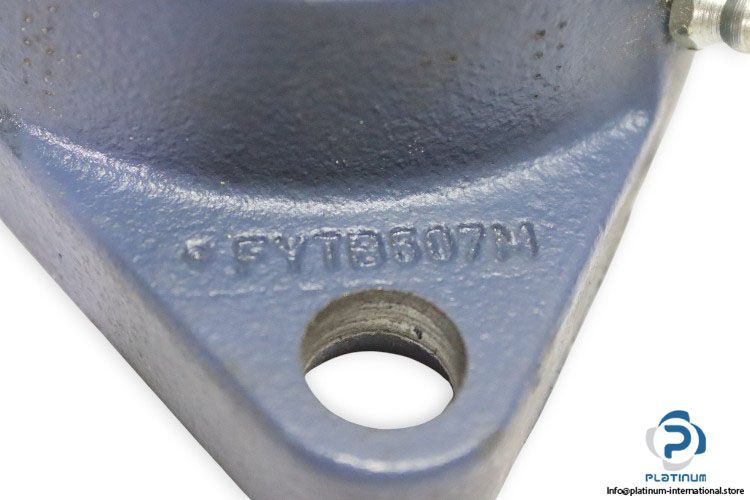

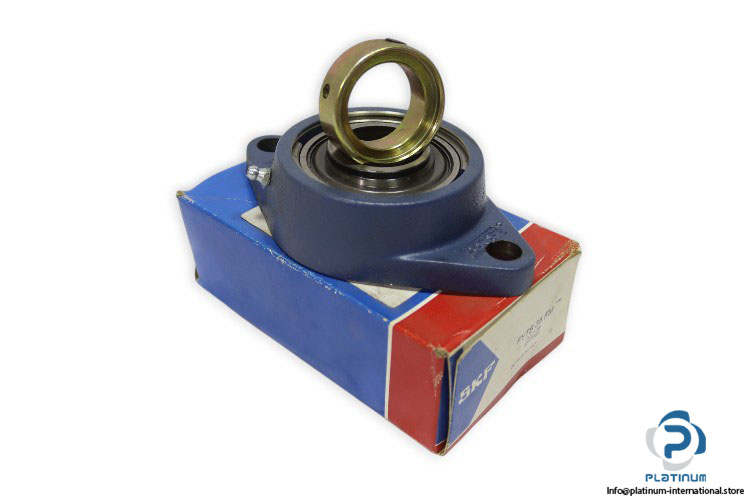

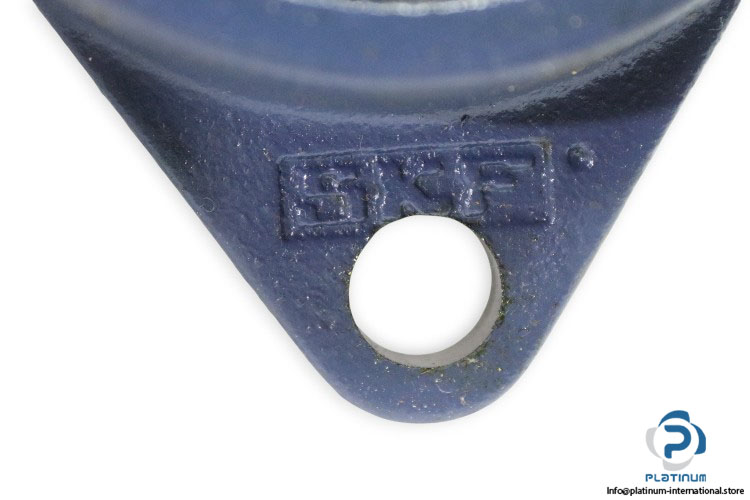

SKF FYTB 35 FM Oval Flanged Ball Bearing Unit

The SKF FYTB 35 FM is a high-quality oval flanged ball bearing unit designed for easy installation and reliable performance in demanding industrial applications. Featuring a YET 207 bearing insert, this unit provides excellent load-carrying capacity, long service life, and smooth operation. The robust cast iron housing ensures durability, while the double-sealed bearing design protects against contaminants and moisture.

• Manufacturer: SKF
• Type: Oval Flanged Ball Bearing Unit
• Model: FYTB 35 FM

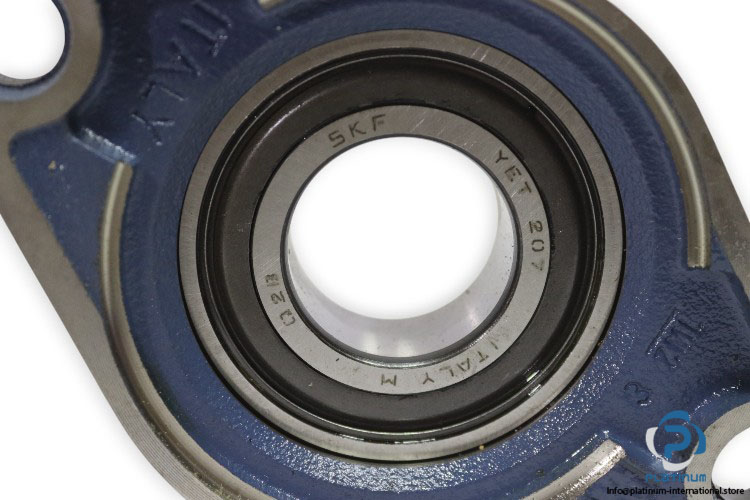

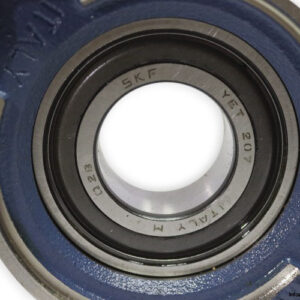

• Bearing No.: YET 207

Technical Information

• Bore Diameter (d): 35 mm
• Width of Housing (A): 34.5 mm
• Width of Inner Ring (B): 25.4 mm
• Overall Bearing Width (B1): 38.9 mm
• Centre Distance Between Bolt Holes (J): 130 mm
• Overall Length (L): 96 mm
• Overall Height (H): 156 mm
• Diameter of Attachment Bolt Hole (N): 14 mm
• Overall Width (T): 50.4 mm
• Basic Dynamic Load Rating (C): 25.5 kN
• Basic Static Load Rating (C0): 15.3 kN
• Fatigue Load Limit (Pu): 0.655 kN
• Limiting Speed: 5300 r/min
• Housing Type: Flanged
• Flanged Housing Type: Oval
• No. of Bolt Holes: 2
• Material, Housing: Cast Iron
• Material, Bearing: Bearing Steel
• Sealing, Bearing: Seal on both sides
• Sealing, Unit: Optional end cover
