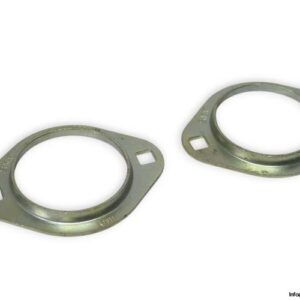

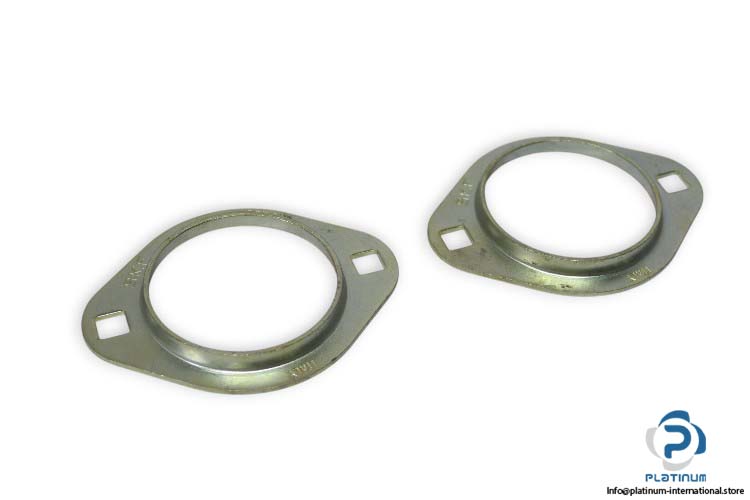

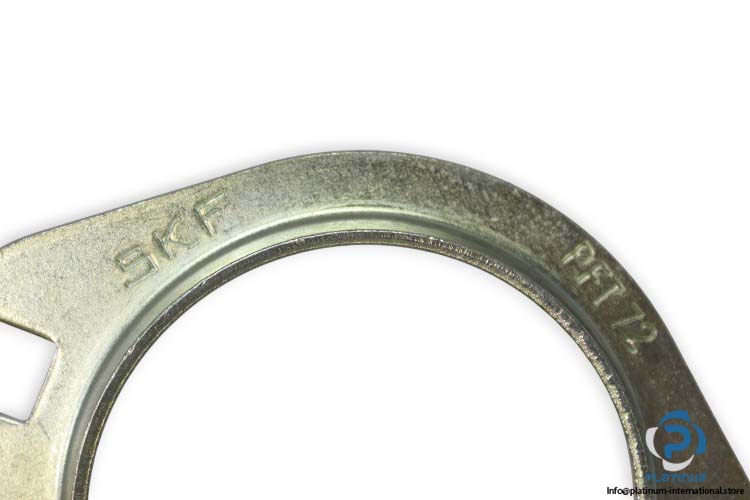

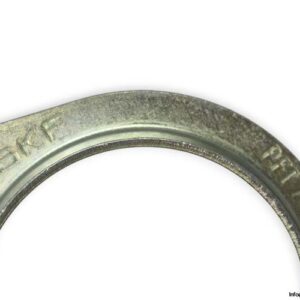

SKF PFT72 Oval Flanged Pressed Steel Housing

The SKF PFT72 is an oval flanged pressed steel housing designed to support insert bearings, offering strong alignment, durability, and ease of installation for industrial applications.

Manufacturer: SKF
Type: Oval Flanged Pressed Steel Housing for Insert Bearing
Model: PFT72

Technical Information

• Spherical Seating Diameter: 72 mm
• Housing Overall Width: 20 mm

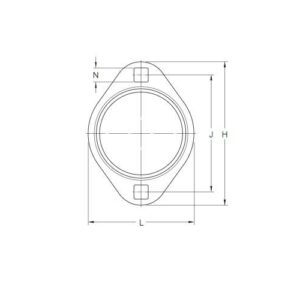

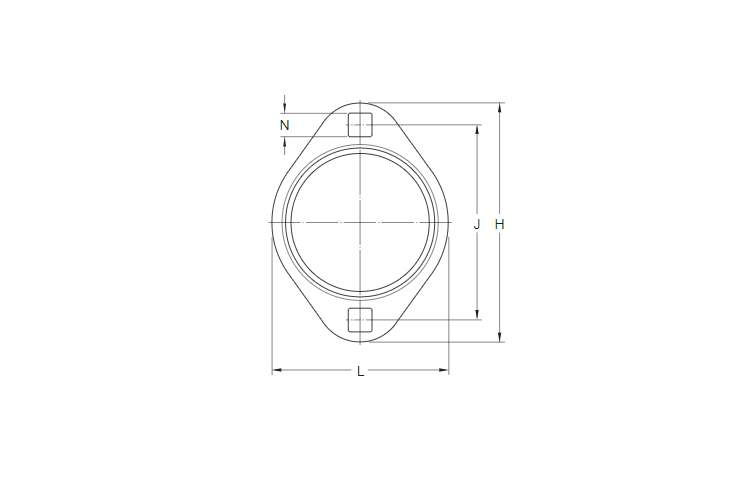

• Centre Distance Between Bolt Holes (J): 100 mm

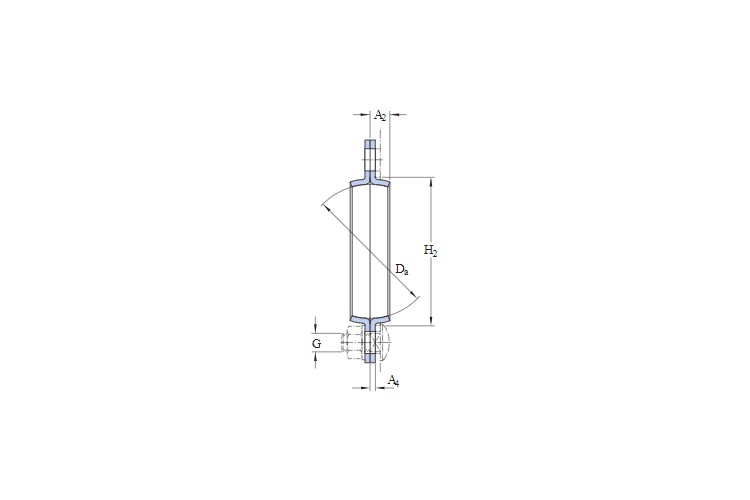

• Width Housing Half (A2): 10 mm
• Material Thickness (A4): 2.5 mm
• Overall Height (H): 122 mm
• Abutment Diameter (H2): min. 77 mm
• Overall Length (L): 94 mm
• Diameter of Attachment Bolt Hole (N): 11 mm
• Permissible Radial Load: max. 6.5 kN
• Housing Type: Flanged
• Flanged Housing Type: Oval
• Number of Bolt Holes for Fasteners: 2
• Material, Housing: Pressed Steel
