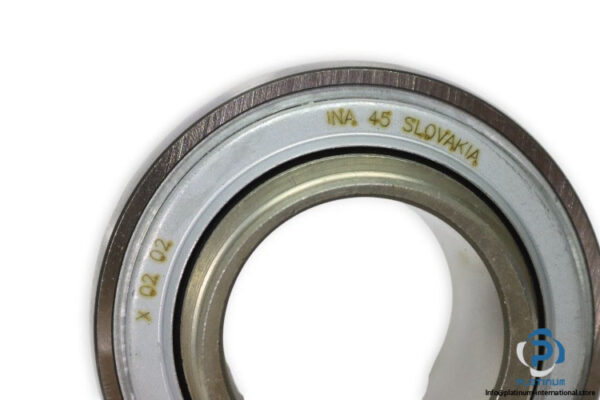

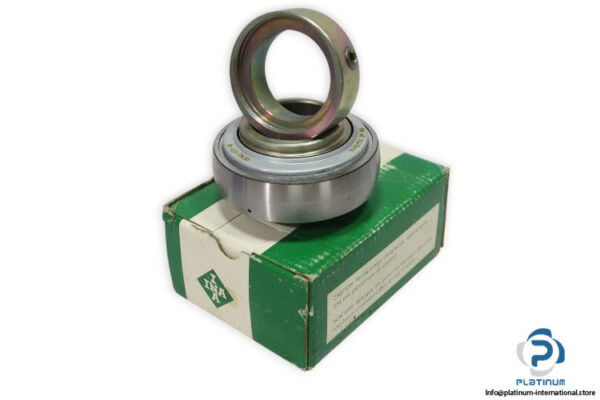

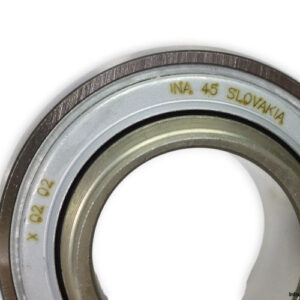

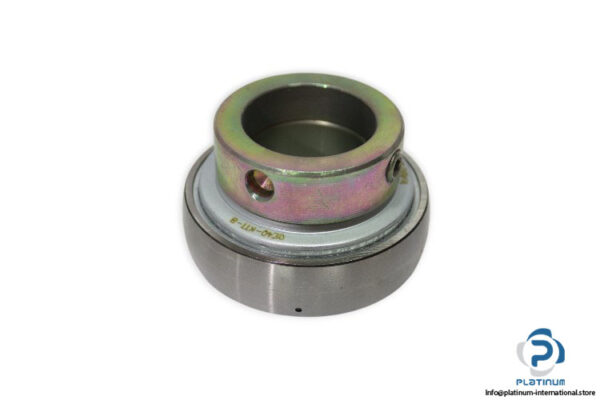

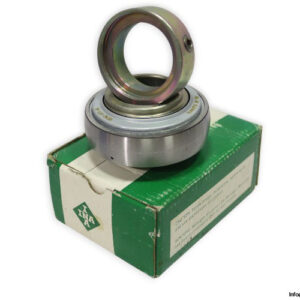

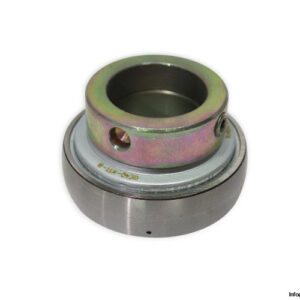

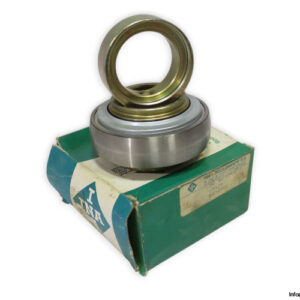

INA GE40-KPPB / GE 40-KPPB-3 Radial Insert Ball Bearing
The INA GE40-KPPB / GE 40-KPPB-3 is a high-quality radial insert ball bearing designed for reliable performance and long service life in industrial machinery. It features triple lip seals (KTT) on both sides for excellent protection against dust and contaminants, ensuring smooth operation even in demanding environments. With its precise dimensions and robust load ratings, this bearing is ideal for applications requiring high radial load capacity and durability.
- Manufacturer: INA
- Type: Radial Insert Ball Bearing
- Model: GE40-KPPB / GE 40-KPPB-3

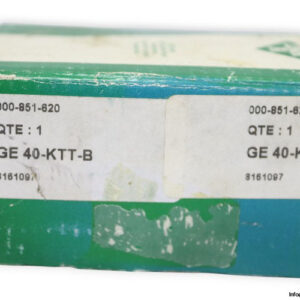

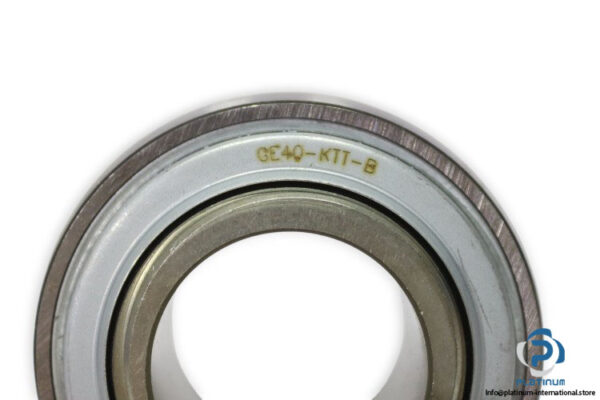

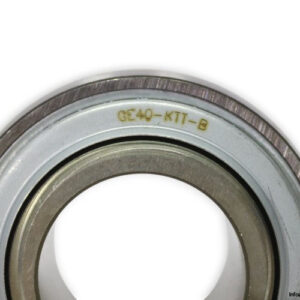

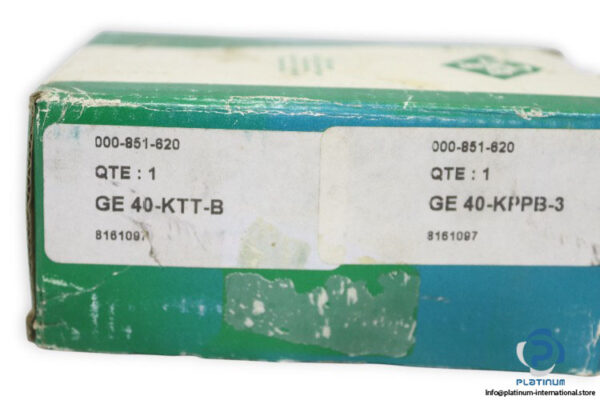

- Code: GE40-KTT-B / X Q2 Q2
Technical Information
- Bore Diameter (d): 40 mm
- Outside Diameter (D): 80 mm
- Width (B): 42.9 mm
- Width, Outer Ring (C): 21 mm
- Sealing Total Width (C2): 28.1 mm
- Distance Raceway (S): 21.4 mm
- Rib Diameter Inner Ring (d1): 52.3 mm
- Outside Diameter Seal (D1): 68.3 mm
- Distance to Lubrication Hole (Ca): 6.4 mm
- Outside Diameter Locking Collar / Locknut (d3): 58 mm
- Width of Flats (W): 5 mm
- Fatigue Load Limit, Radial (Cur): 840 N
- Dynamic Load Rating (C): 34,500 N
- Static Load Rating (C0): 19,800 N
- Sealing: KTT, Triple Lip Seals on Both Sides
