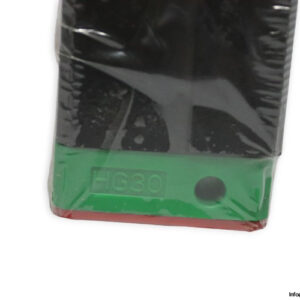

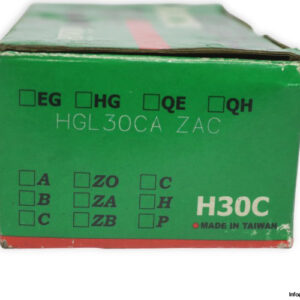

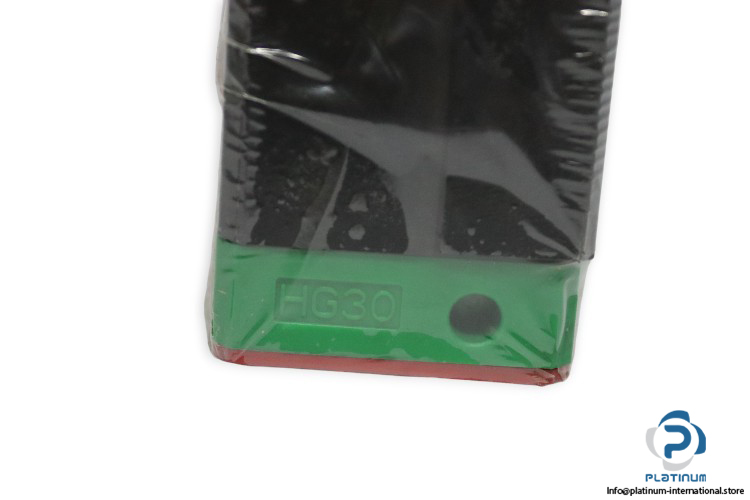

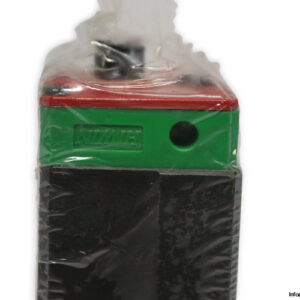

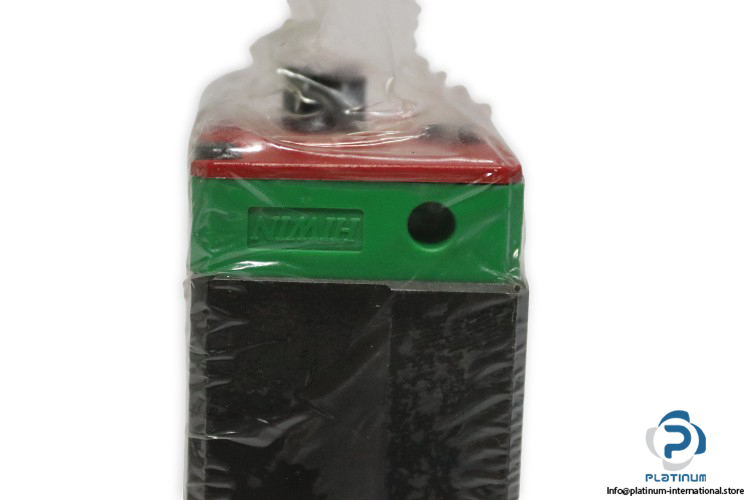

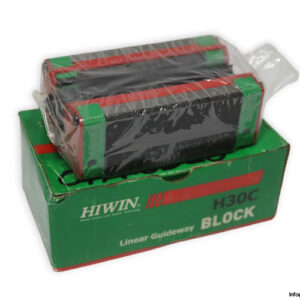

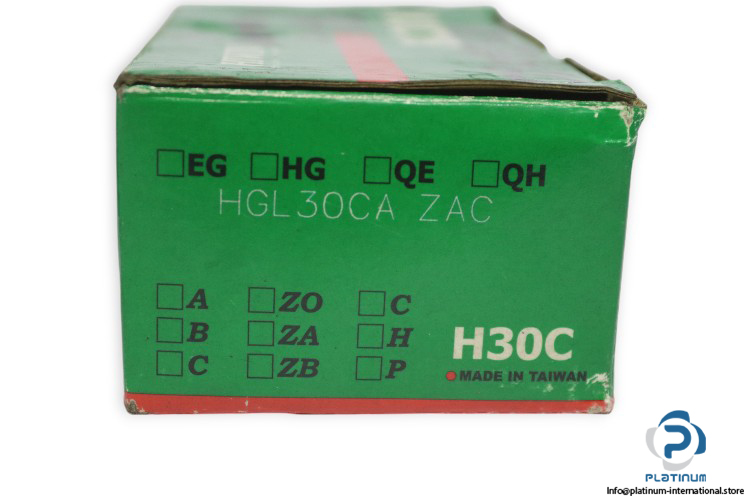

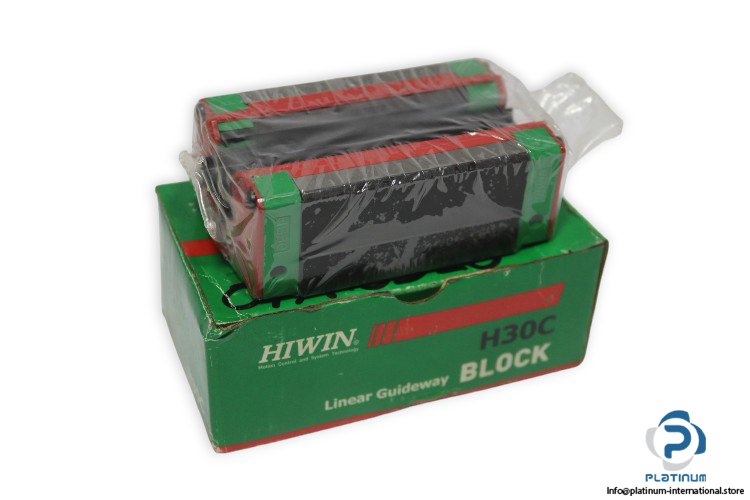

HIWIN HGL30-CA LINEAR GUIDEWAY BLOCK

The Hiwin HGL30-CA is a high-performance linear guideway block designed for heavy load applications in precision motion systems. With a compact low-profile square design and robust dynamic and static load ratings, this block ensures stable and smooth linear motion in industrial automation systems.

Manufacturer: Hiwin
Type: Linear Guideway Block
Model: HGL30-CA

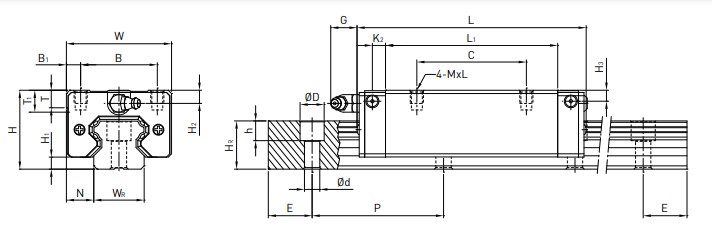

Technical Information

• Size: 30 mm
• Total Height H: 42 mm
• Block Width W: 60 mm
• Block Length L: 97.4 mm
• Block Height (H-H1): 36 mm
• Distances Between Holes: 40, 40 mm
• Rail Height: 26 mm
• Rail Width: 28 mm
• Mounting Bolt for Rail: M8x25
• Series: HG (Low)
• Block Type: L, Square Type
• Load Type: C, Heavy Load
• Block Mounting Type: A, Mounting from Top
• Basic Dynamic Load Rating C: 48.5 kN
• Basic Static Load Rating C‚: 71.87 kN
