Manufacturer: EMMEVB

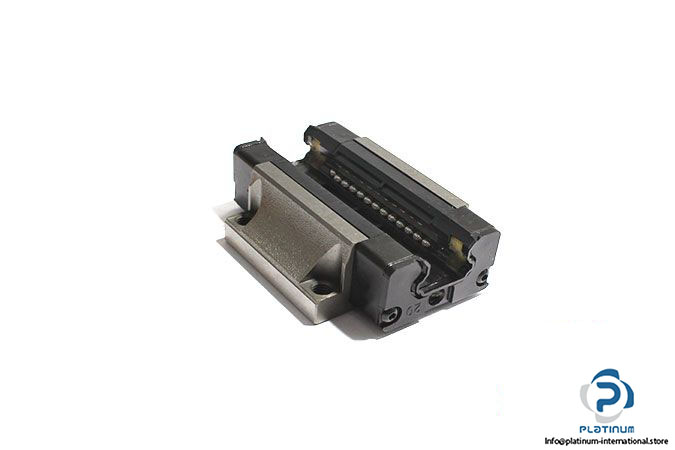

Type: Linear Guideway Block TRH
Model: TRH 20 A
Size: 20 mm
Block Type: Flanged block, Standard height
Preload class: Z1, Light preload
Accuracy class: N
End Cap Type: End cap with Self-lubricant part

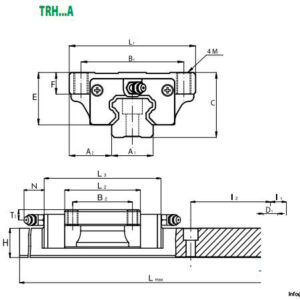

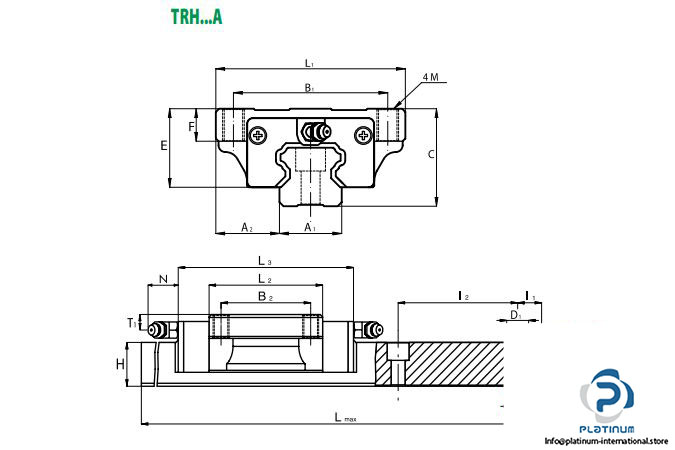

Dimensions
Block Height E: 25 mm
Block Width L1: 63 mm
Block Length L3: 77.8 mm
B1: 53 mm
B2: 40 mm
Weight: 0.43 kg
