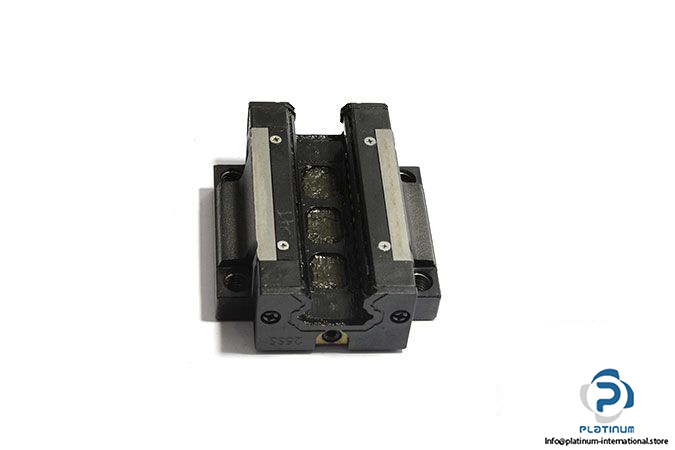

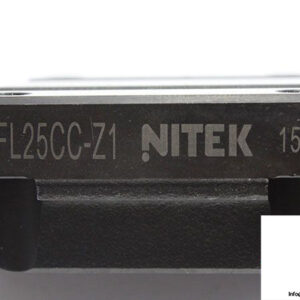

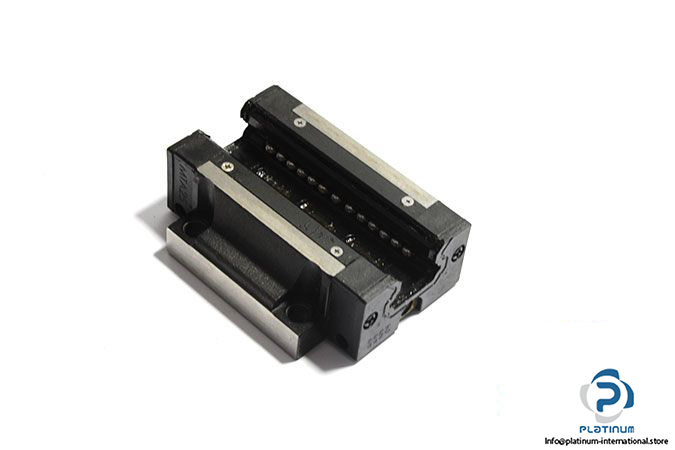

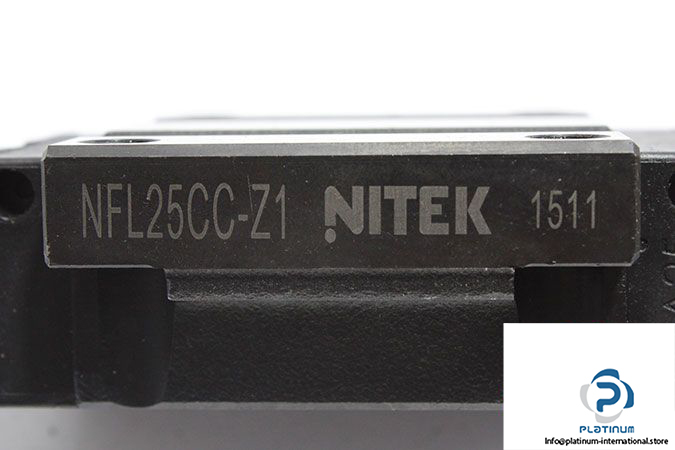

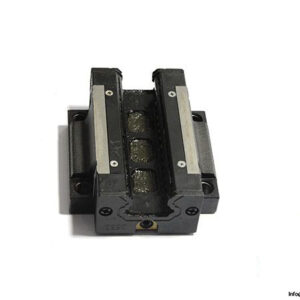

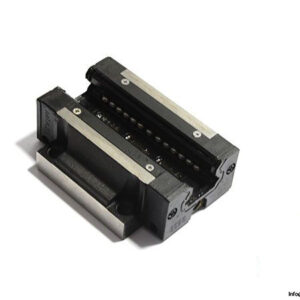

NITEK NFL 25CC Z1 Linear Guide with Recirculating Balls

The NITEK NFL 25CC Z1 is a high-precision linear guide block designed for smooth and accurate motion in industrial machinery. Featuring a flange-type body, Z1 preload class, and durable recirculating ball design, it ensures stability, rigidity, and excellent load capacity for demanding applications.

Manufacturer: NITEK
Type: Linear Guides with Recirculating Balls (NFL)
Model: NFL 25CC Z1
Size: 25 mm
Block Type: Flange Type
Block Mounting Type: From above or below
Preload Class: Z1

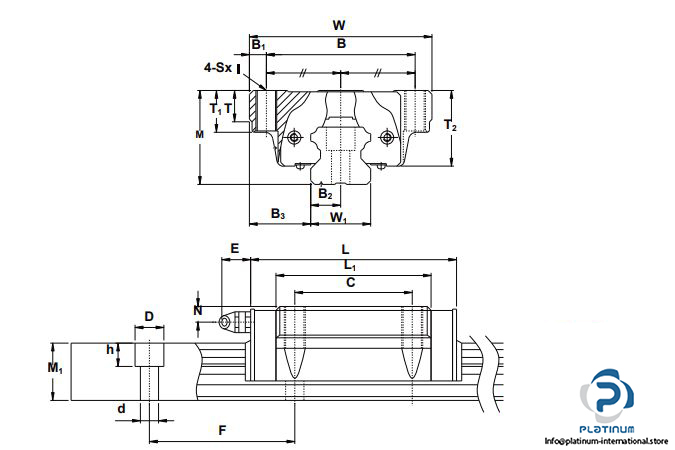

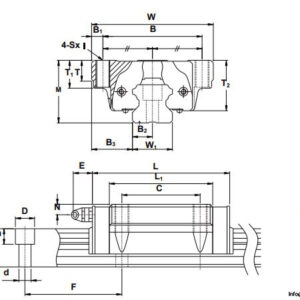

Technical Information

• Dynamic Load Rating (C): 2030 kgf
• Static Load Rating (C0): 3510 kgf
• Total Height (M): 36 mm
• Block Width (W): 70 mm
• Block Length (L): 84 mm
