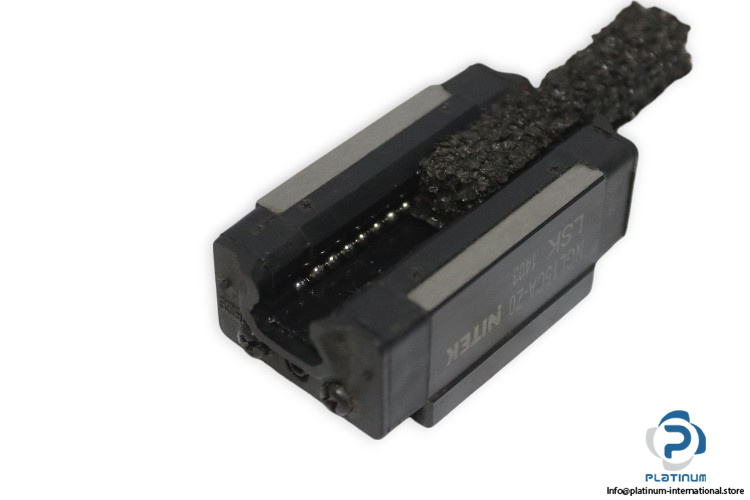

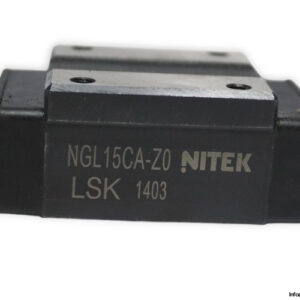

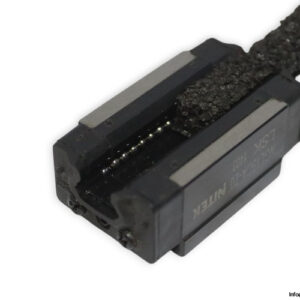

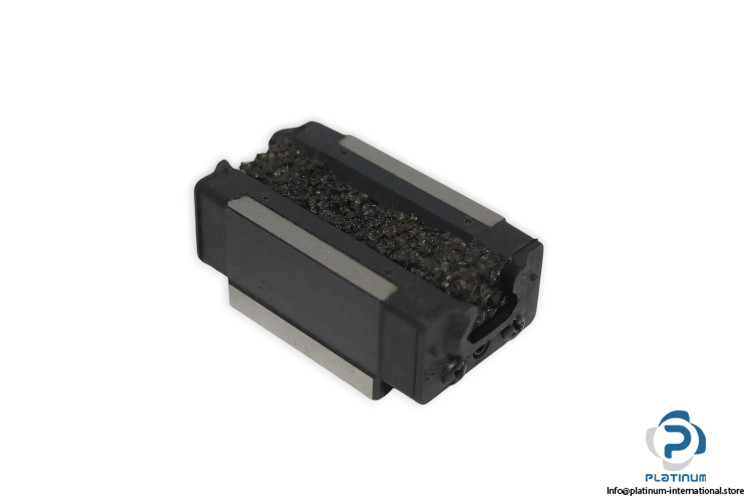

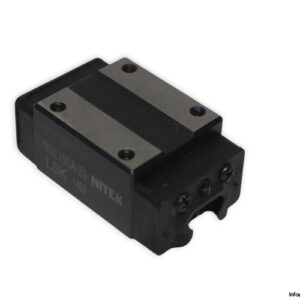

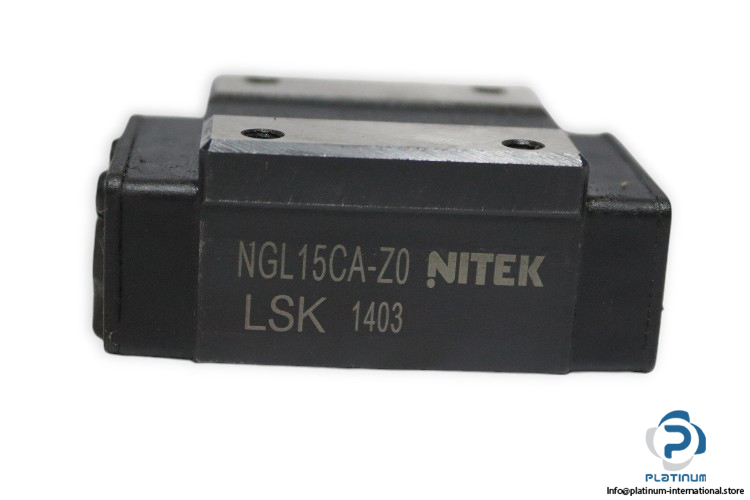

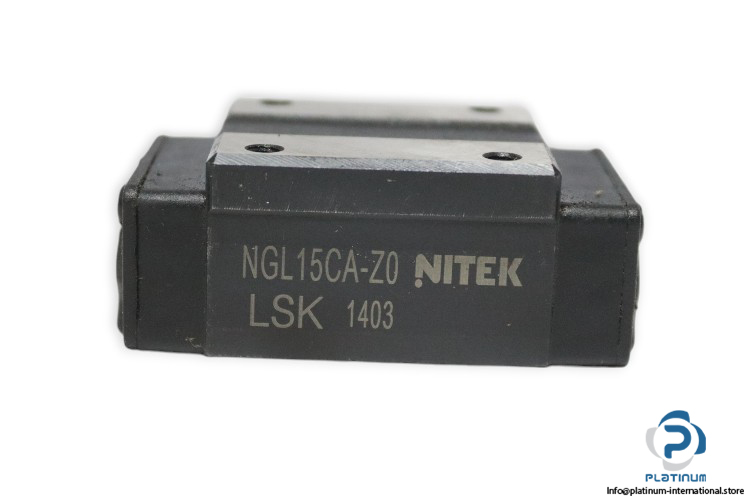

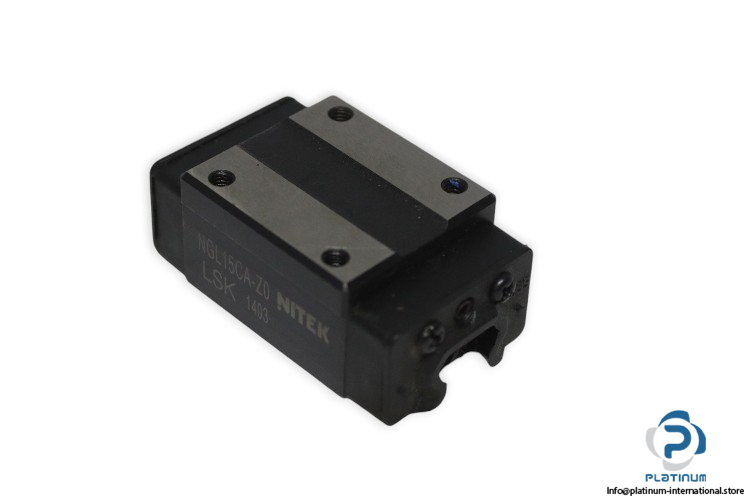

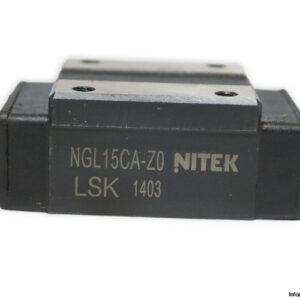

Manufacturer: NITEK
Type: LINEAR RECIRCULATING BALL GUIDEWAY
Model: NGL15CA Z0

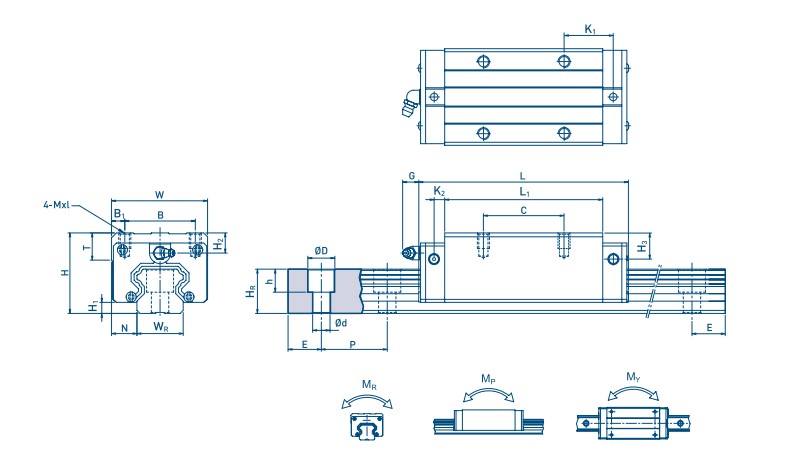

Size: 15 mm
Total Height H: 28 mm
Block Width W: 34 mm
Block Length L: 56.2 mm
Block height (H-H1): 23.5 mm
Basic Load Ratings, Linear:
Dynamic C_r: 11.38 kN
Static C_0r: 16.90 kN
Block Type: G, Tight Type
Load Type: C, High Load
Carriage Mounting: A; from top
Preload: Z0, Low preload
