STAF BGXH35FN LINEAR GUIDEWAY BLOCK

Name: STAF BGXH35FN LINEAR GUIDEWAY BLOCK
SKU: 1057193
Availability: InStock

Manufacturer: STAF
Type: LINEAR GUIDEWAY BLOCK
Model: BGX H35FN

SKU: 1057193 Category: Other Linear Bearings Tags: 35, bearing, bearings, BGX, Guideway, linear, mm, Motion, STAF

In stock: 8 pcs

Low stock

Only 8 items remaining.

Add to quote

Manufacturer: STAF
Type: LINEAR GUIDEWAY BLOCK
Model: BGX H35FN

Size: 35mm

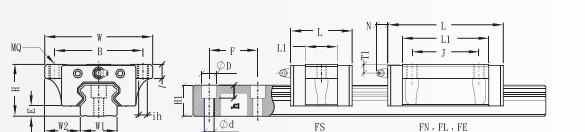

Dimensions
Total Height H: 48 mm
Block Width W: 100 mm
Block Length L: 111.5 mm
Block Hight (H-E): 40.5 mm
B: 82 mm
J: 62 mm
Slide type: BGX, non-caged
Assembly height: H, high assembly
Type and flange: FN, flange/standard
Preload class: Z1, Light preload
Accuracy class: N, normal
Basic Load Ratings:
Dynamic C: 42.4 kN
Static C₀: 81.1 kN

Weight	1,46 kg
Condition	New
Model	BGXH35FN
Type of Product	Linear Guideway Block
Shelf No.	241131
Manufacturer	STAF
