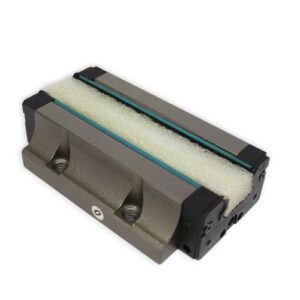

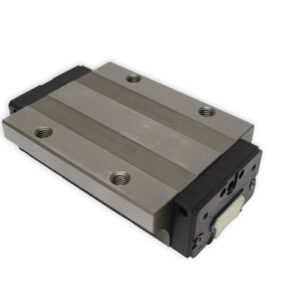

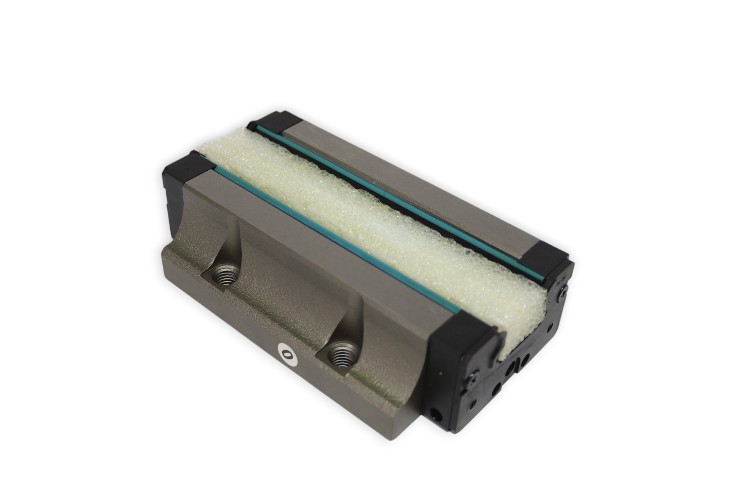

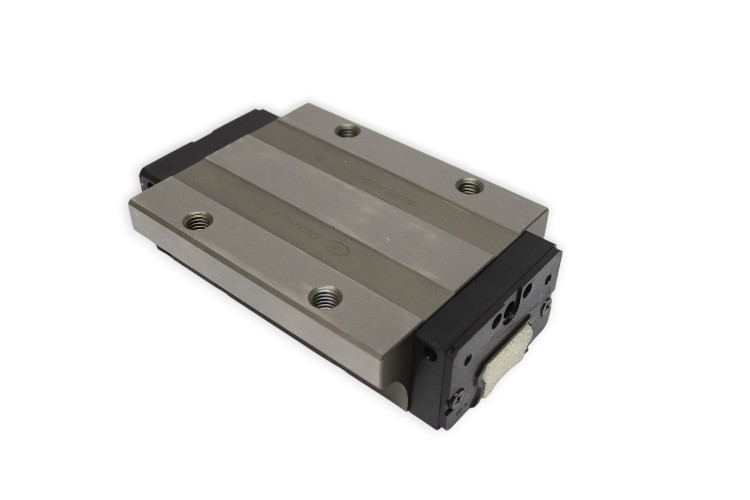

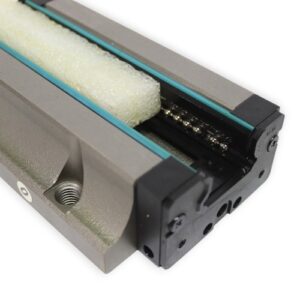

TBI TRH35FE-XN-N-Z0 LINEAR GUIDE BLOCK

The TBI TRH35FE-XN-N-Z0 is a high-performance linear guide block designed for smooth and accurate motion in demanding industrial applications. With a high assembly design, extra-long block, and flange type construction, it ensures stability and reliability in linear guidance systems.

Manufacturer: TBI
Type: Linear Guide Block
Model: TRH35FE-XN-N-Z0

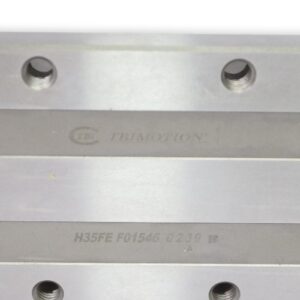

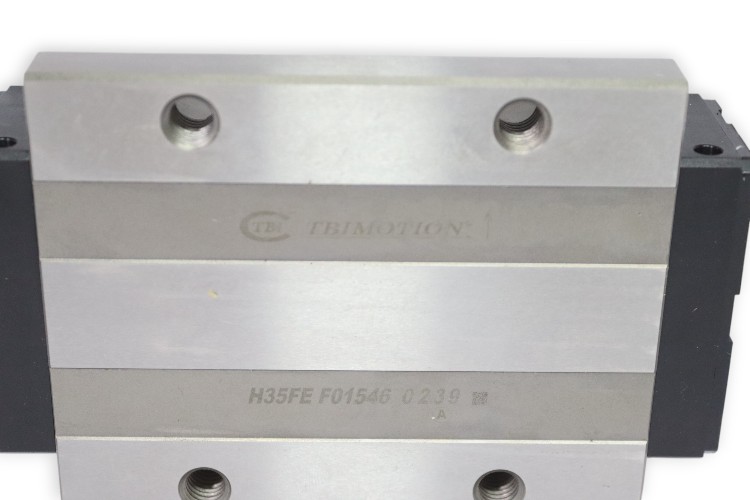

Part No.: H35FE F01546 0239

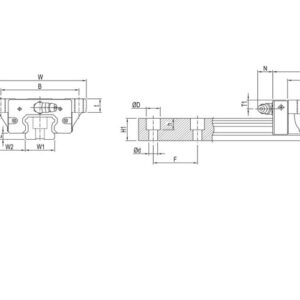

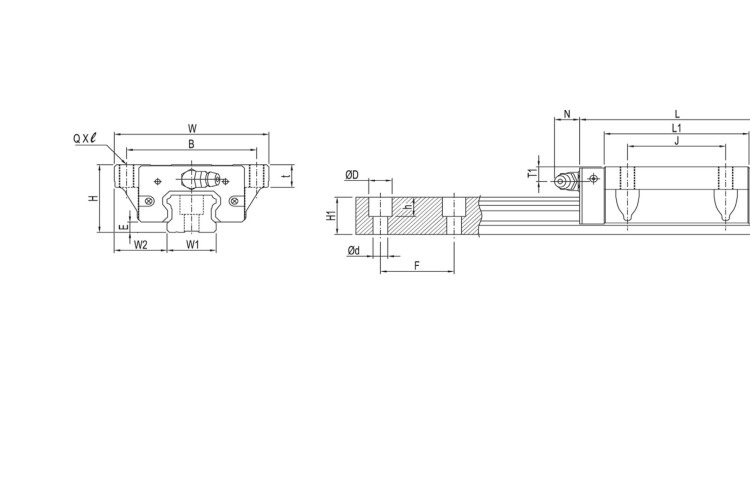

Technical Information

• Size: 35
• Height of System: 48 mm
• Height of Block: 40.5 mm
• Width: 100 mm
• Length: 153 mm
• B: 82 mm
• J: 62 mm
• Dynamic Load Rating: 65400 N
• Static Load Rating: 120400 N
• Block Type: R (Standard)
• Height of Assembly Type: H (High-Assembly)
• Flange Type: F (With Flange)
• Length of Block: E (Extra-Long)
• Accuracy Grade: N (Normal)
• Preload: Z0 (No Preload)
• Accessory Code: XN

Note: We also provide the corresponding rails (guideways) in a wide range of lengths-please ask us if you need rails to match your bearing.
