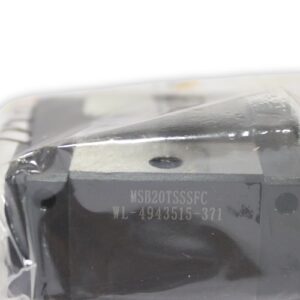

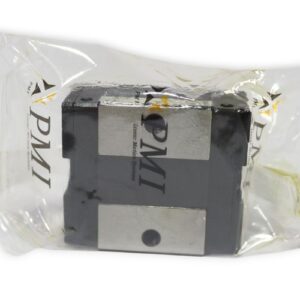

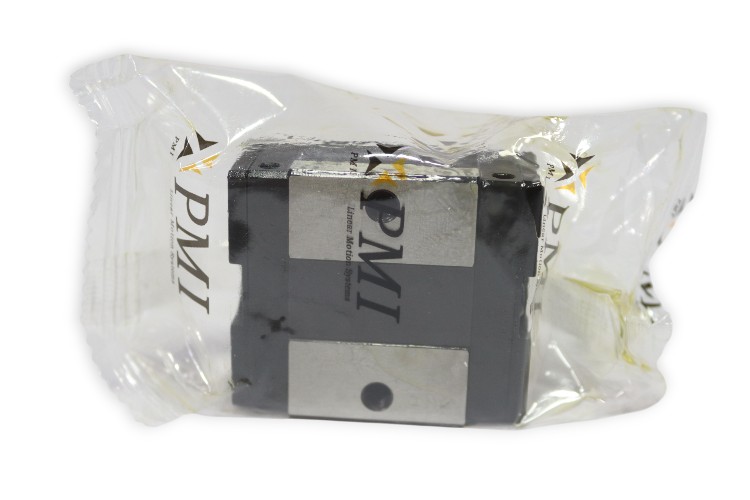

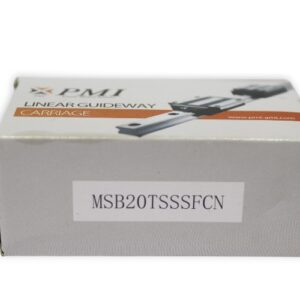

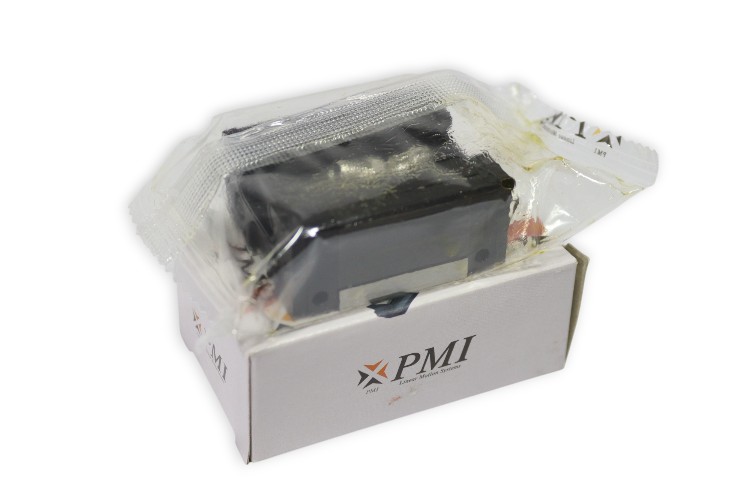

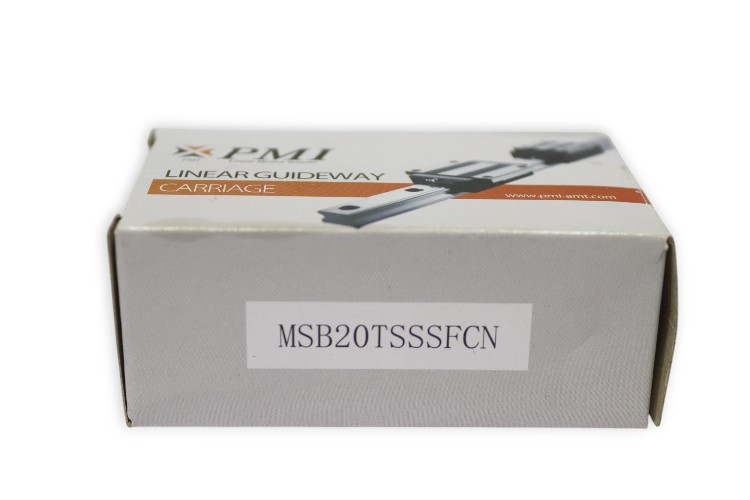

PMI MSB20TSSSFCN LINEAR GUIDEWAY CARRIAGE

The PMI MSB20TSSSFCN is a precision linear guideway carriage designed for smooth and accurate motion in industrial applications. With a compact square type carriage, light preload, and reliable dust protection, it ensures stability and long service life.

Manufacturer: PMI
Type: Linear Guideway Carriage
Model: MSB20TSSSFCN

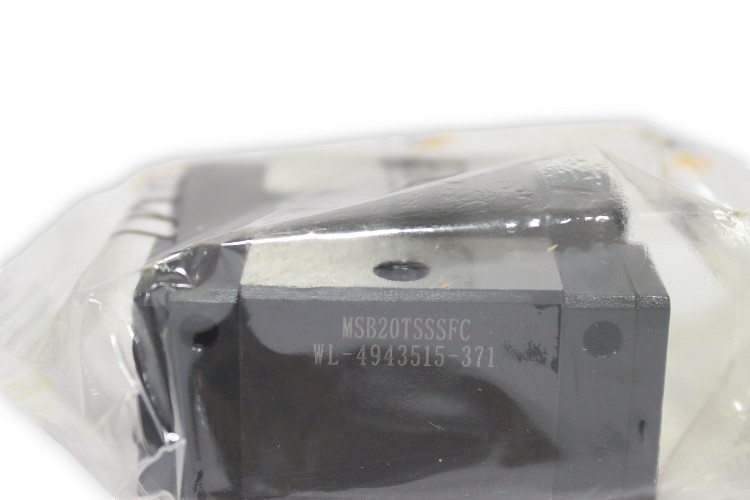

Code: WL-4943515-371

Technical Information

• Size: 20

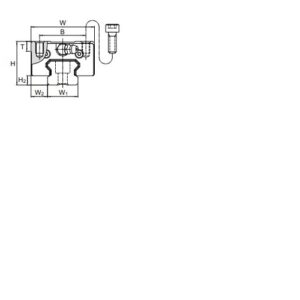

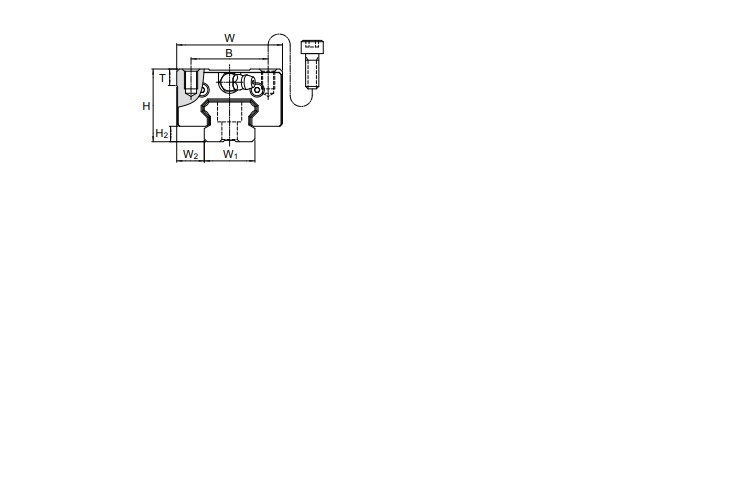

• Height of System: 28 mm
• Height of Block: 22 mm
• Width: 42 mm

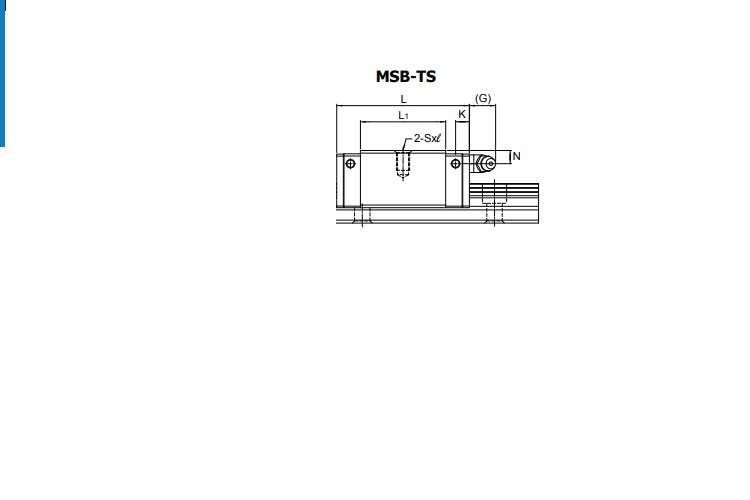

• Length: 48 mm
• B: 32 mm
• Dynamic Load Rating: 9700 N
• Static Load Rating: 14200 N
• Preload: FC (Light preload)
• Accuracy Grade: N
• Carriage Type: TS (Square type)
• Dust Protection Option of Carriage: SS

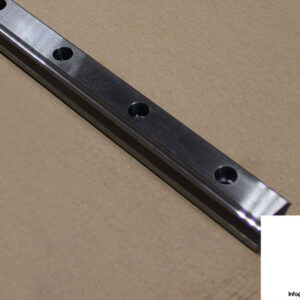

Note: We also provide the corresponding rails (guideways) in a wide range of lengths – please ask us if you need rails to match your bearing
