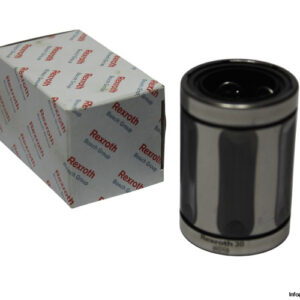

Rexroth Standard Linear Bushing R060103010
The Rexroth Standard Linear Bushing R060103010 offers precision and reliability for linear motion applications. Designed with a close type construction and an integrated wiper seal, it ensures smooth and efficient operation in various industrial environments. With a maximum dynamic load rating of 2980 N and a permissible linear speed of 2.5 m/s, this bushing is an ideal choice for demanding applications.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: Standard Linear Bushing
- MNR: R060103010

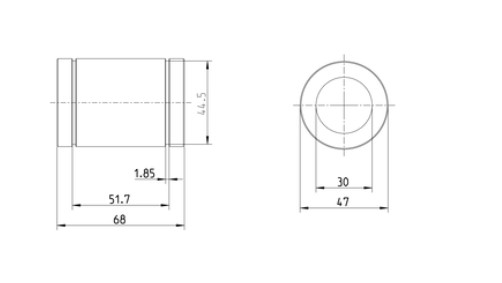

- Shaft Diameter (d0): 30 mm
- Outer Diameter (D): 47 mm
- Length: 68 mm
- C1: 51.7 mm
- C2: 1.85 mm
- D1: 44.5 mm
- Design Type: Close
- Maximum Dynamic Load Rating (C): 2980 N
- Maximum Acceleration (a max): 100 m/s²
- Breakaway Force: 18 N
- Maximum Linear Speed (v max): 2.5 m/s
- Seals: 1 integrated wiper seal
- Permissible Ambient Temperature: -10 / +80 °C
Experience precision and durability with Rexroth’s standard linear bushings, engineered to meet rigorous industrial demands.
