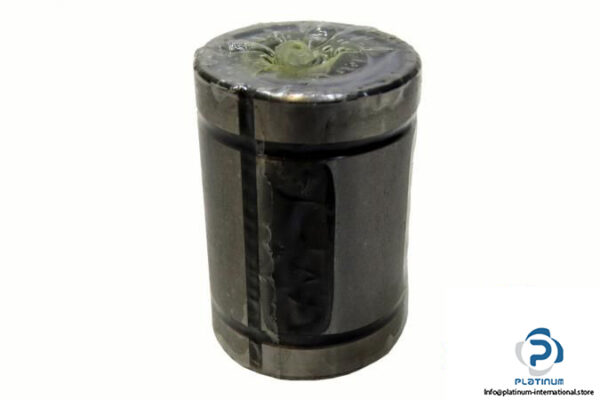

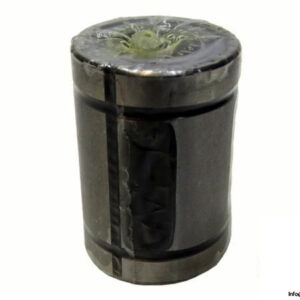

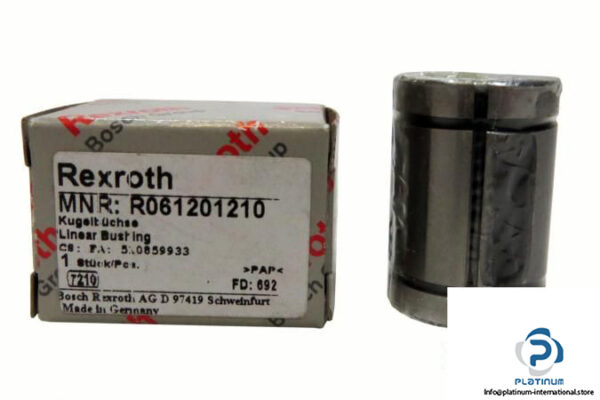

Manufacturer: REXROTH
Type: Standard Linear Bushing
MNR: R0612 012 10

Dimensions:
Shaft diameter d0: 12 mm
Format of linear bushings: E – Adjustable
Rows of Balls: 4
Max. acceleration amax: 100 m/s²
Maximum permissible linear speed vmax: 2.5 m/s
Breakaway force: 6 N
Dynamic Load rating:
C_min: 420 N
C_max: 480 N
Static Load rating:
C_0min: 280 N
C_0max: 400 N
Dimensions:
D: 22 mm
C: 32 mm
C1: 22.6 mm
C2: 1.30 mm
D1: 20.5 mm
E: 1.5 mm
Seals: With two wiper seals
Permissible Ambient Temperature: -10 … +80 °C
