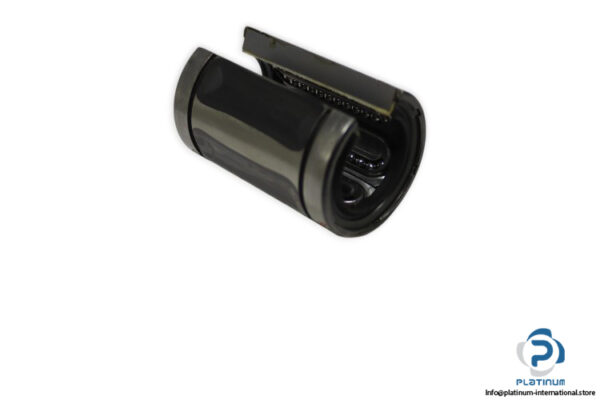

Rexroth Standard Linear Bushing (Open)

The Rexroth Standard Linear Bushing (Open) (MNR: R063203005) is designed for smooth, precise linear motion in various industrial applications. With its open design, fully sealed feature, and high load capacity, it offers reliable performance in both dynamic and static conditions.

Manufacturer: Rexroth

Type: STANDARD LINEAR BUSHING (open)

Model: R063203005

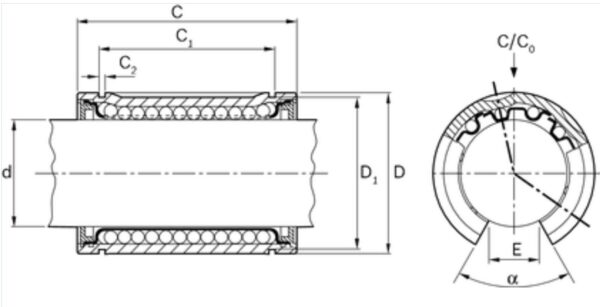

Technical Information:

• Shaft Diameter (d0): 30 mm
• D: 47 mm
• C: 68 mm
• C1: 51.7 mm
• C2: 1.85 mm
• D1: 44.5 mm
• E: 12.5 mm

Design Type: Open

• Dynamic Load Rating (C): 2890 N
• Static Load Rating (C0): 2390 N
• Angle α: 50°

Sealing: Fully sealed

• Maximum Acceleration (a max): 100 m/s²
• Maximum Permissible Linear Speed (v max): 2.5 m/s

Permissible Ambient Temperature: -10 to +80 °C

This Rexroth standard linear bushing offers precise linear motion, exceptional load ratings, and reliable performance for systems that demand durability and smooth operation under various environmental conditions.
