Manufacturer: REXROTH

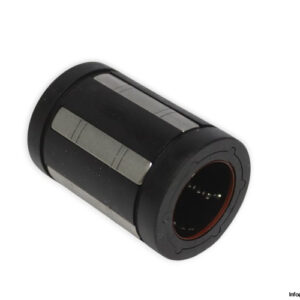

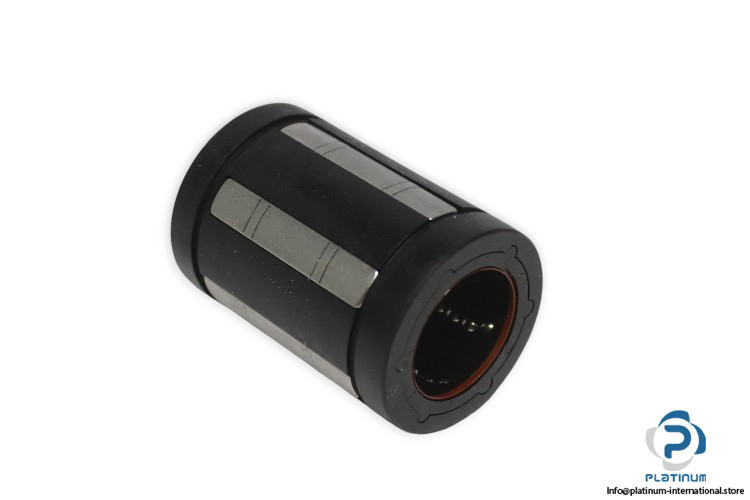

Type: SUPER LINEAR BUSHING
MNR: R0672 225 40

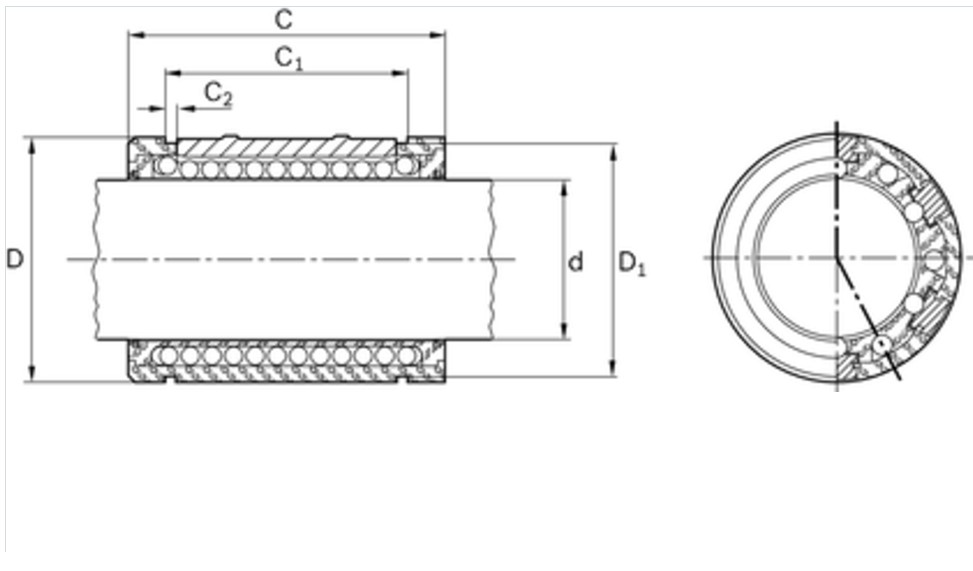

Dimensions:
Shaft diameter d0: 25 mm
Dimensions:
Outer diameter D: 40 mm
Length of linear bushing C: 58 mm
D1: 38.5 mm
C1: 43.7 mm
Format of linear bushings: Closed
Series: Super LB B (no self-alignment feature)
Dynamic Load rating C max: 4820 N
Max. acceleration a max: 150 m/s²
Maximum permissible linear speed v max: 3 m/s
Breakaway force: 4.5 N
Seals: With two integrated wiper seals
Permissible Ambient Temperature: -10 … +80 °C
