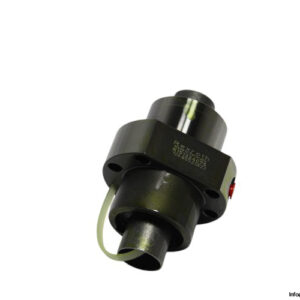

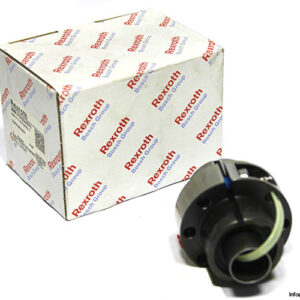

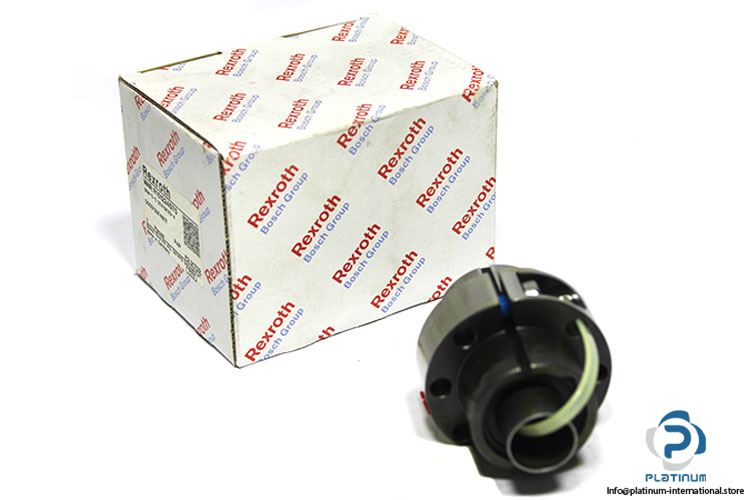

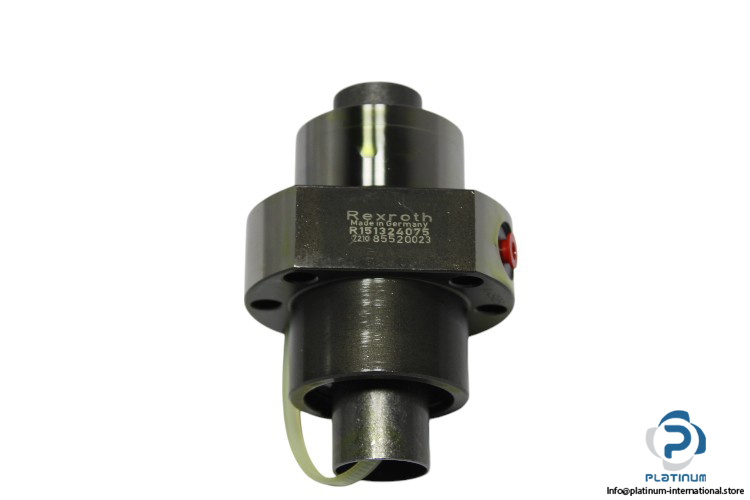

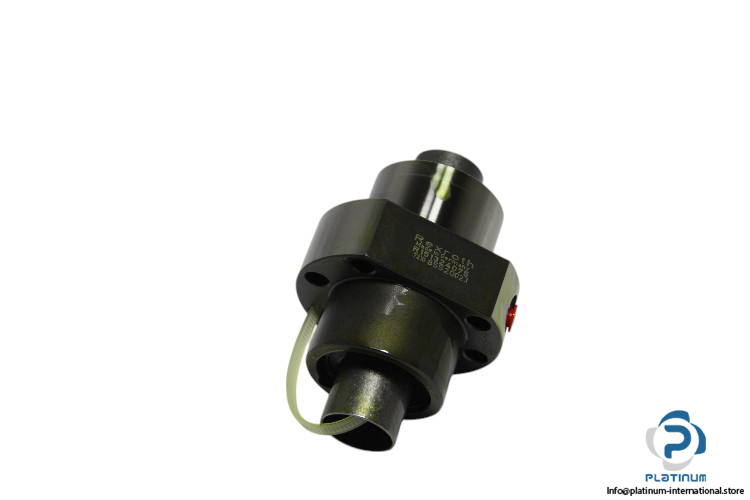

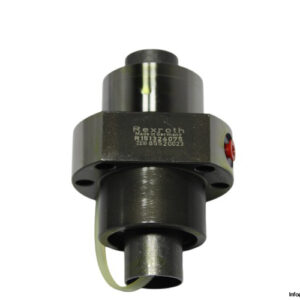

Rexroth Adjustable-Preload Single Nut SEM-E-C (R151324075)

The Rexroth Adjustable-Preload Single Nut SEM-E-C (Model: R151324075) is a high-performance ball screw nut designed for precision linear motion applications. It features an adjustable preload for optimized mechanical performance, ensuring excellent load handling and longevity. Ideal for various industrial applications, it provides high load capacities and speed capabilities.

🔧 Technical Specifications:

• Manufacturer: Rexroth
• Type: Adjustable-Preload Single Nut SEM-E-C

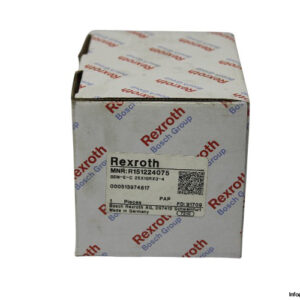

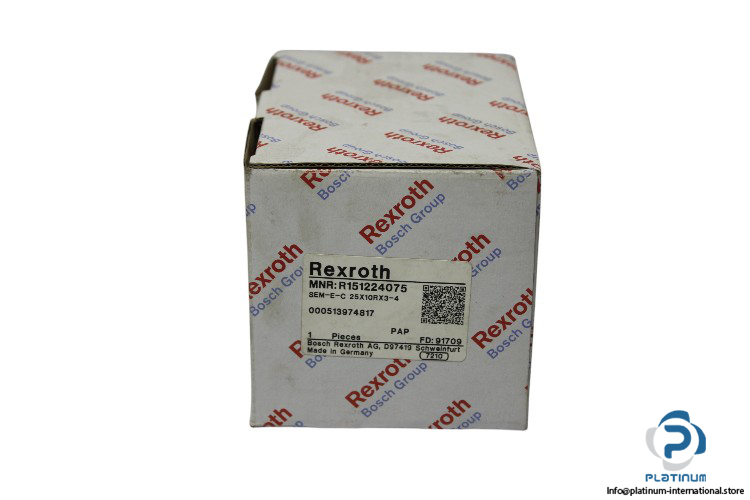

• Model Number (MNR): R151324075
• Size: 25 x 10 R
• Nominal Diameter (d0): 25 mm
• Ball Diameter (DW): 3 mm
• Number of Ball Track Turns (i): 4
• Lead (P): 10 mm

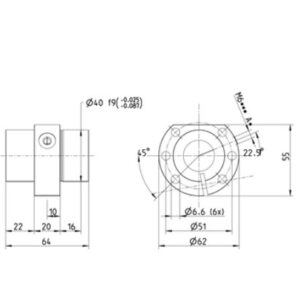

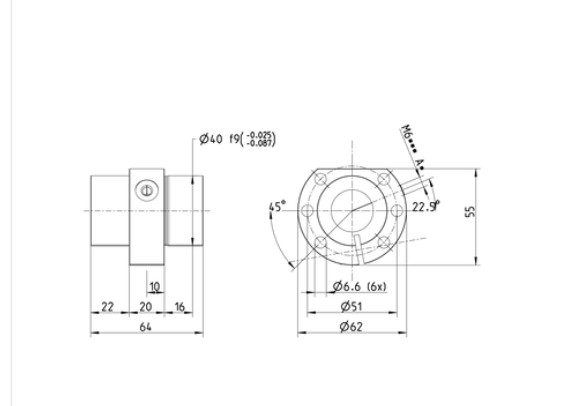

• Nut Diameter: 40 mm
• Flange Diameter: 62 mm
• Flange Width: 20 mm
• Nut Length: 64 mm
• Cutting Flange Width: 55 mm
• Direction of Lead: Right-Hand Thread
• Dynamic Load Rating (C): 18800 N
• Static Load Rating (C0): 27000 N
• Linear Speed (Vmax): 60 m/min

Designed for precision and durability, the Rexroth Adjustable-Preload Single Nut SEM-E-C offers exceptional load ratings and speed for demanding motion control applications. This nut is ideal for a wide range of industrial systems requiring high-performance ball screws.
