Manufacturer: REXROTH

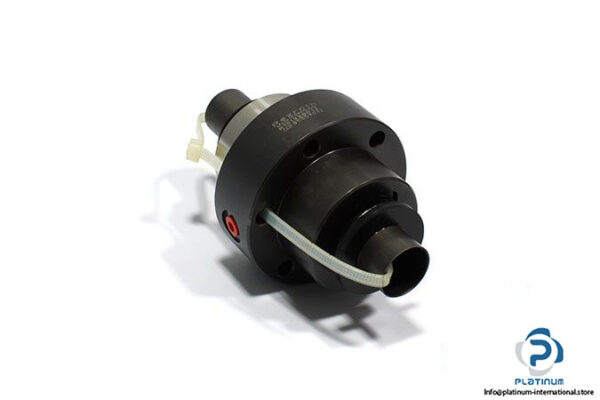

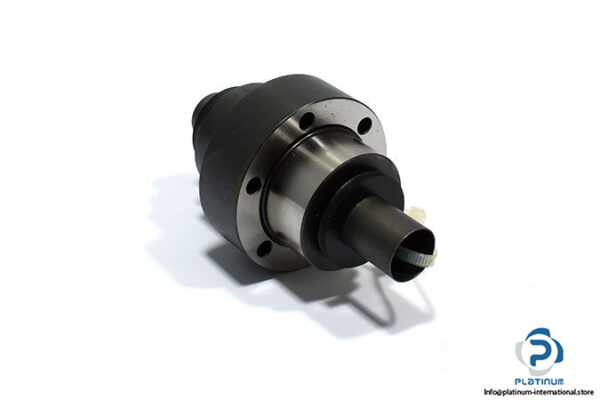

Type: Flanged Single Nut FEM-E-S

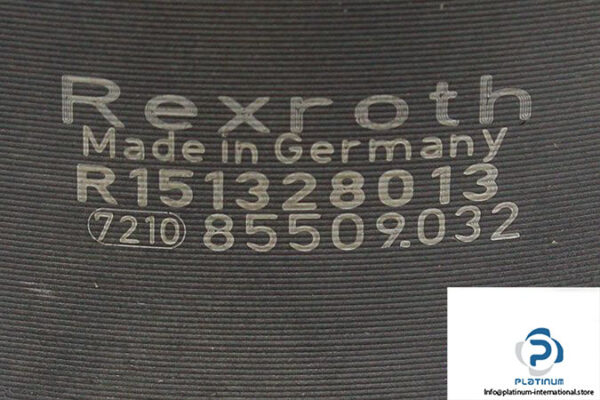

MNR: R1513 280 13

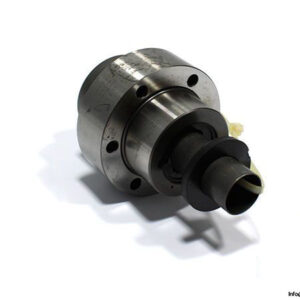

Alternative MNR: R1512 280 13

Size: 25 x 25 R x 3.5 – 2

Nominal Diameter d₀: 25 mm

Ball Diameter D_W: 3.5 mm

Number of ball track turns i: 2

Lead P: 25 mm

Direction of Lead: Right-Hand Thread

Design type: BF2

Dynamic Load Capacity C: 12100 N

Static Load Capacity C₀: 15100 N

Maximum Permissible Speed v_max: 150 m/min

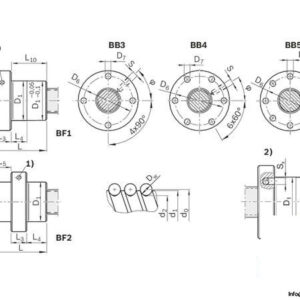

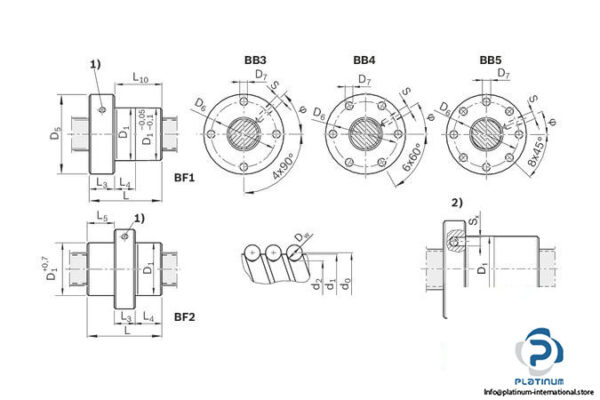

Dimensions:

D₁: 48 mm

D₅: 73 mm

L: 70 mm

Permissible Operating Temperature: -10 … +80 °C
