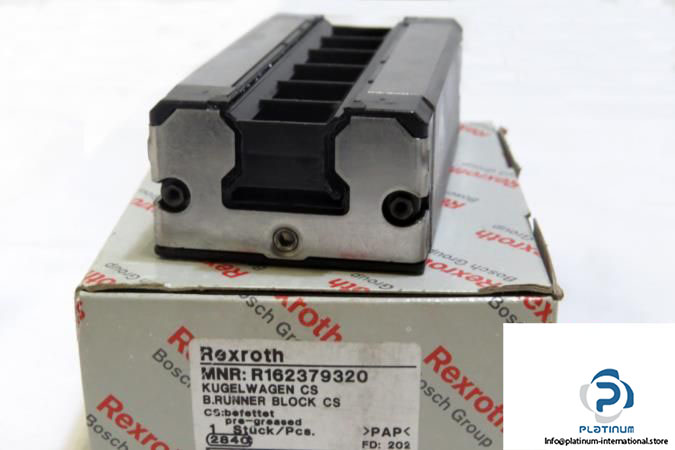

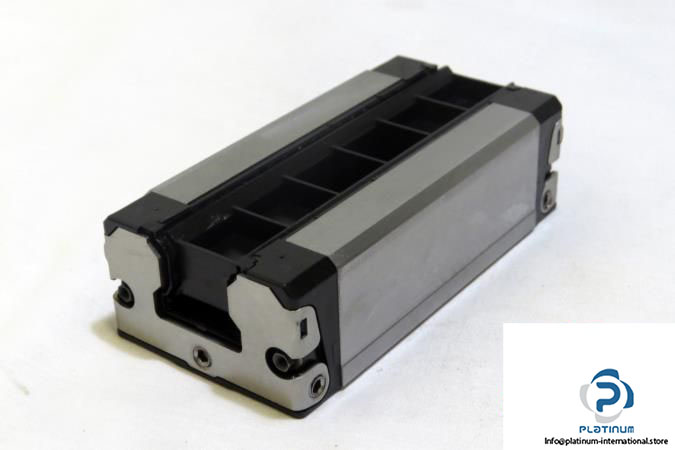

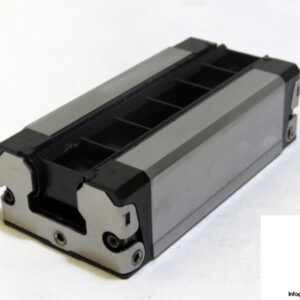

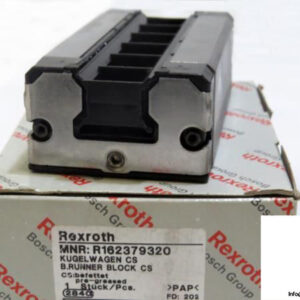

Manufacturer: REXROTH
Type: Ball Runner Block SLS
MNR: R1623 793 20
Manufacturer: REXROTH
Type: Ball Runner Block SLS
MNR: R1623 793 20
Size: 30 mm
Format: SLS – slimline, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel amax: 500 m/s²
Maximum Permissible Speed vmax: 5 m/s
Dynamic Load Capacity C: 46000 N
Static Load Capacity C0 : 66900 N
Dynamic Torsional Moment Load Capacity Mt: 800 Nm
Mt0: 1160 Nm
Dynamic longitudinal moment load capacity ML: 740 Nm
Static longitudinal moment load capacity ML0: 1080 Nm
Accuracy Class: H – Highly accurate
Preload Class: C0 – Without preload (clearance)
Dimensions
Width (A): 60 mm
Length (B): 119.7 mm
Height of system(H): 42 mm
Height of block (H1): 35.35 mm
E1: 40 mm
E2: 60 mm
Admissible Operating Temperature: -10 °C … +80 °C
| Weight | 1,12 kg |
|---|---|
| Condition | New |
| Manufacturer | REXROTH |
| Shelf No. | 231221 |
| Type of Product | Ball Runner Block SLS |
| Model | R162379320 |
