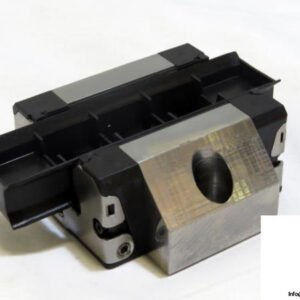

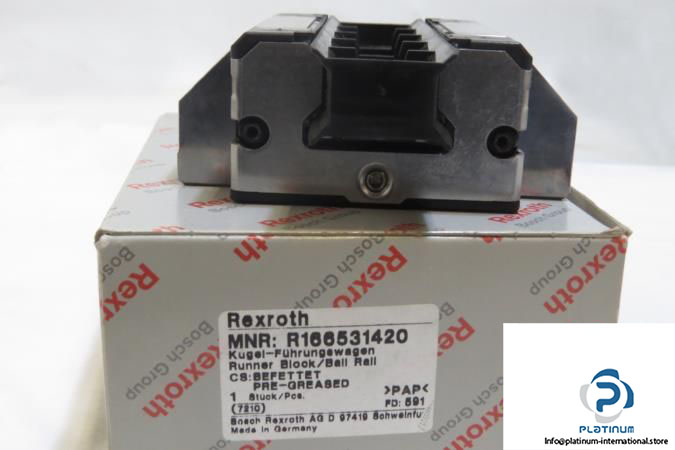

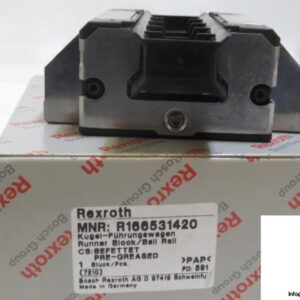

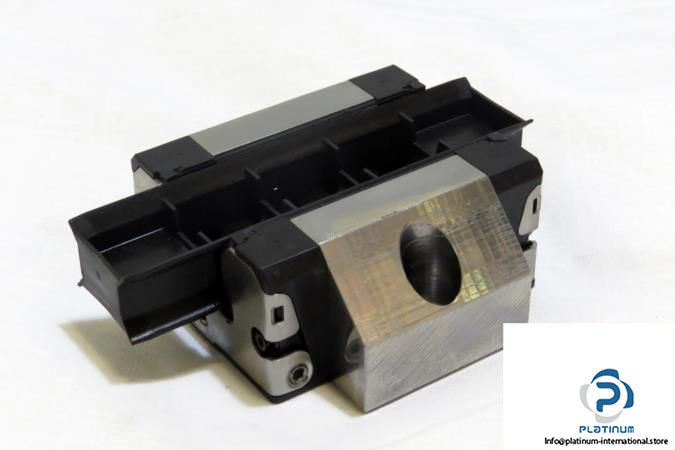

Manufacturer: REXROTH
Type: Ball Runner Block FKS
MNR: R1665 314 20

Size: 35 mm
Format: FKS – flange, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 36600  N
Static Load Capacity C₀ : 49300N
Dynamic Torsional Moment Load Capacity M_t:  790 Nm
Mt0: 1060 Nm
Dynamic longitudinal moment load capacity ML: 340 Nm
Static longitudinal moment load capacity ML0: 460 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Dimensions
Width (A): 100 mm
Length (B): 84.9 mm
Height of system(H): 48 mm
Height of block (H₁): 40.40 mm
E1: 82 mm
Admissible Operating Temperature: -10 °C … +80 °C
