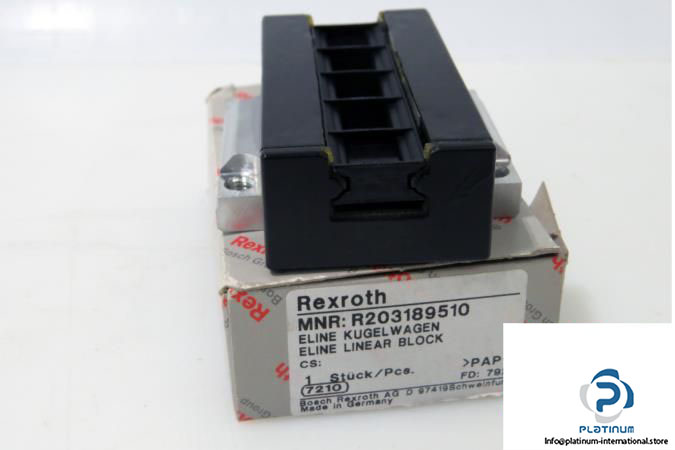

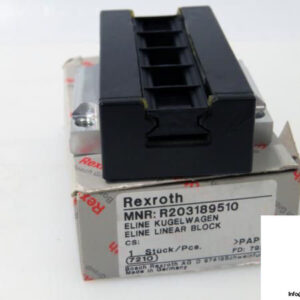

Manufacturer: REXROTH
Type: Ball Runner Blocks
MNR: R2031 895 10
Size: 20 mm
Accuracy class: E
Format: FNS – Flanged, normal, standard height
Dimensions:
AxA1xA2xA3: 63×31.5x20x21.5 mm
BxB1xB2: 85.9×51.5×80.3 mm
HxH1: 30×24.7 mm
Dynamic Load rating C: 11000 N
F max: 4400 N
Moments:
Dynamic Torsional Moment Load Capacity Mt: 101 Nm
Dynamic Torsional Moment Load Capacity Mt max: 40 Nm
Dynamic longitudinal moment load capacity ML: 89 Nm
Dynamic longitudinal moment load capacity ML max: 35 Nm
