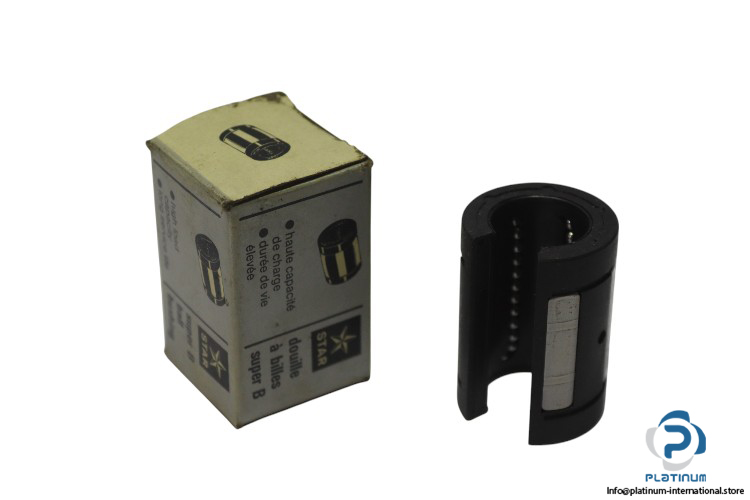

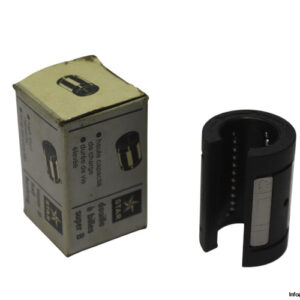

Star Rexroth R067322040 Super Linear Bushing (Open)

The Star Rexroth Super Linear Bushing (Open) is designed for high load capacity and durability in linear motion applications. With a dynamic load rating between 2020 and 2470 N, it ensures precise and efficient movement in demanding environments.

Manufacturer: Star Rexroth

Type: Super Linear Bushing (Open)

Model Number (MNR): R067322040

Technical Information:

• Shaft Diameter (d0): 20 mm
• Outer Diameter: 32 mm
• Length of Linear Bushing: 45 mm
• Rows of Balls: 6
• Dynamic Load Rating: 2020 to 2470 N
• Static Load Rating: 1050 to 1340 N
