INA KWE20 H G4V1 LINEAR RECIRCULATING BALL BEARING

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWE20 H G4 V1

SKU: 1057162 Category: Tags: , , , , , , , ,
Guaranteed Safe Checkout
Add to quote

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWE20 H G4 V1

Size: 20 mm

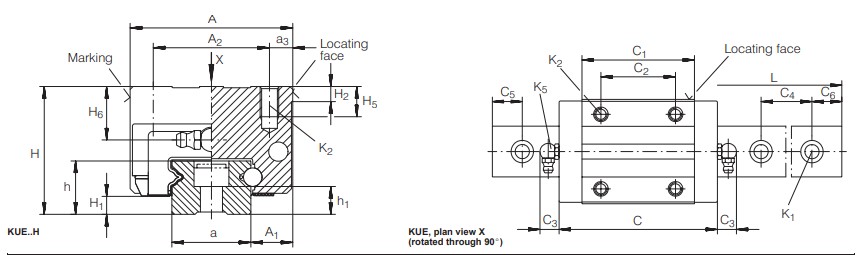

Dimensions
Total Height H: 30 mm
Width carriage A: 44 mm
Overall length carriage C: 70.5 mm
Block Height (H-H1): 25 mm
A1: 12 mm
A2: 32 mm
Carriage design: H, High carriage
Preload: V1
Accuracy: G4
Basic Load Ratings:
Dynamic C: 13.3 kN
Static C0: 18 kN
Static Moment Rating About:
X axis M0x: 190 Nm
Y axis M0Y: 154 Nm
Z axis M0Z: 154 Nm

Weight 0,34 kg
Condition

New
Manufacturer

INA
Type of Product

Linear Recirculating Ball Bearing
Shelf No.

241131
Model

KWE20 H G4V1
