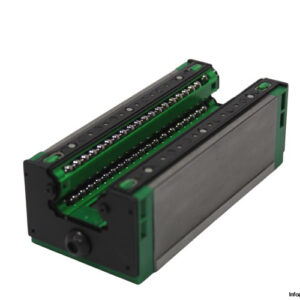

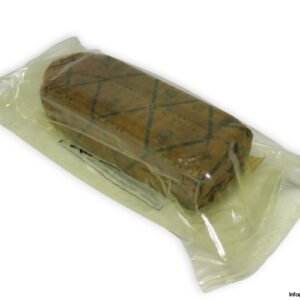

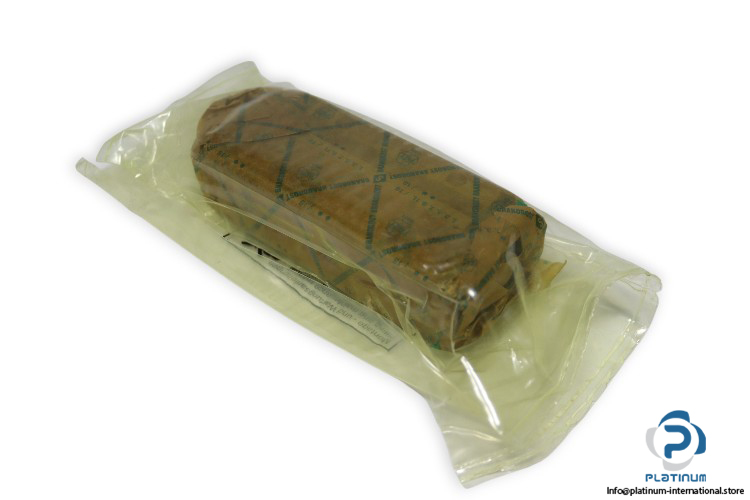

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWSE25 HL V1 G3

Size: 25 mm

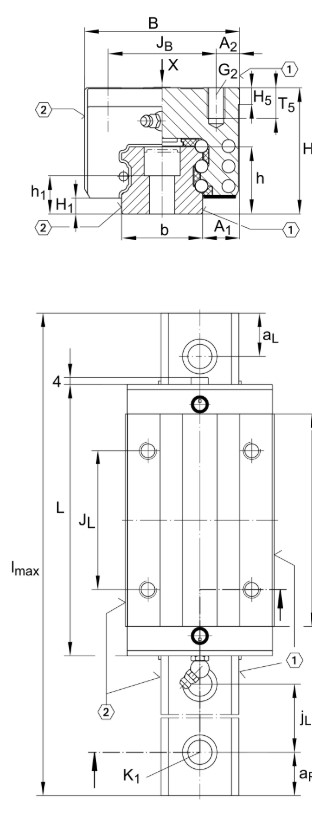

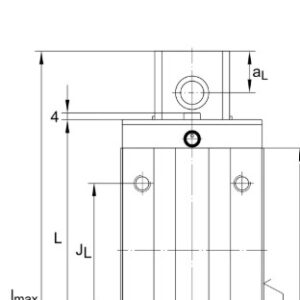

Dimensions
Total Height H: 40 mm
Width carriage B: 48 mm
Overall length carriage L: 104.3 mm
Block Height (H-H1): 34.8 mm
J_B: 50 mm
J_L: 35 mm
Carriage design: HL-High, long carriage
Accuracy Class: G3
Carriage Preload: V1
Basic Load Ratings (Compressive Load):
Dynamic C: 35300 N
Static C₀: 93700 N
Basic Load Ratings (Tensile Load):
Dynamic C: 33000 N
Static C₀: 62000 N
Basic Load Ratings (Lateral Load):
Dynamic C: 35000 N
Static C₀: 65000 N
