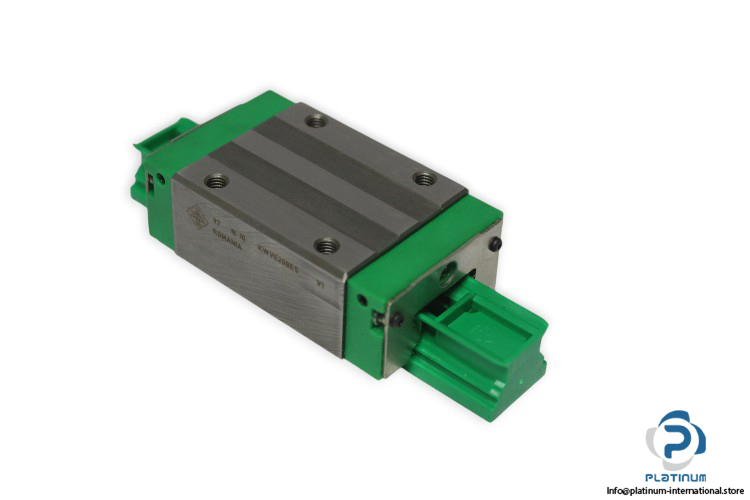

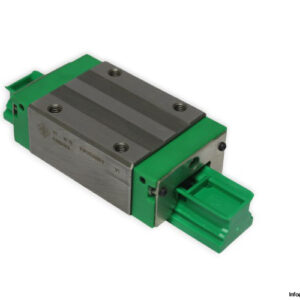

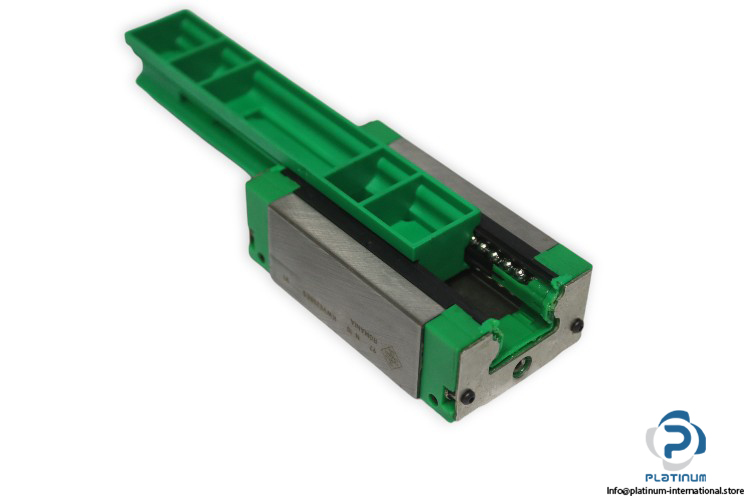

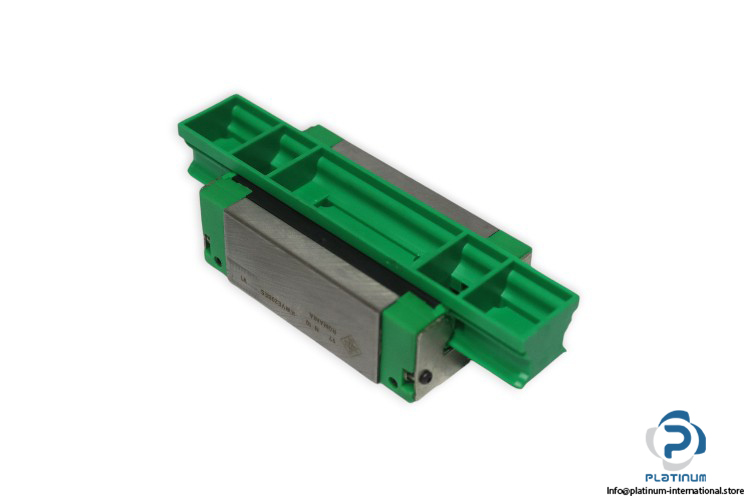

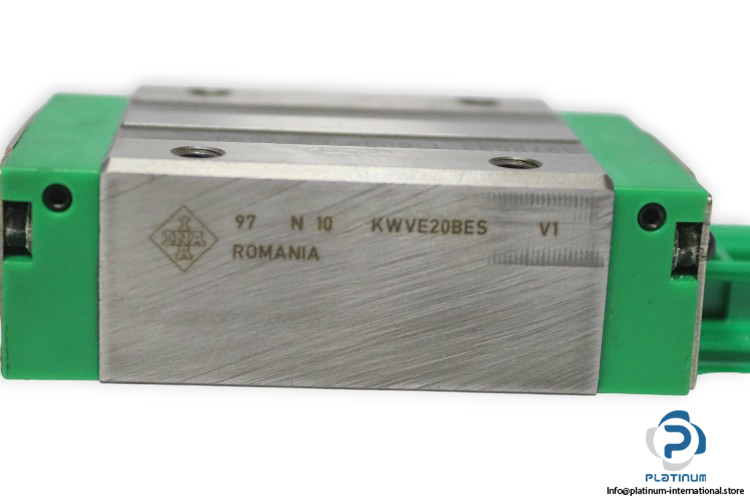

INA KWVE20BES V1 LINEAR RECIRCULATING BALL BEARING

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE20BES-V1

SKU: 1057168 Category: Tags: , , , , , , , ,
Guaranteed Safe Checkout

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE20BES-V1

Size: 20 mm

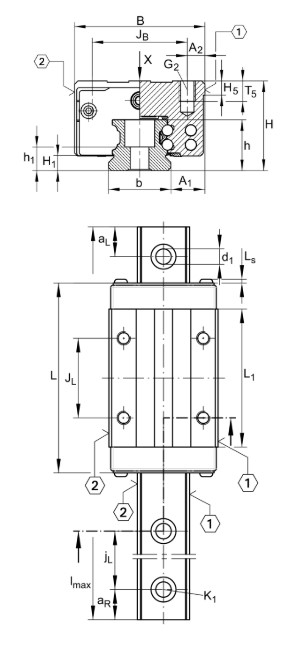

Dimensions
Total Height H: 28 mm
Width carriage B: 42 mm
Overall length carriage L: 71.4 mm
Block Height (H-H1): 23.5 mm
JB: 32 mm
JL: 32 mm
Version: B
Carriage design: ES, Expanded design, narrow carriage
Preload: V1
Basic Load Ratings:
Dynamic C: 13,100 N
Static C0: 27,000 N
Static Moment Rating About:
X axis M0x: 332 Nm
Y axis M0Y: 240 Nm
Z axis M0Z: 240 Nm

Weight 0,3 kg
Condition

New
Manufacturer

INA
Type of Product

Linear Recirculating Ball Bearing
Shelf No.

241131
Model

KWVE20BES V1
