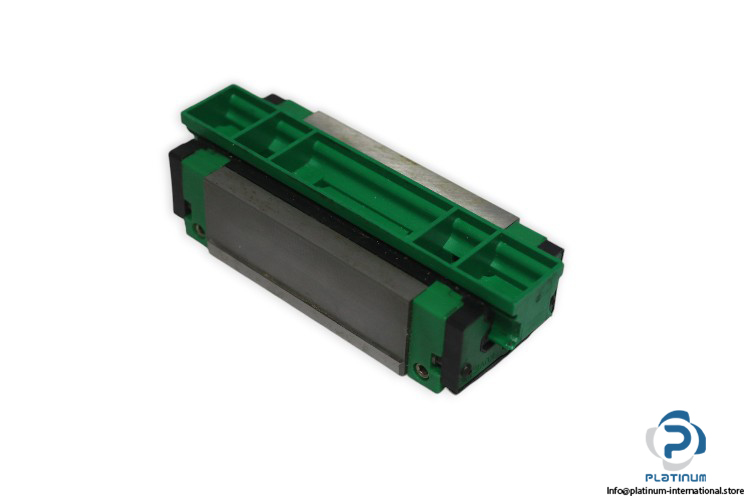

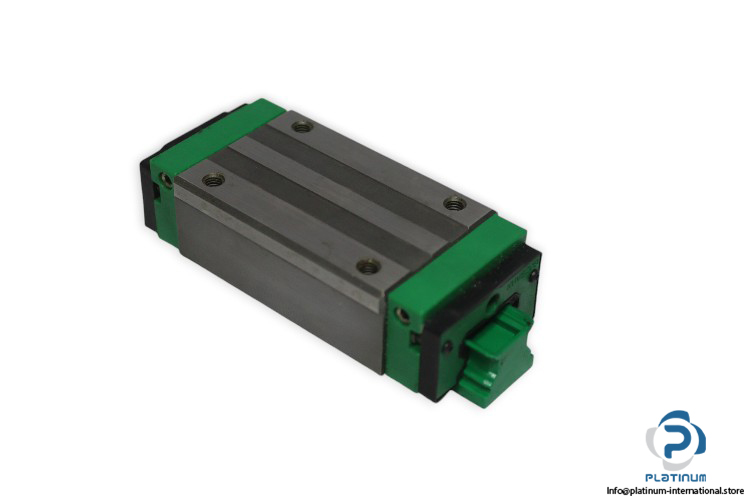

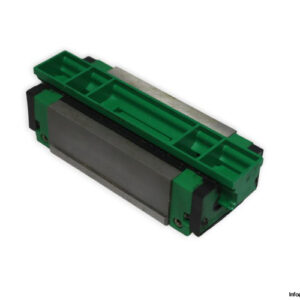

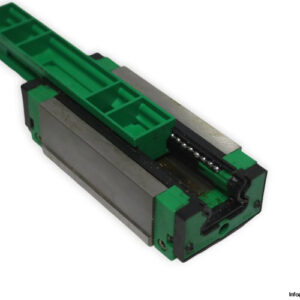

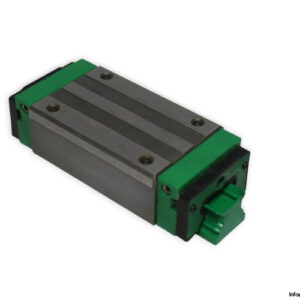

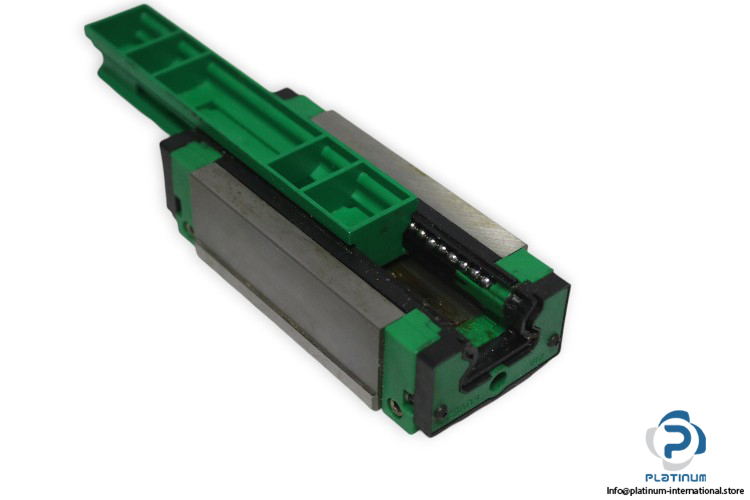

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING

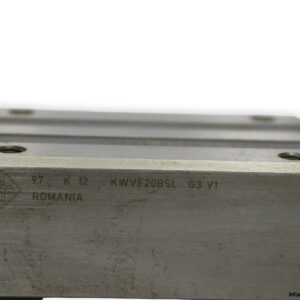

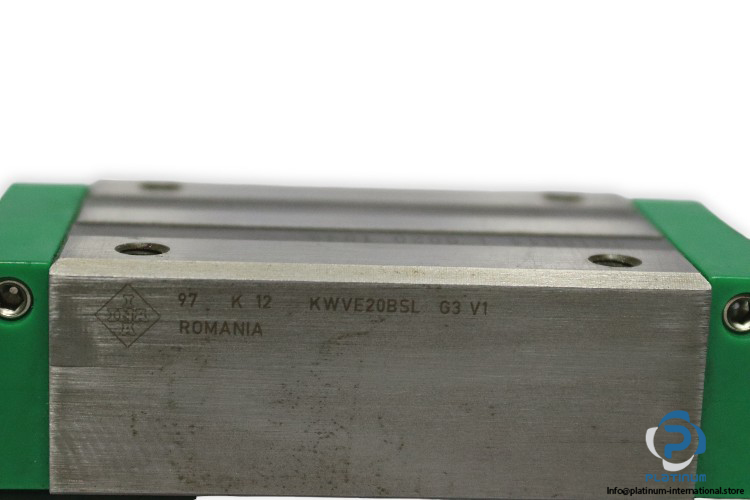

Model: KWVE20BSL G3 V1
Size: 20

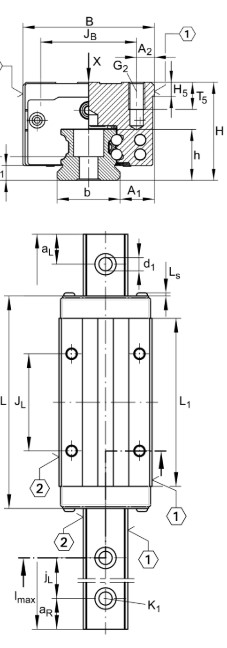

Dimensions
Total Height H: 30 mm
Width carriage B: 44 mm
Overall length carriage L: 88,9 mm
Block Height (H-H1): 25.5 mm
JB: 32 mm
JL: 50 mm
Carriage design: SL, Narrow, long carriage
Version: B
Basic Load Ratings:
Dynamic C: 16200 N
Static C0: 36500 N
Static Moment Rating About:
X axis M0x: 452 Nm
Y axis M0Y: 430 Nm
Z axis M0Z: 430 Nm
Preload: V1
lubrication connector: G3, M5
