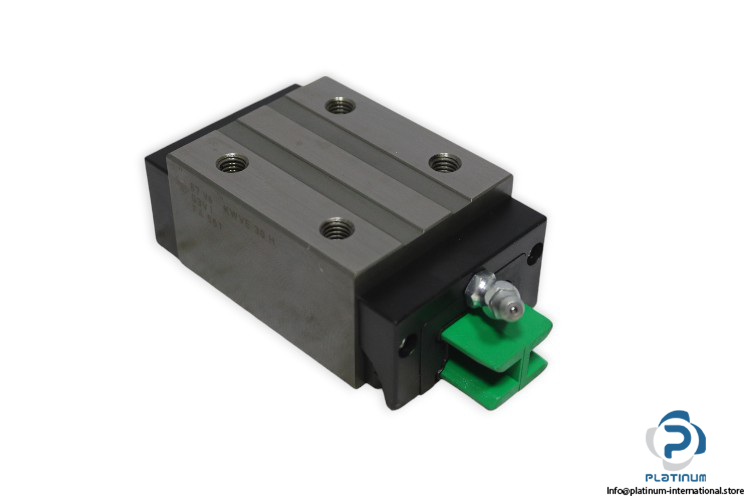

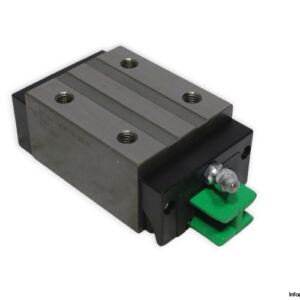

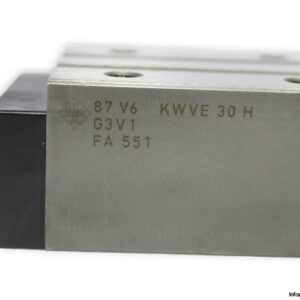

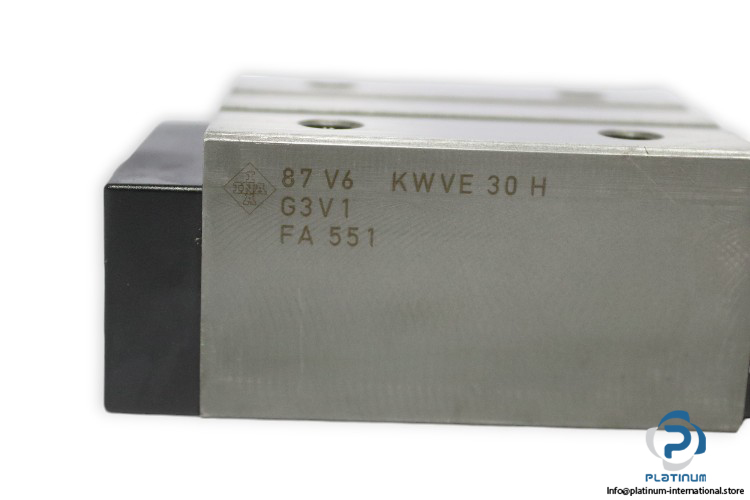

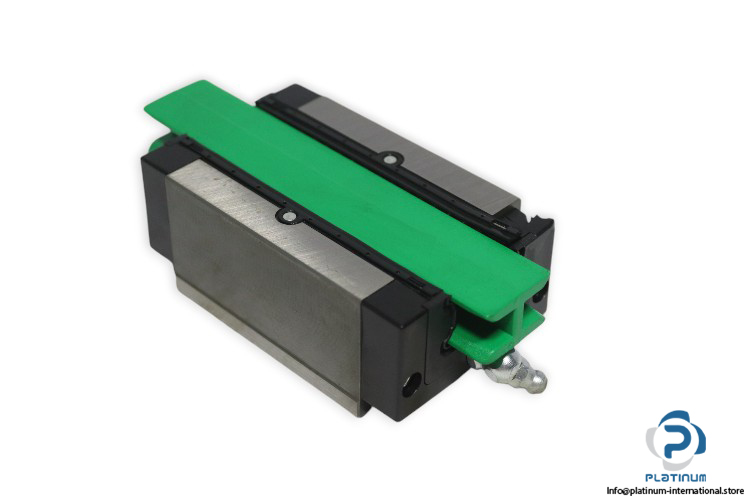

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE30-H
Size: 30 mm

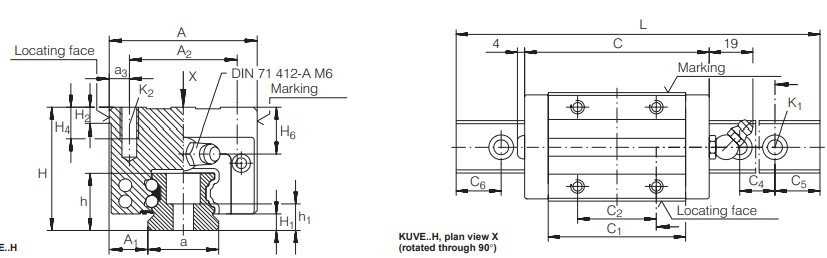

Dimensions
Total Height H: 45 mm
Width carriage A: 60 mm
Overall length carriage C: 97.6 mm
Block Height (H-H1): 38.8 mm
A1: 16 mm
A2: 40 mm
Carriage design: H, High carriage
Basic Load Ratings:
Dynamic C: 27,5 kN
Static C0: 55 kN
Static Moment Rating About:
X axis M0x: 970 Nm
Y axis M0Y: 700 Nm
Z axis M0Z: 700 Nm
