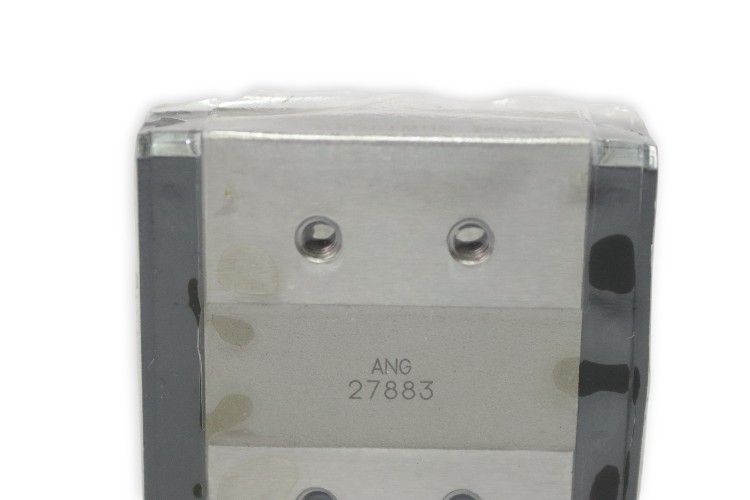

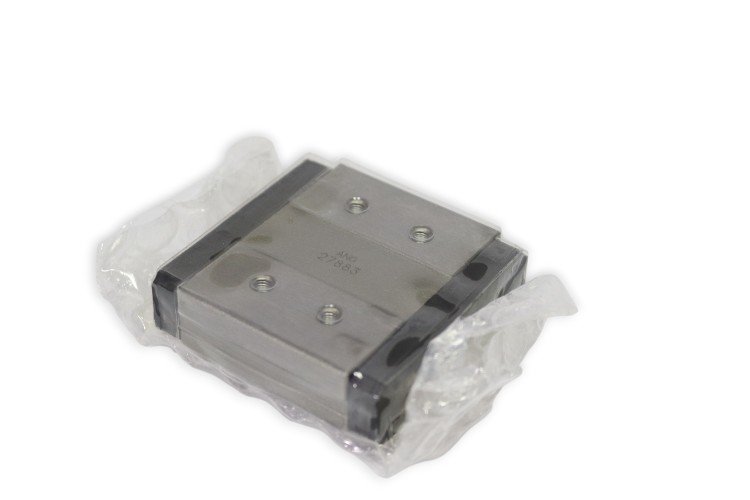

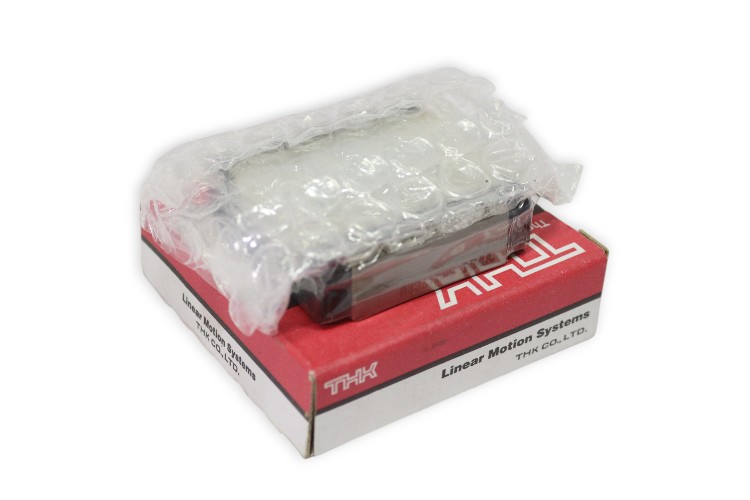

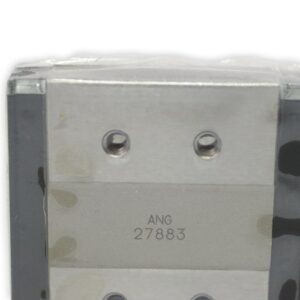

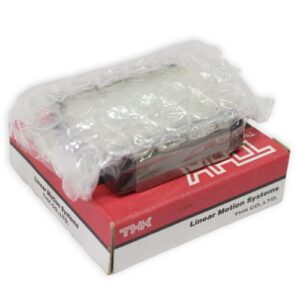

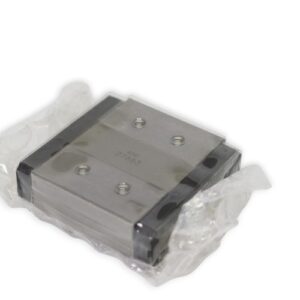

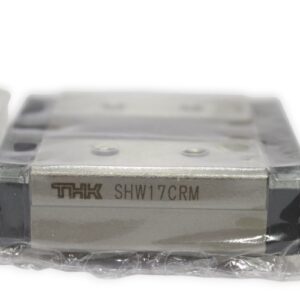

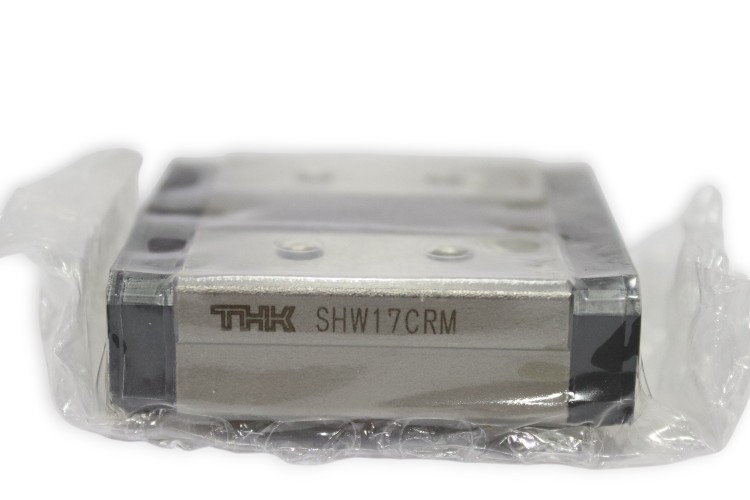

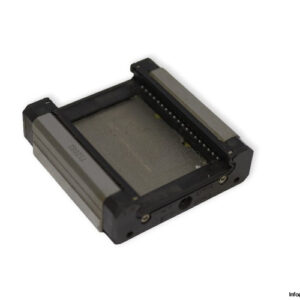

THK SHW17CRM LINEAR BEARING BLOCK

The THK SHW17CRM Linear Bearing Block is a compact and precise linear motion component designed for applications requiring smooth guidance and high load capacity. Made from stainless steel for durability, this bearing block is ideal for precision machinery and automation systems.

Manufacturer: THK
Type: Linear Bearing Block

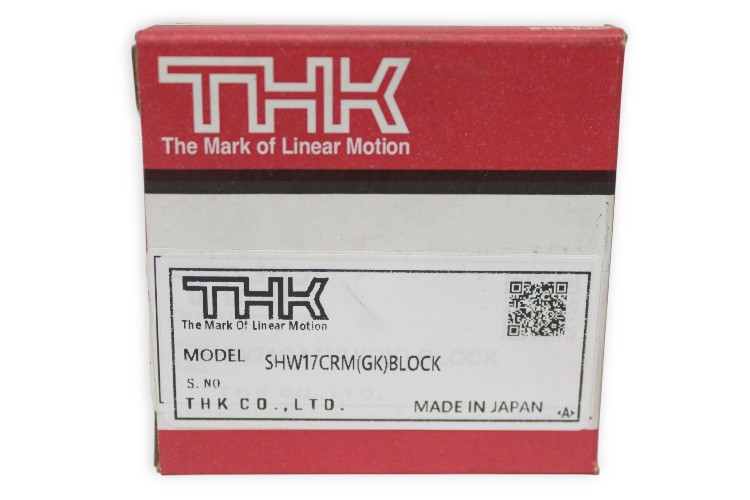

Model: SHW17CRM

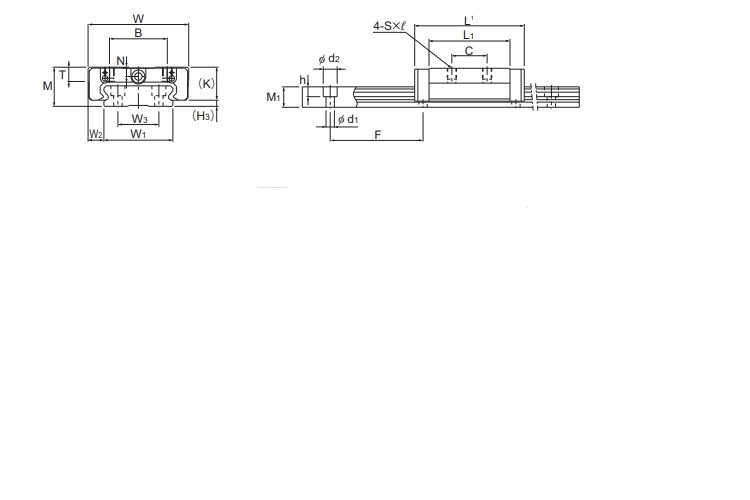

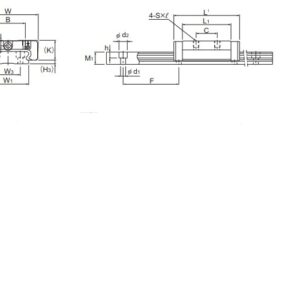

Technical Information

• Size: 17
• Length: 51 mm
• Width: 50 mm
• Height of Block: 14.5 mm
• Height of System: 17 mm
• B: 29 mm
• C: 15 mm
• Dynamic Load: 7.65 kN
• Static Load: 10.18 kN
• Tapped Holes: 4
• Material: M, Stainless steel LM block

Note: We also provide the corresponding rails (guideways) in a wide range of lengths – please ask us if you need rails to match your bearing
