Manufacturer: THK
Type: Linear Guideway Block SR
Model: SR 20 T
Alternative Part no.: SR20W
Size: 20

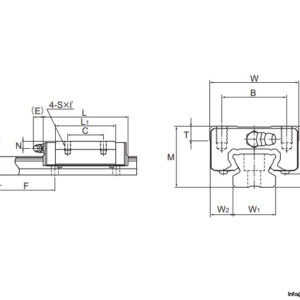

Dimensions
Total Height M: 24 mm
Block Height K: 22 mm
Block Width W: 42 mm
Block Length L: 66.2 mm
L1: 46.7 mm
B: 32 mm
C: 32 mm
Block Type: Square Type
Mounting Hole: 4 tapped holes
Basic Load Ratings:
Dynamic C: 12.5 kN
Static C0: 25.2 kN
New
THK Linear Motion System

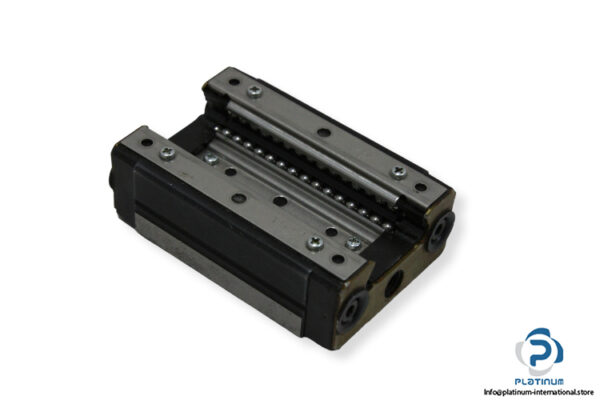

THK SR20T LINEAR BEARING BLOCK
Out of stock
This item is currently unavailable.
