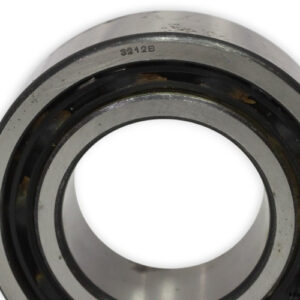

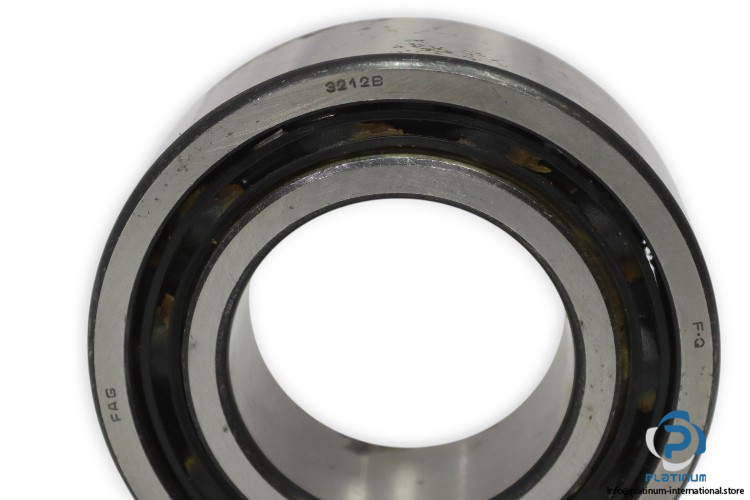

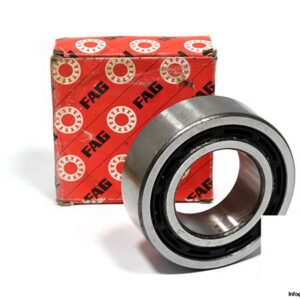

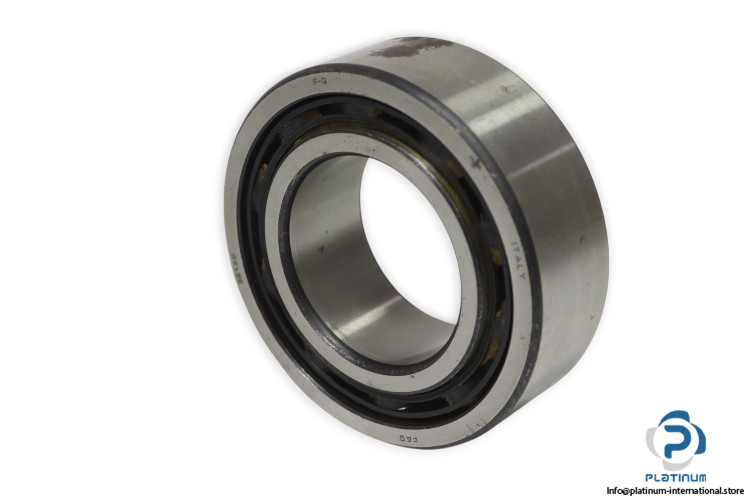

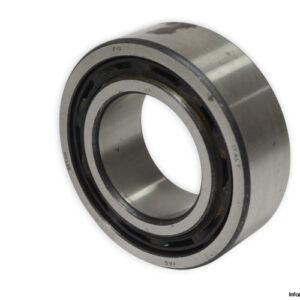

FAG 3212B.TVH DOUBLE ROW ANGULAR CONTACT BALL BEARING

The FAG 3212B.TVH is a high-precision double row angular contact ball bearing designed for applications requiring high load capacity and reliability. With a 30° contact angle and a solid cage made of glass-fiber reinforced polyamide PA66, this bearing offers excellent performance in demanding environments.

Manufacturer: FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3212B.TVH

Technical Information

• Bore Diameter (d): 60 mm
• Outer Diameter (D): 110 mm
• Width (B): 36.5 mm
• Basic Dynamic Load Rating, Radial: 75,000 N
• Basic Static Load Rating, Radial: 64,000 N
• Fatigue Load Limit, Radial: 4,400 N
• Limiting Speed: 6,300 1/min
• Reference Speed: 6,700 1/min
• Contact Angle: 30°
• Cage Design: TVH (Solid cage made of glass-fiber reinforced polyamide PA66)
