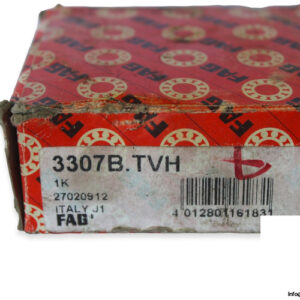

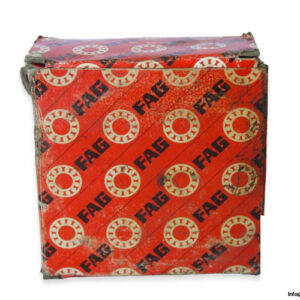

FAG 3307B.TVH DOUBLE ROW ANGULAR CONTACT BALL BEARING

The FAG 3307B.TVH is a high-quality double row angular contact ball bearing designed for applications requiring high load capacity, precision, and smooth operation. Featuring a solid glass-fiber reinforced polyamide cage, it offers durability, reduced friction, and extended service life under demanding conditions.

Manufacturer: FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3307B.TVH

Technical Information

• Bore Diameter (d): 35 mm
• Outer Diameter (D): 80 mm
• Width (B): 34.9 mm
• Contact Angle: 30°
• Basic Load Ratings, Radial: Dynamic Cr: 55000 N / Static C0r: 36500 N
• Fatigue Load Rating: 2550 N
• Limiting Speed: 9000 rpm
• Reference Speed: 8100 rpm
• Cage: TVH, solid cage made of glass-fiber reinforced polyamide PA66
• Operating Temperature: -20°C to +120°C
