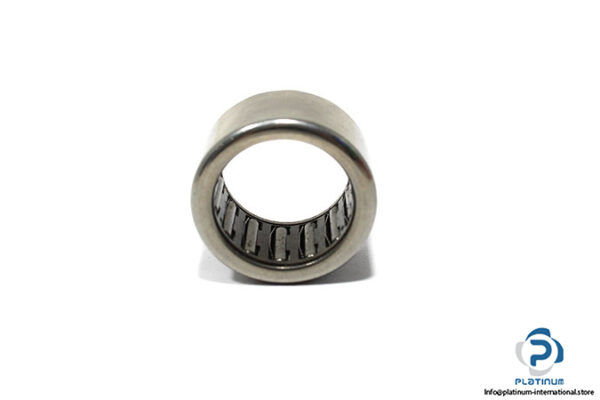

Manufacturer: Schaeffler INA
Type: Drawn cup roller clutch
Model: HF1616
Dimensions
Diameter under rollers Fw: 16 mm
Outer diameter D: 22 mm
Width outer ring C: 16 mm
Minimum chamfer dimension rmin: 0.3 mm
Permissible torque: 20.5 Nm
Limiting speed for rotating shaft: 8500 rpm
Limiting speed for rotating outer ring: 7500 rpm
Lubricant: L564,Grease
Operating temperature: -10 °C…70 °C
