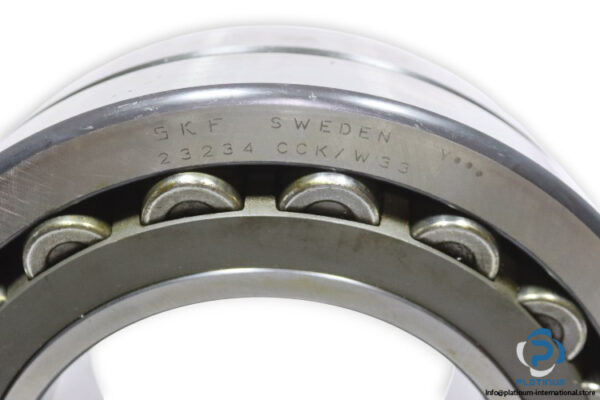

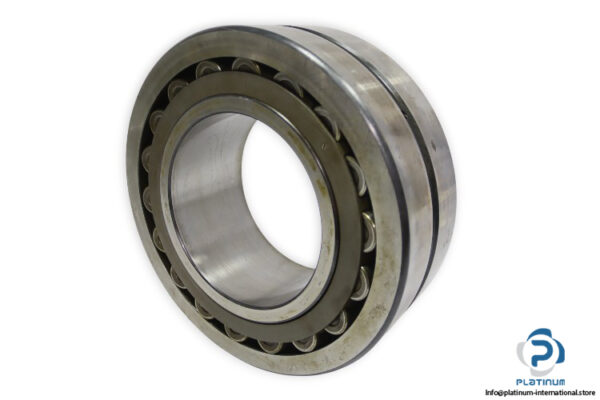

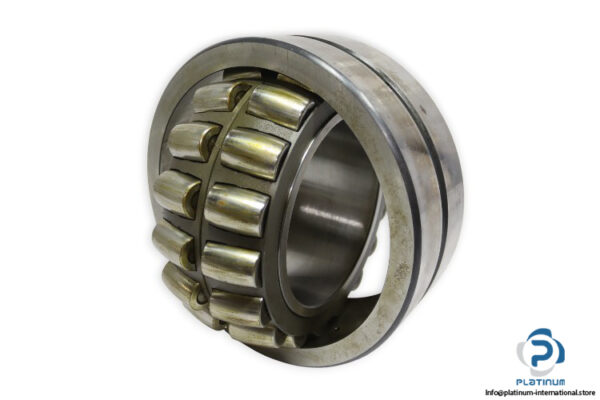

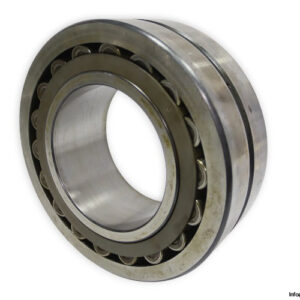

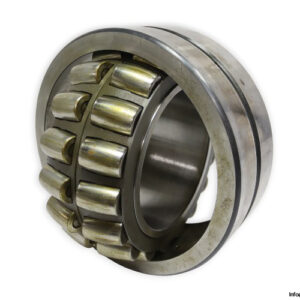

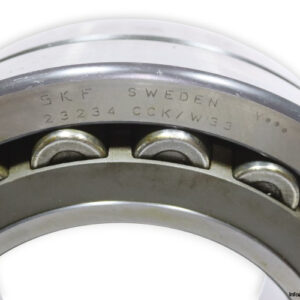

SKF 23234CCK/W33 Spherical Roller Bearing
The SKF 23234CCK/W33 is a high-quality spherical roller bearing designed for superior load capacity, precision, and long service life. It ensures reliable performance under heavy radial and axial loads, making it ideal for demanding industrial applications such as conveyors, crushers, and heavy machinery.
Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 23234CCK/W33
Technical Information
- Bore Diameter d: 170 mm
- Outer Diameter D: 310 mm
- Width: 110 mm
- Basic Dynamic Load Rating Cr: 1472 kN
- Basic Static Load Rating C0r: 1930 kN
- Fatigue Load Limit Pu: 173 kN
- Reference Speed: 1400 r/min
- Limiting Speed: 2000 r/min
- Bore Type: K, tapered 1:12
- Cage: Sheet Metal
- Design: CC, features plus optimized internal design
- Lubrication: W33, 3 lubrication holes and groove on the outer ring
This bearing is designed to handle misalignment and shock loads while maintaining low friction and heat generation. It offers excellent performance in applications with heavy radial and axial loads, even under severe conditions.
Recommendation: For optimal performance, use this bearing with high-quality SKF lubrication systems or compatible bearing housings. Consider pairing it with advanced monitoring sensors to ensure extended bearing life and reduced maintenance downtime.
