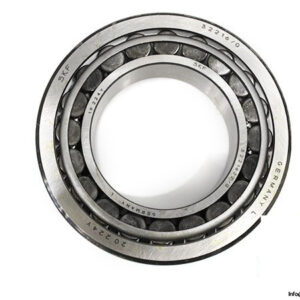

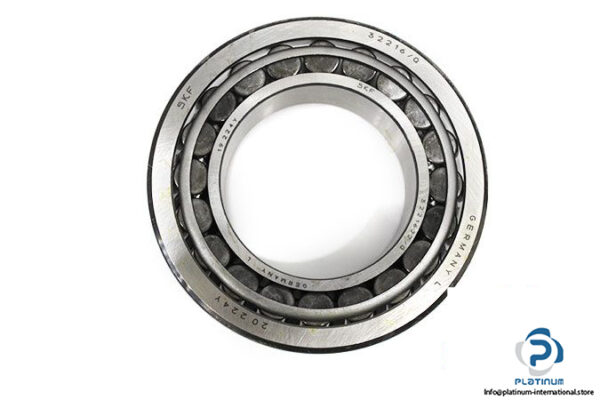

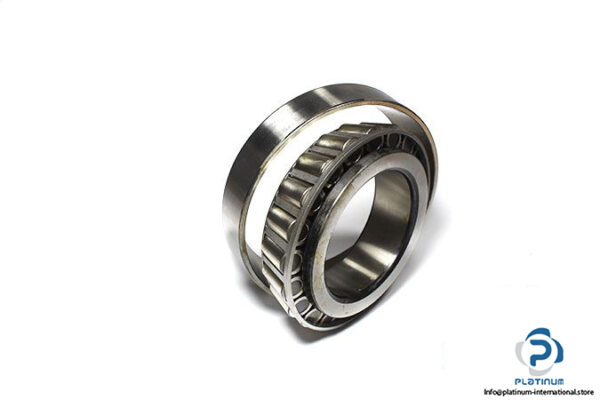

SKF 32216/Q Single Row Tapered Roller Bearing
The SKF 32216/Q is a high-quality single row tapered roller bearing designed to handle combined radial and axial loads with precision. Its robust construction and optimized geometry ensure durability and reliability in demanding applications such as gearboxes, transmissions, and heavy industrial machinery. With excellent speed capability and strong load ratings, it provides long service life and consistent performance.
- Manufacturer: SKF
- Type: Single Row Tapered Roller Bearing
- Model: 32216/Q
Technical Information
- Bore Diameter (d): 80 mm
- Outer Diameter (D): 140 mm
- Width, Inner Ring: 33 mm
- Width, Outer Ring: 28 mm
- Total Width: 35.25 mm
- Contact Angle: 15.642°
- Basic Dynamic Load Rating C: 228 kN
- Basic Static Load Rating C0: 245 kN
- Fatigue Load Limit: 28.5 kN
- Reference Speed: 3800 r/min
- Limiting Speed: 4500 r/min
- Cage: Sheet Metal
