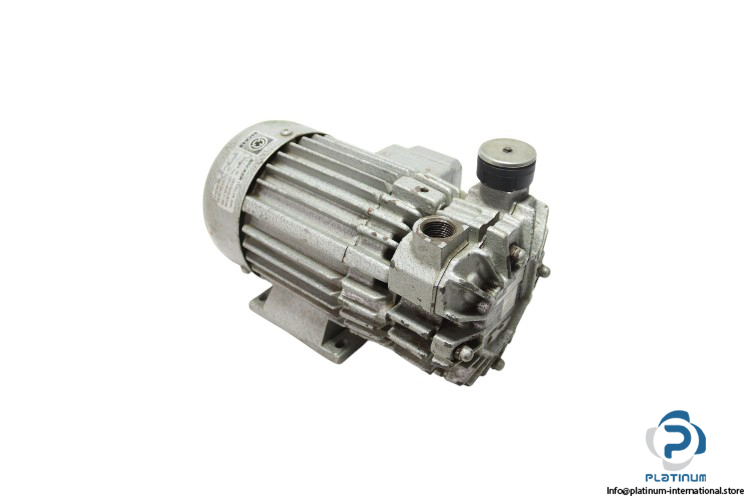

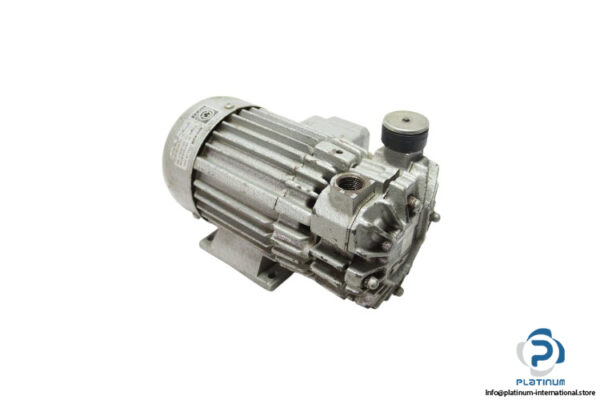

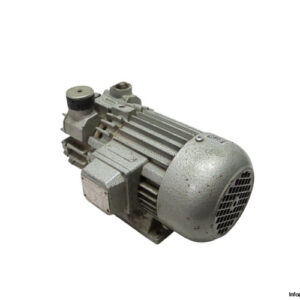

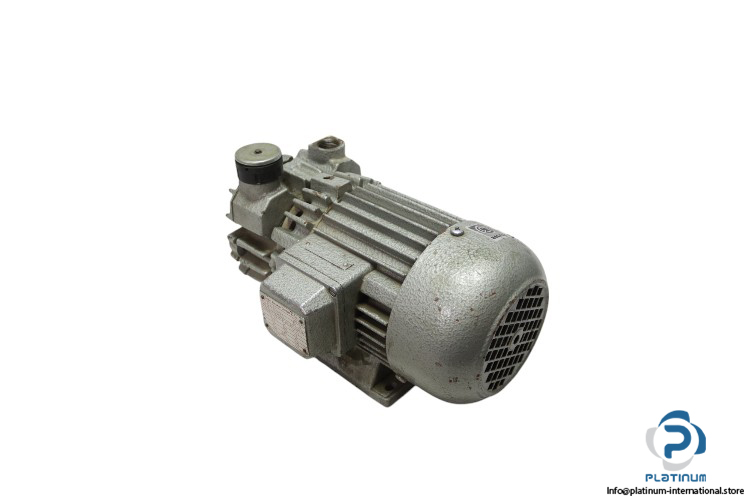

BECKER VT 3.6/08-49 VACUUM PUMP WITH 71L/4X MOTOR

This Becker vacuum pump with integrated 71L/4X motor is engineered for industrial vacuum applications requiring stable performance and flexible power input. With reliable pressure capabilities and a highly adaptable motor, it is well-suited for continuous-duty environments.

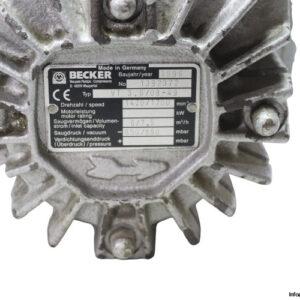

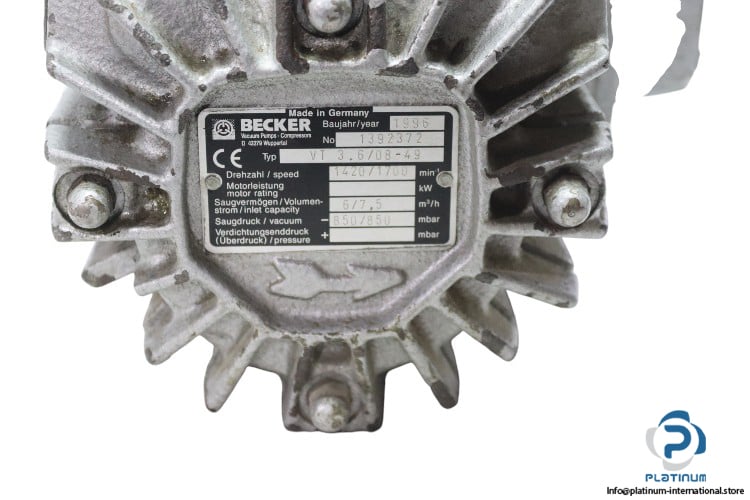

Manufacturer: Becker
Type: Vacuum Pump
Model: VT 3.6/08-49
Part No.: 1392372

Technical Information

• Vacuum Pressure [bar]: -850 / 850
• Rated Speed [min-1]: 1420 / 1700
• Flow Rate [m³/h]: 6 / 7.5

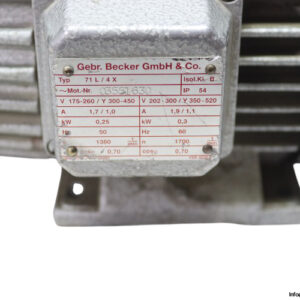

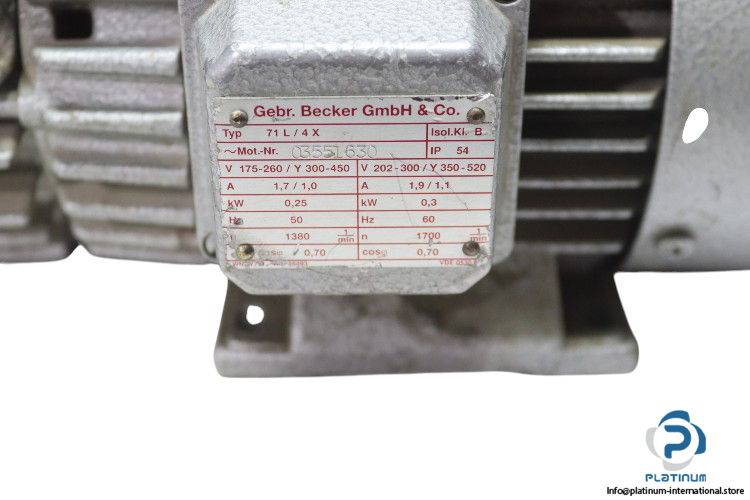

Attachment: BECKER 71L/4X MOTOR

Manufacturer: Becker
Type: Motor
Model: 71L/4X
Part No.: 03551630

Technical Information

• Frequency [Hz]: 50 / 60
• Power [kW]: 0.12 / 0.145
• Current [A]:
  @ 50 Hz: 175 to 260
  @ 60 Hz (Y): 300 to 450
• Voltage [V]:
  @ 50 Hz: 175 to 260 / Y 300 to 450
  @ 60 Hz: 202 to 300 / Y 350 to 520
• Power [kW]: 0.25 / 0.3
• Speed [rpm]: 1380 / 1700
• Power Factor [cos φ]: 0.70
• IP Rate: 54
• Class: B
