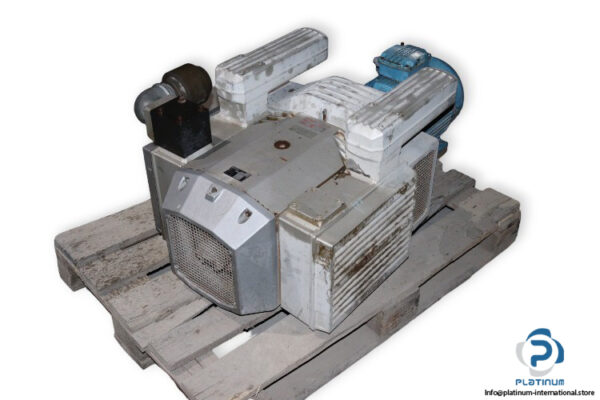

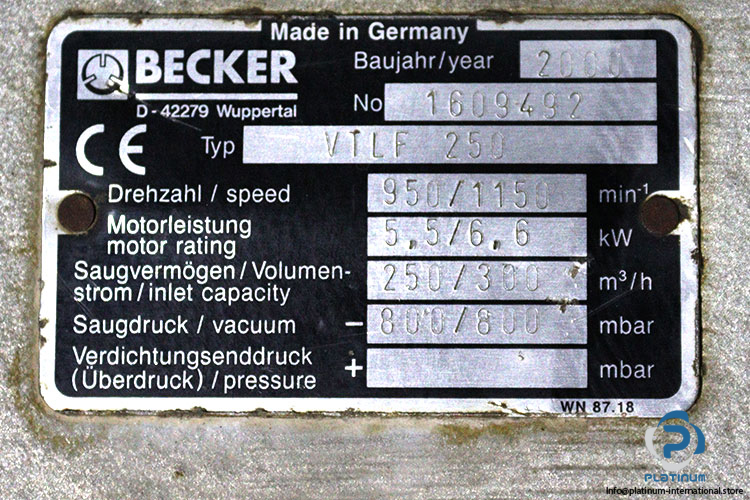

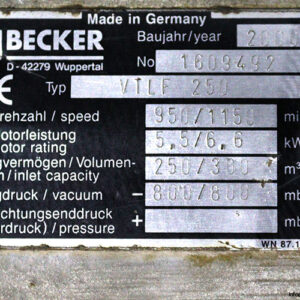

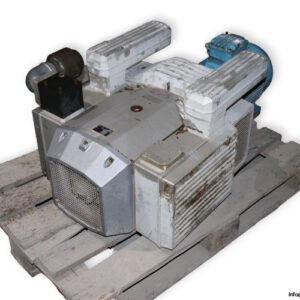

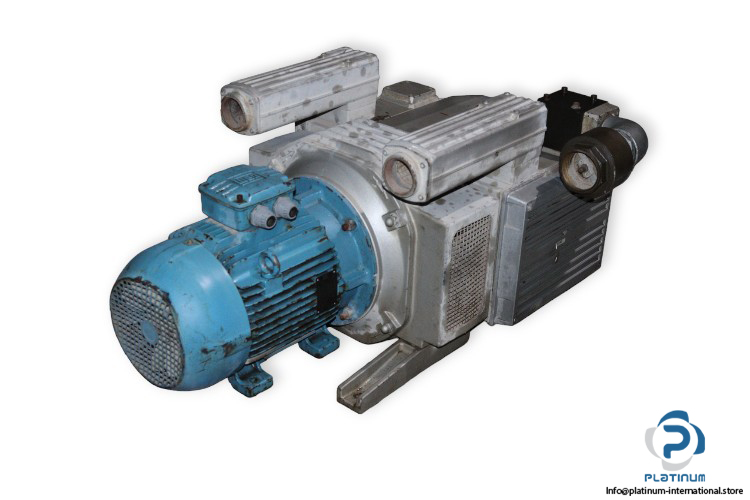

Manufacturer: Becker
Type: Vacuum Pump
Model: VTLF250

Vacuum Pressure [mbar]: -800 / +800
Rated Speed [rpm]: 950/1150
Rated Power [kW]: 5.5/6.6
Rated Flow Rate [m³/h]: 250/300
Attachment: WEG 132M-6 AC 3 Phase E-Motor

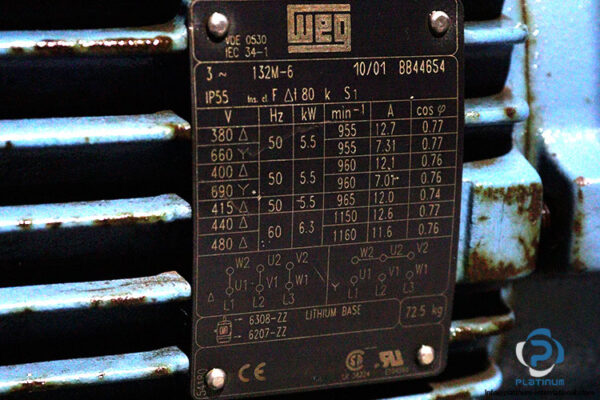

Manufacturer: WEG
Type: 3 Phase E-Motor
Model: 132M-6
Rated Voltage at 50Hz [V]: 380-660/400-690/415
Rated Current [A]: 12.7-7.31/12.1-7.01/12.0
Rated Voltage at 60Hz [V]: 440-480
Rated Current [A]: 12.6-11.6
Rated Power [kW]: 5.5-5.5-5.5/6.3
Rated Speed [rpm]: 955/960/965/1150-1160
Frequency [Hz]: 50/60
Power Factor: 0.77/0.76/0.74/0.77-0.76
Duty: S1
Thermal Class: F
Protection Class [IP]: 55
