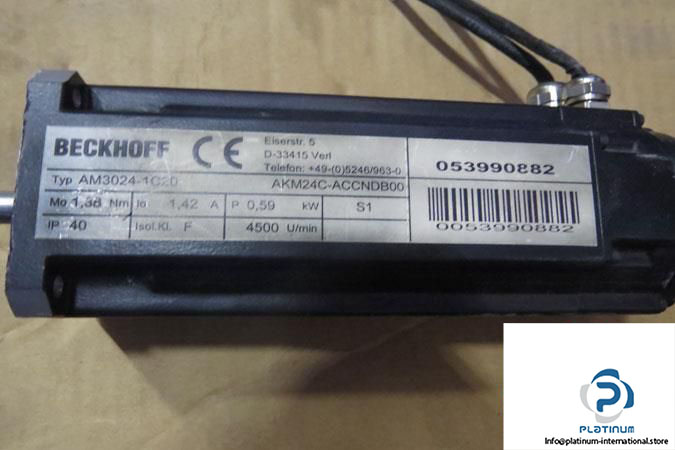

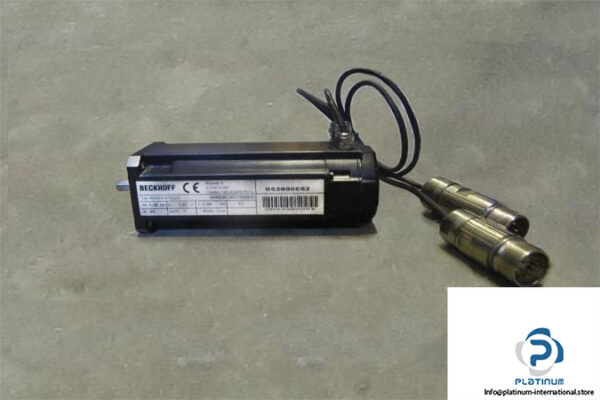

BECKHOFF AM3024-1C20 SYNCHRONOUS SERVOMOTOR

The Beckhoff AM3024-1C20 is a high-performance synchronous servomotor designed for continuous-duty industrial automation. Engineered for precision, speed, and reliability, this motor provides excellent torque output and consistent efficiency for dynamic control applications.

Manufacturer: BECKHOFF
Type: Synchronous Servomotor
Model: AM3024-1C20
MRN: AKM24C-ACCNDB00
REF NO: 053990882

Technical Information

• Standstill Current: 1.42 A
• Standstill Torque: 1.38 Nm
• Rated Speed: 4500 min^-1
• Rated Power: 0.59 kW
• Duty: S1
• Protection Class: IP 40
• Insulation Class: Class F
