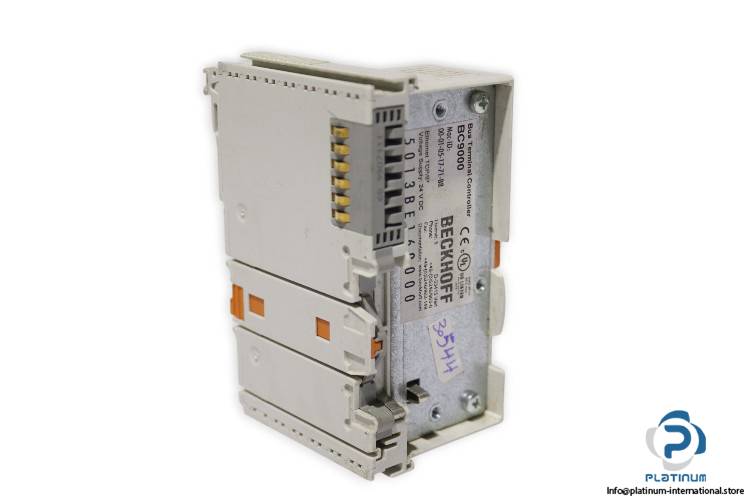

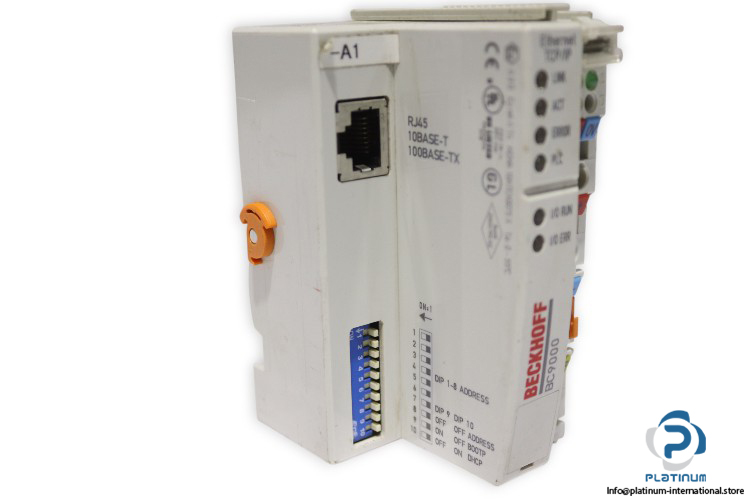

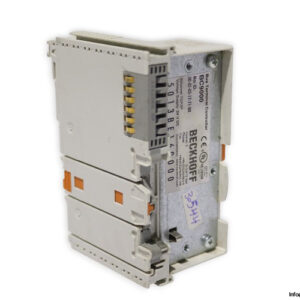

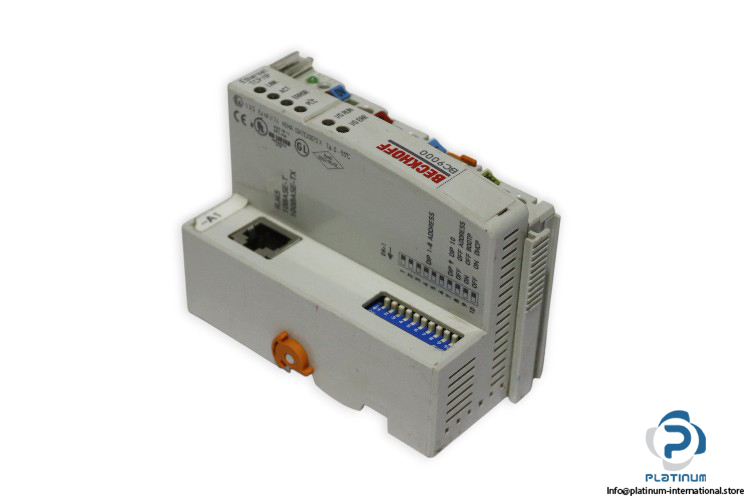

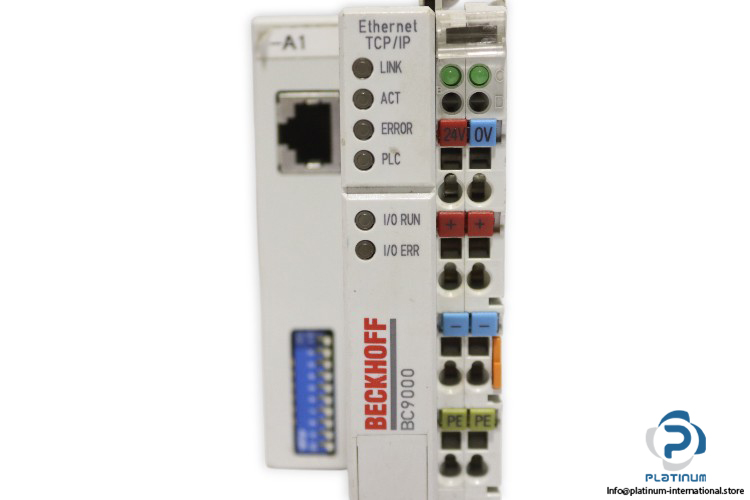

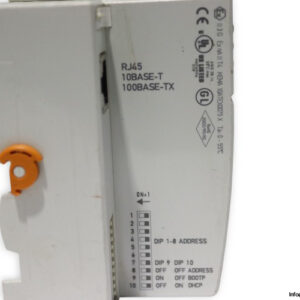

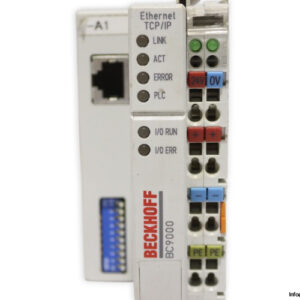

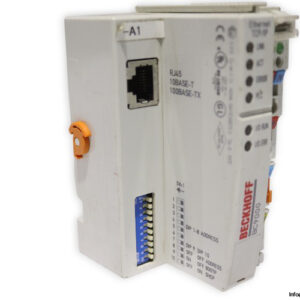

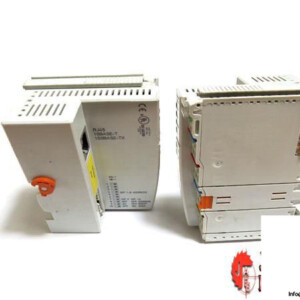

Beckhoff BC9000 Ethernet TCP/IP Bus Terminal Controller

The Beckhoff BC9000 is a versatile Ethernet TCP/IP Bus Terminal Controller designed for flexible fieldbus communication. It integrates seamlessly with industrial automation systems, offering robust performance and compatibility with multiple protocols.

Manufacturer: Beckhoff
Type: Ethernet TCP/IP Bus Terminal Controller
Model: BC9000

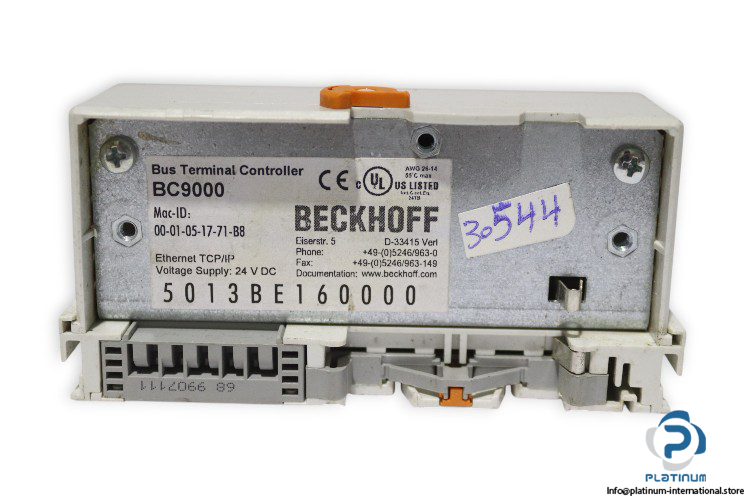

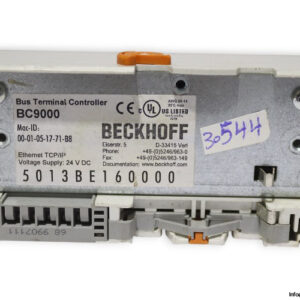

MAC ID: 00-01-05-17-71-b8
MNR: 5013be160000

Technical Information

• Programming: via TwinCAT and programming interface or Ethernet
• No. of Bus Terminals: 64
• FieldBus and Process Image: max. 512 byte input/output
• Protocol: TwinCAT ADS, Modbus TCP
• Power Supply: 24 V DC (-15 %/+20 %)
• Ripple: -15%/+20%
• Power Contacts: max. 24 V DC, 10 A
• Data Transfer Rates: 10/100 Mbaud, automatic recognition

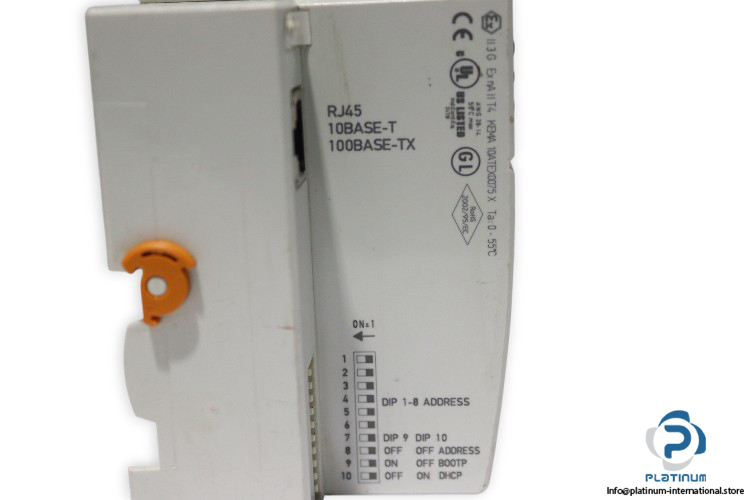

• Bus Interface: 1 x RJ45
• Input Current: 70 mA + (total K-bus current)/4, 500 mA
• Max. Starting Current: 2.5 x continuous current
• Electrical Isolation: 500 V
• Operating Temperature: -25 / +60°C
• Protection: IP20
