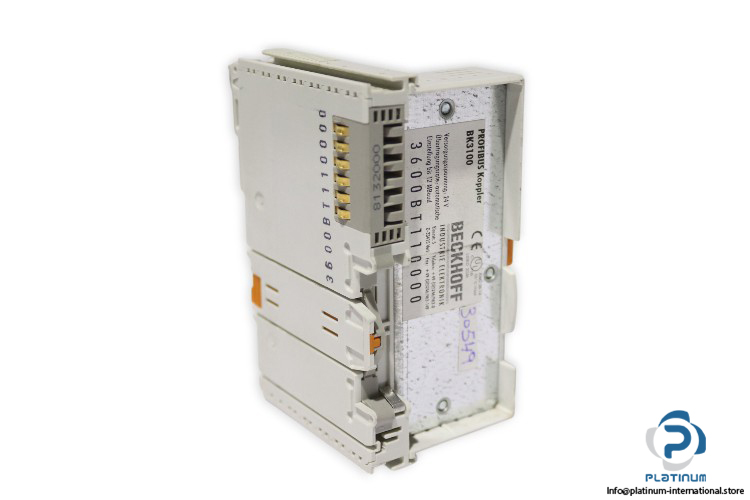

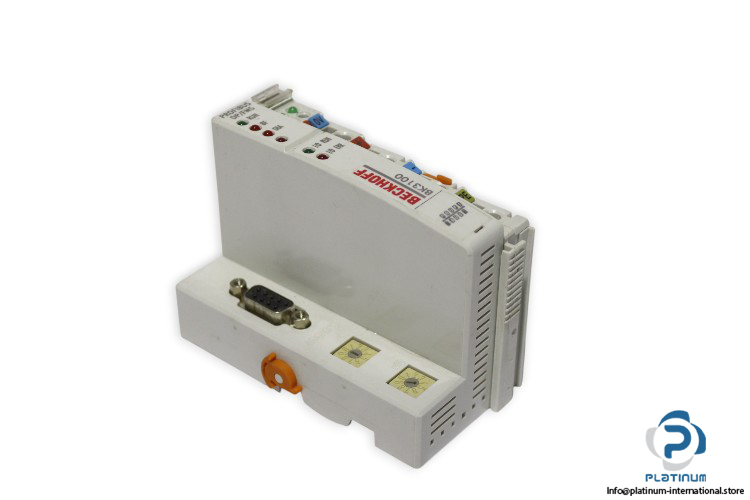

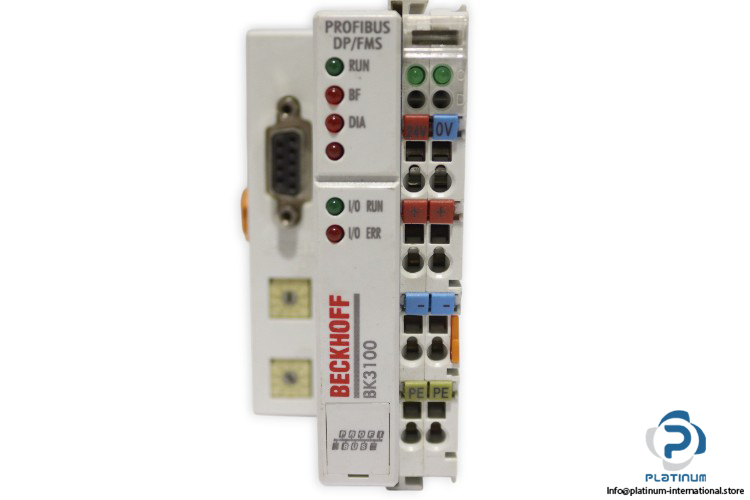

Beckhoff BK3100 PROFIBUS Coupler

The Beckhoff BK3100 PROFIBUS Coupler is a high-performance module designed for reliable communication between PROFIBUS systems and Beckhoff™s modular I/O components. Engineered for industrial automation, it provides robust data transfer, multiple peripheral options, and durable operation under demanding environments.

Manufacturer: Beckhoff
Type: PROFIBUS Coupler
Model: BK3100

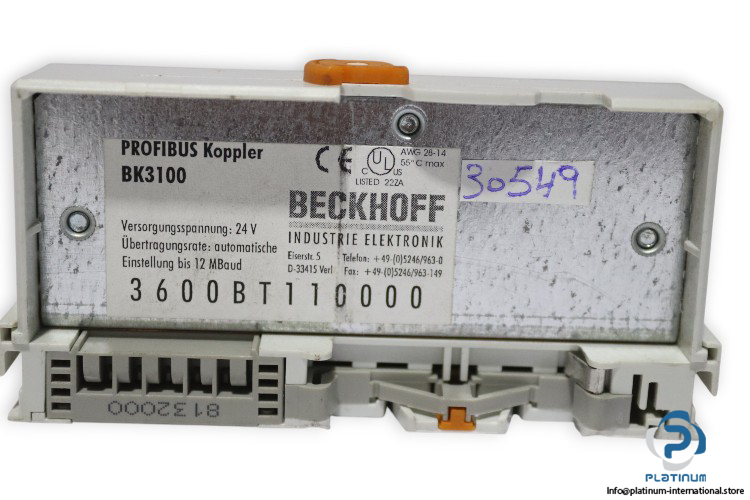

MRN: 3600bt110000

Technical Information

• K-Bus Supply Current: Up to 1750 mA max
• Number of Bus Terminals: 64
• Digital Peripheral Signals: 256 inputs/outputs
• Peripheral Bytes: 64 bytes I / 64 bytes O DP only, 128 bytes I / 128 bytes O
• Baud Rate: 12 Mbaud
• Protocol: DP, FMS

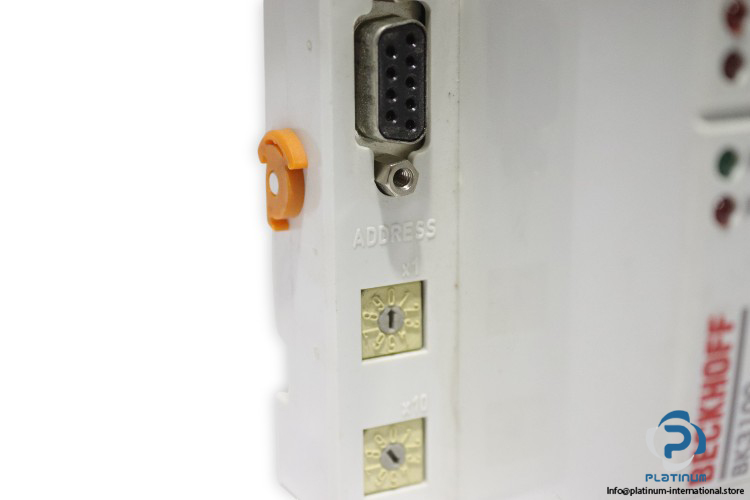

• Bus Connection: D-Sub, 9-pin
• Voltage of Power Contact: 24 VDC/AC
• Power Contacts Current Drawn: 10 A max
• Electric Strength: 500 Veff (Power Contact / Supply Voltage / Fieldbus)
• Operating Temperature: 0°C … +55°C
