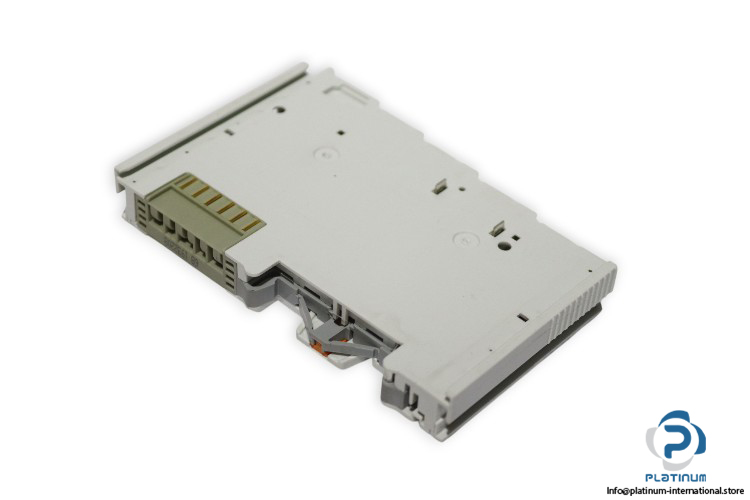

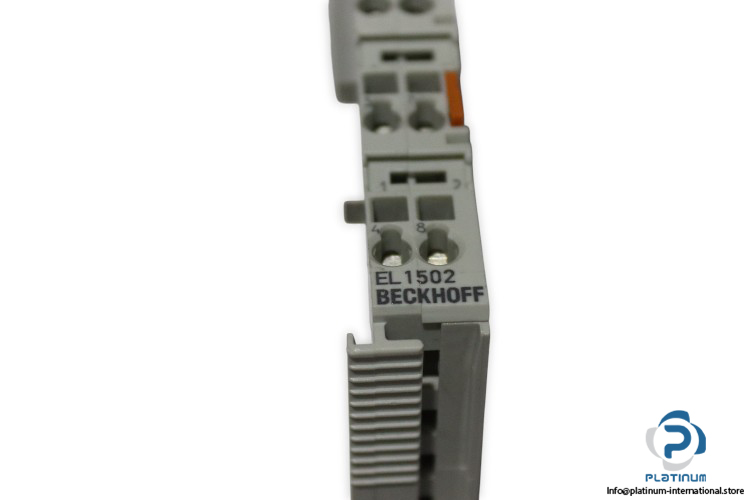

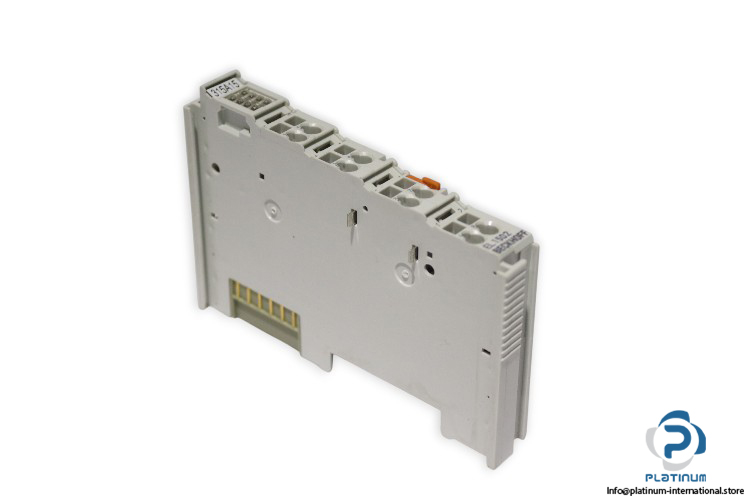

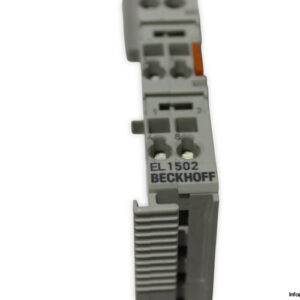

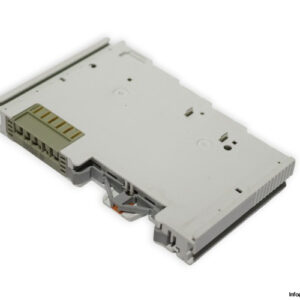

BECKHOFF EL1502 EtherCAT Terminal
The BECKHOFF EL1502 is a compact 2-channel digital input EtherCAT terminal designed for high-performance industrial automation systems. It supports fast counting frequencies, integrated electrical isolation, and robust compliance with international standards, ensuring reliability in demanding applications.
Manufacturer: BECKHOFF
Type: EtherCAT Terminal, 2-channel digital input
Model: EL1502

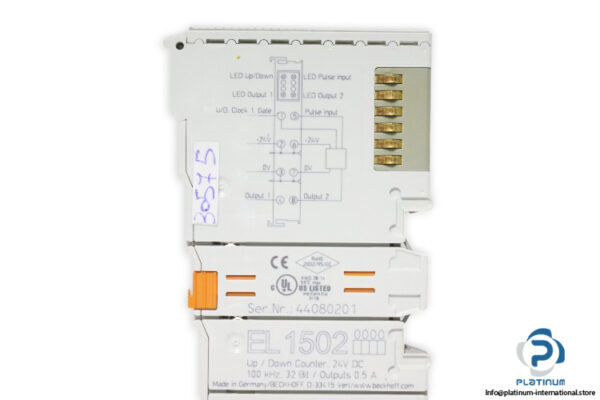

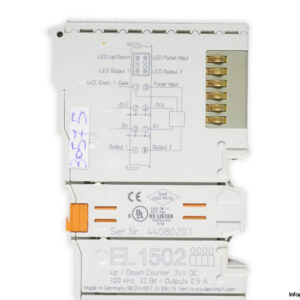

Serial No.: 44080201
Technical Information
- Nominal Voltage: 24 V DC
- 0 Signal Voltage: -3 / +5 V (EN 61131-2, type 1)
- 1 Signal Voltage: 15 / 30 V (EN 61131-2, type 1)
- Input Current: typ. 5 mA (EN 61131-2, type 1)
- Counting Frequency: max. 100 kHz
- Max. Output Current: 24 V/0.5 A (short-circuit proof) per channel
- Current Consumption Power Contacts: typ. 14 mA + load
- Current Consumption E-bus: typ. 130 mA
- Counter Depth: 32 bit
- Electrical Isolation: 500 V (E-bus/field potential)
- Configuration: No address setting, configuration via the EtherCAT master
- Special Features: Set counters, switch outputs
- Operating Temperature: -25 / +60°C
- Storage Temperature: -40 / +85°C
- Relative Humidity: 95%, no condensation
- Vibration/Shock Resistance: Conforms to EN 60068-2-6/EN 60068-2-27
- EMC Immunity/Emission: Conforms to EN 61000-6-2/EN 61000-6-4
- Protection Rating/Installation Position: IP20 / variable
- Pluggable Wiring: For all ESxxxx terminals
- Ex Marking: ATEX: II 3 G Ex ec IIC T4 Gc / IECEx: Ex ec IIC T4 Gc
- Material: Polycarbonate
- Installation: On 35 mm DIN rail, conforming to EN 60715 with lock
- Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
