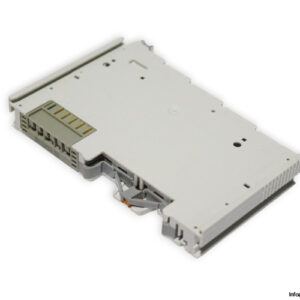

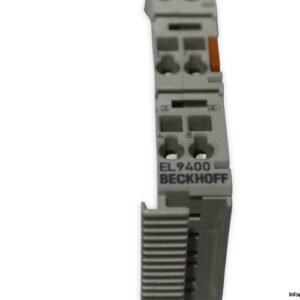

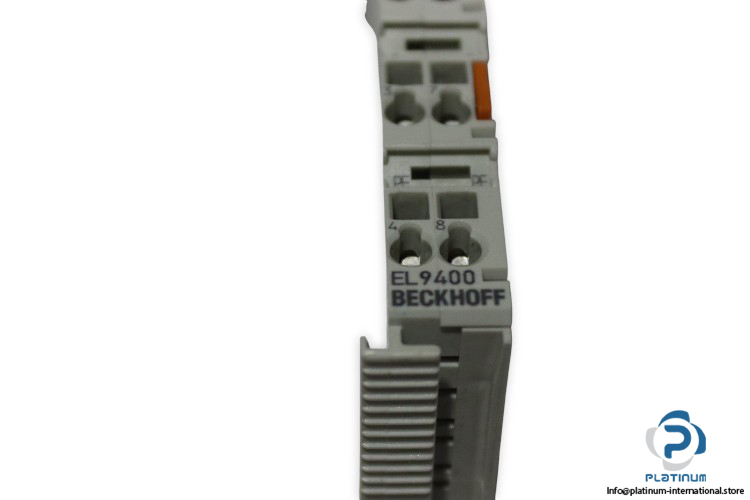

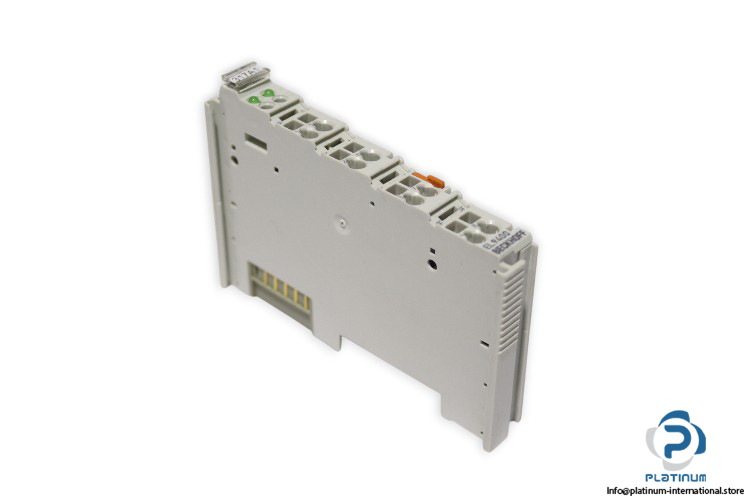

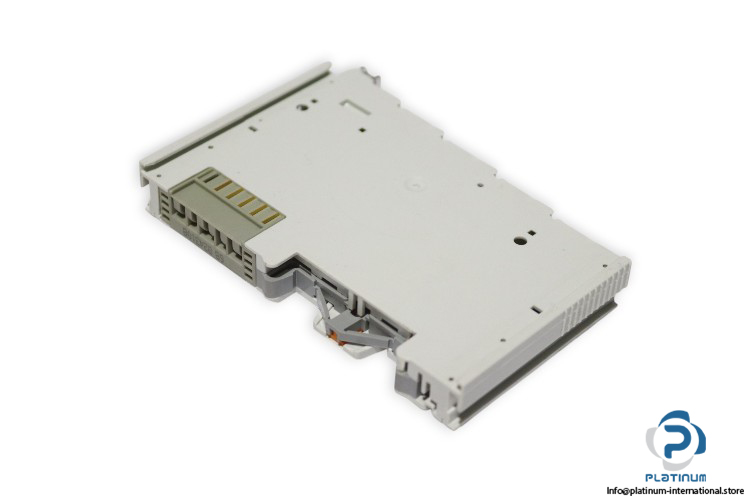

Beckhoff EL9400 Power Supply Terminal for E-bus
The Beckhoff EL9400 is a reliable power supply terminal designed for the E-bus system. It ensures stable voltage and current supply with electrical isolation, high safety standards, and compact installation design.
Manufacturer: Beckhoff
Type: Power Supply Terminal for E-bus
Model: EL9400

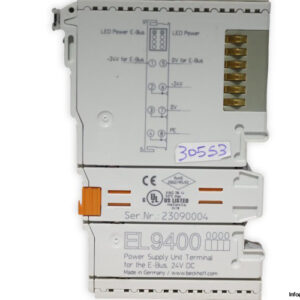

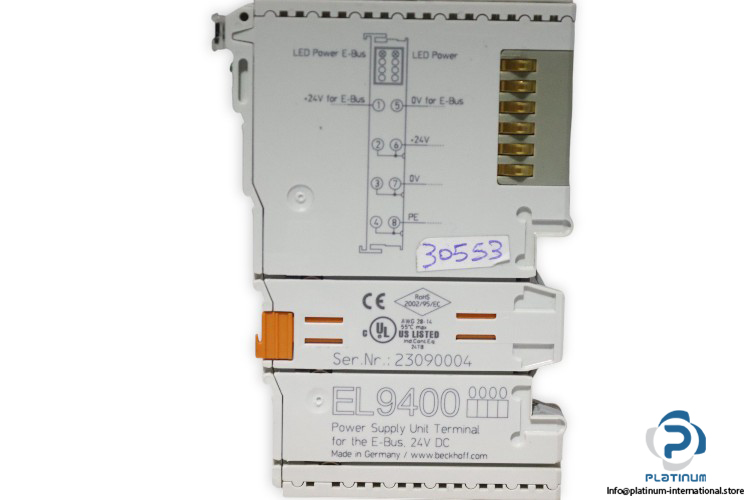

Serial No.: 23090004
Technical Information
- Input Voltage: 24 V DC (-15 %/+20 %)
- Input Current: Typ. 70 mA + (E-bus/4)
- Output Voltage: 5 V for E-bus supply
- Output Current: 2 A
- Electrical Isolation: 500 V
- Operating Temperature: 0 / +55 °C
- Vibration/Shock Resistance: Conforms to EN 60068-2-6 / EN 60068-2-27
- EMC Immunity/Emission: Conforms to EN 61000-6-2 / EN 61000-6-4
- Protection Rating/Installation Position: IP20
- Material: Polycarbonate
- Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
- Installation: On 35 mm DIN rail (EN 60715) with lock
- Mounting: Side by side by means of double slot and key connection
