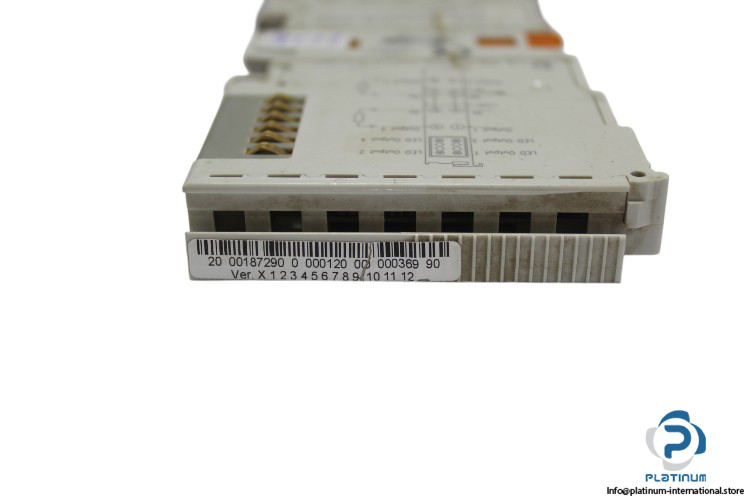

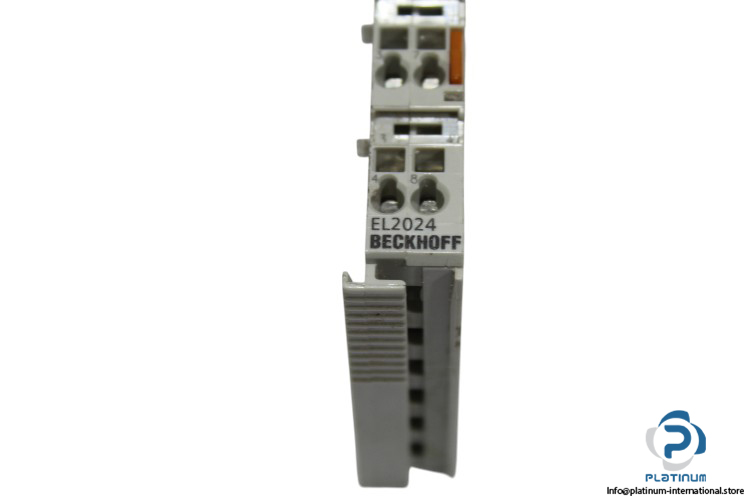

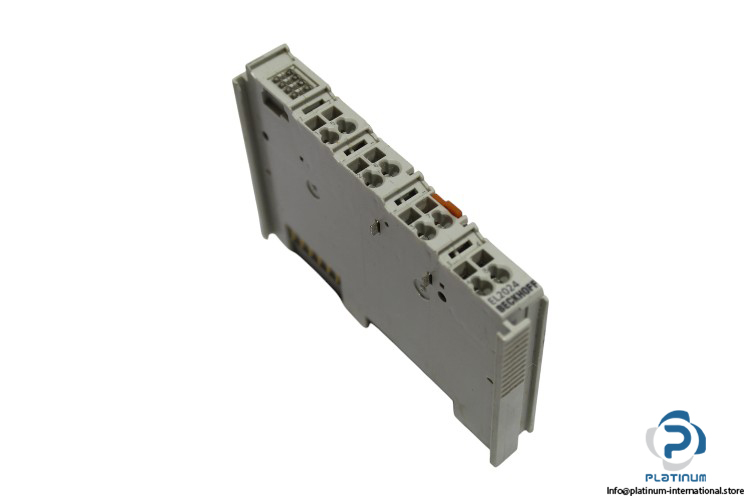

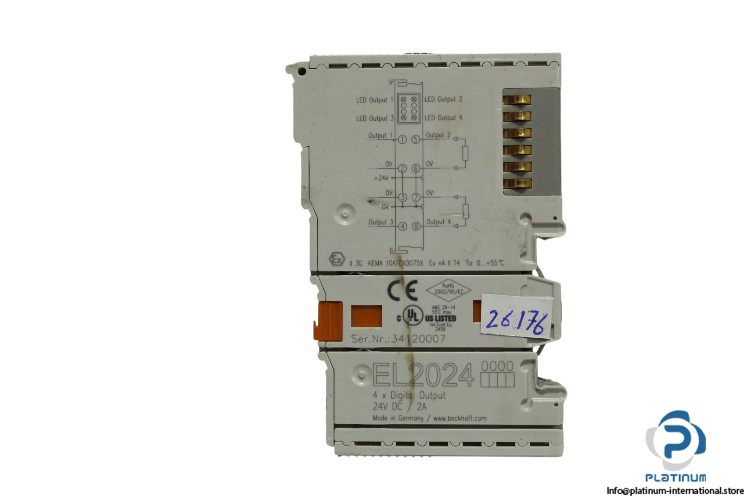

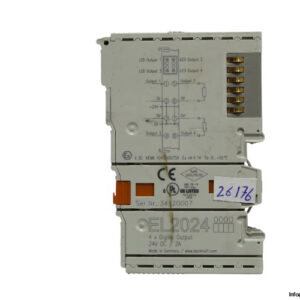

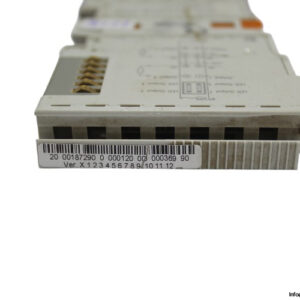

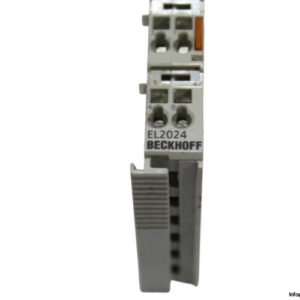

Beckhoff EL2024 Digital Output Terminal

The Beckhoff EL2024 is a 4-channel digital output terminal designed for high-performance signal switching in automation systems. With a compact design, wide operating temperature range, and support for various load types, it provides reliable output control in industrial environments.

• Manufacturer: Beckhoff
• Type: Digital Output Terminal
• Model: EL2024

Technical Information:

• Nominal Voltage: 24 V DC
• Output Current Max. Per Channel: 2 A
• Load Type: Ohmic, Inductive, Lamp Load
• Number of Outputs: 4
• Protection Class: IP20
• Operating Temperature: -25 / 60°C
• Dimensions (W x H x D): 15 x 100 x 70 mm
