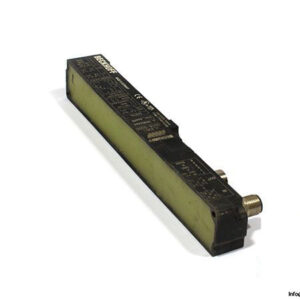

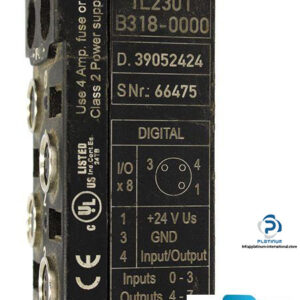

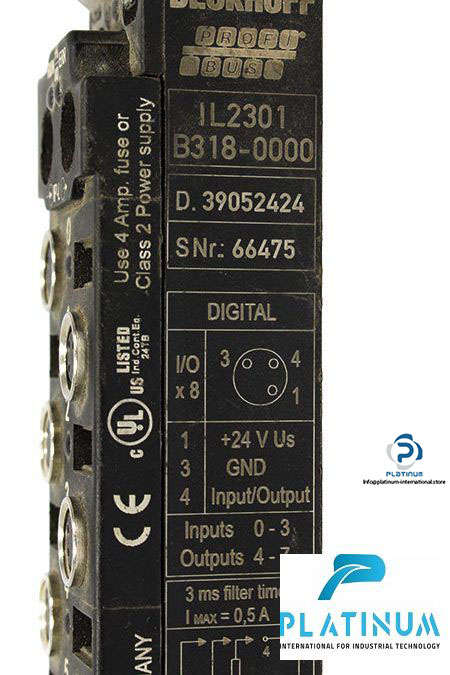

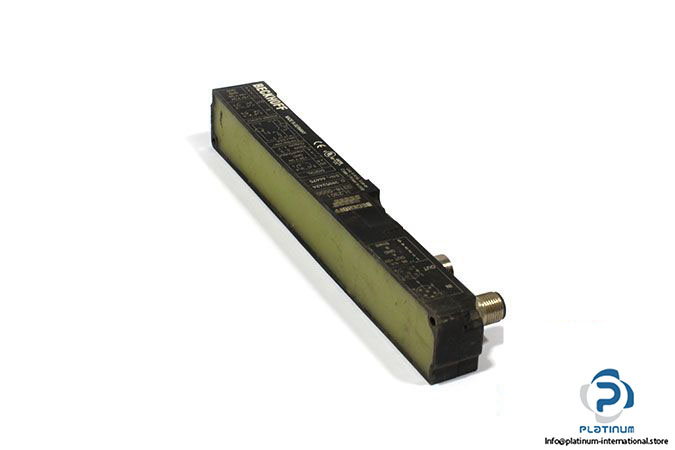

Manufacturer: BECKHOFF

Type: Coupler Box

Model: IL2301 B318-0000

Rated voltage: 24 V DC

Max. Output Current: 0.5 A per channel

Input Filter: 3 ms

Input/Output Connections: M8, screw type

Number of Channels: 4 digital inputs + 4 digital outputs

Power supply connection: 1 x M8 male socket, 4-pin

downstream connection: 1 x M8 female socket, 4-pin

Load Type: ohmic, inductive, lamp load

Operating Temperature: 0 … +55 °C

Protection Class: IP65

Housing Material: PA6 (polyamide)

Dimensions (W x H x D): 30 x 210 x 26.5 mm

Weight: 0.3 kg
