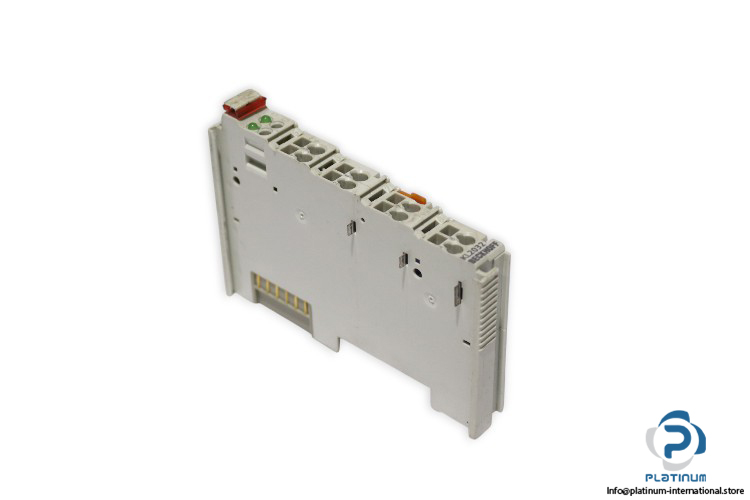

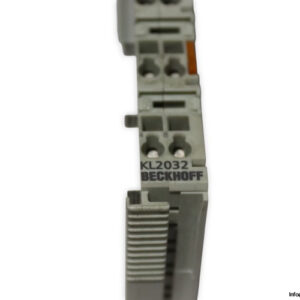

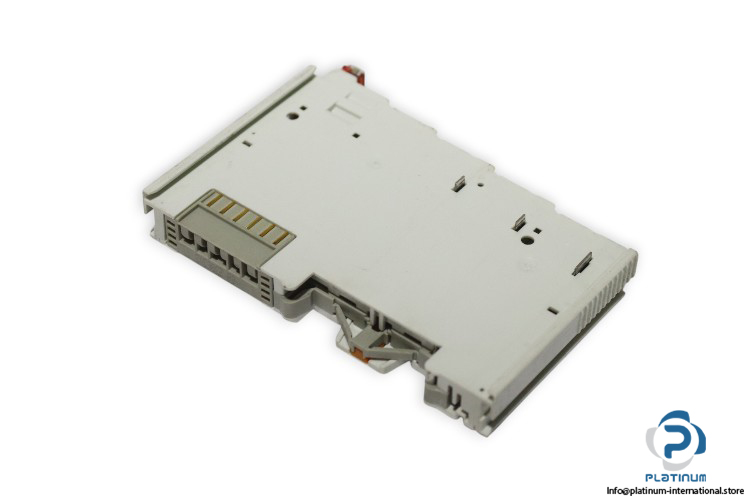

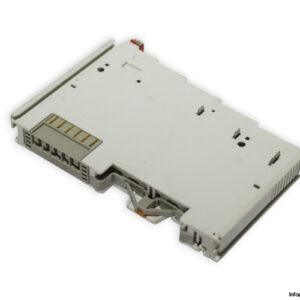

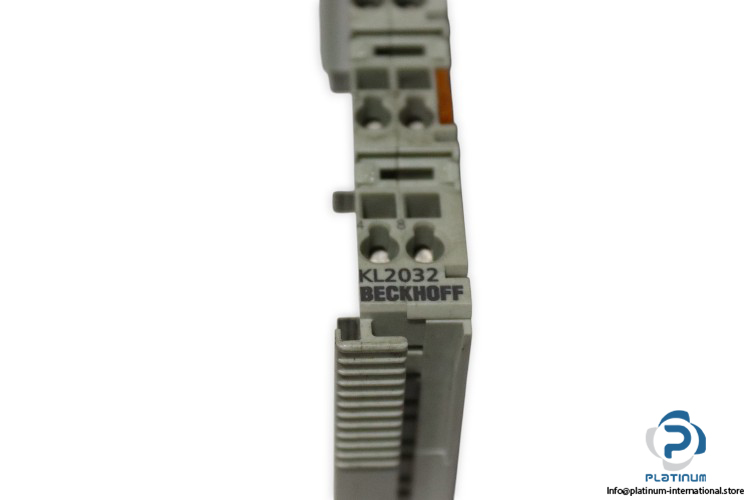

Beckhoff KL2032 Bus Terminal

The Beckhoff KL2032 is a compact and efficient digital output bus terminal from the KL2xxx family. Designed for 24 V DC operation, it provides two short-circuit proof outputs and reliable electrical isolation, making it ideal for industrial automation environments.

Manufacturer: Beckhoff
Type: Bus Terminal
Model: KL2032

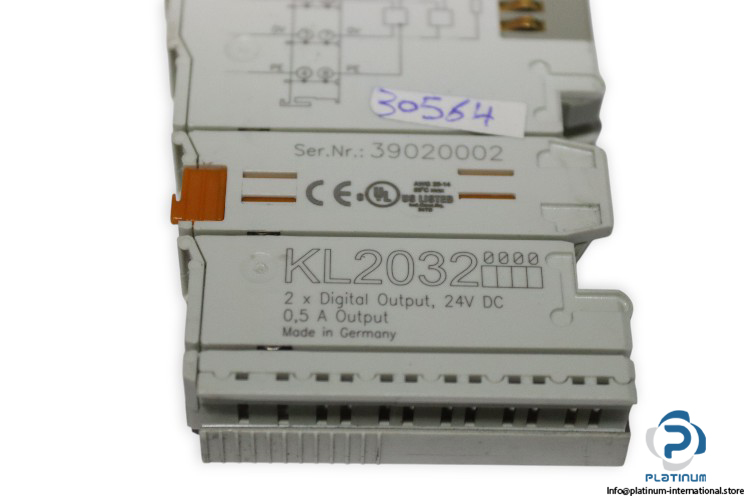

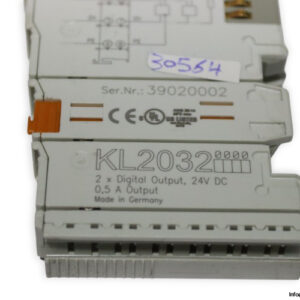

Serial No.: 39020002

Technical Information

• Family: KL2xxx

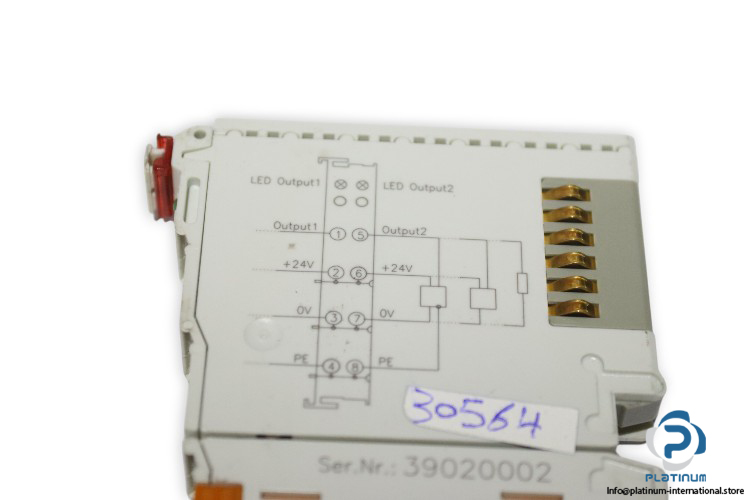

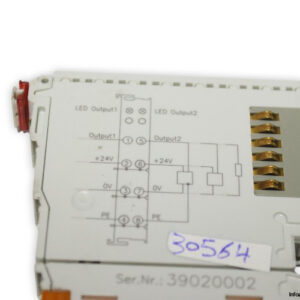

• Connection Technology: 4-wire
• Number of Outputs: 2
• Nominal Voltage: 24 V DC (-15 %/+20 %)
• Load Type: Ohmic, Inductive, Lamp Load
• Max. Output Current: 0.5 A per channel (short-circuit proof)
• Short-Circuit Current: < 2 A
• Breaking Energy: < 150 mJ/channel
• Electrical Isolation: 500 V (K-bus/field potential)
• Current Consumption Power Contacts: typ. 20 mA + load
• Current Consumption K-bus: typ. 5 mA
• Bit Width in Process Image: 2 outputs
• Protection Rating / Installation Position: IP20
• Operating Temperature: -25 / +60 °C
• Material: Polycarbonate
• Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
