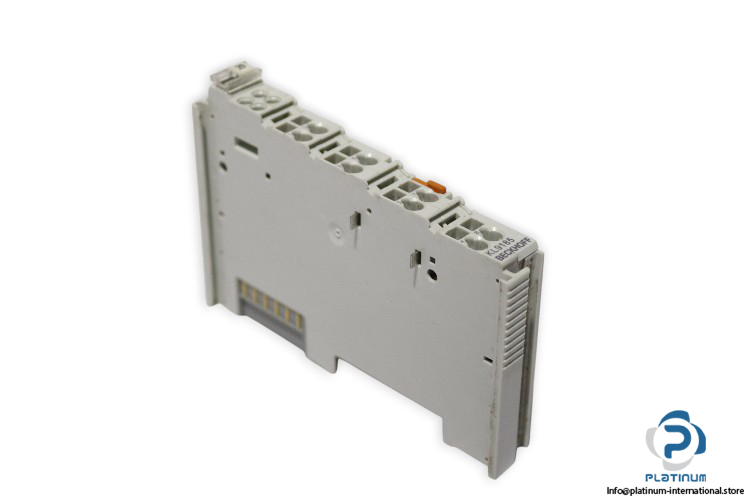

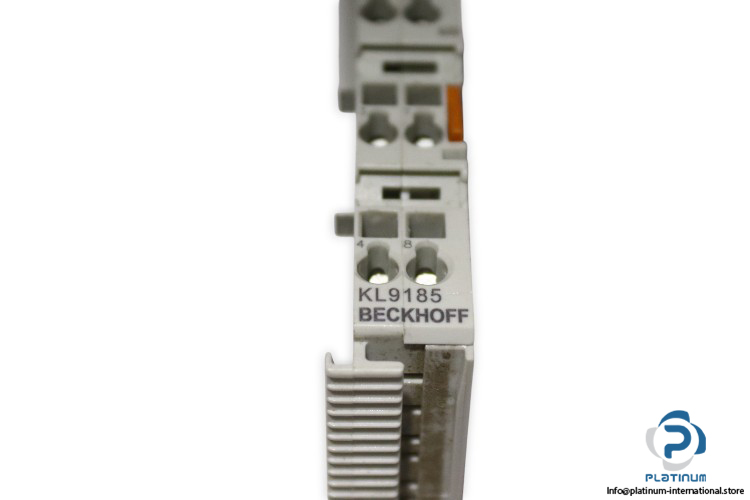

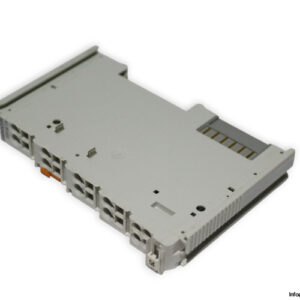

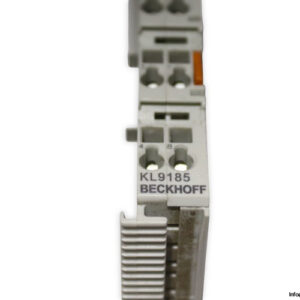

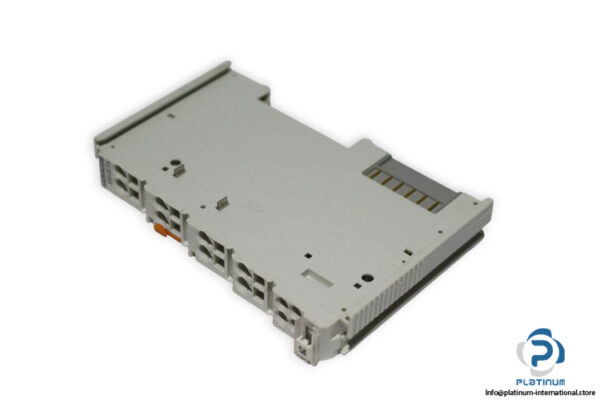

Beckhoff KL9185 Potential Distribution Terminal

The Beckhoff KL9185 is a high-quality potential distribution terminal designed for reliable industrial automation. It provides multiple separate potentials with robust current load handling, ensuring secure and efficient field connections in demanding environments.

Manufacturer: Beckhoff
Type: Potential Distribution Terminal
Model: KL9185

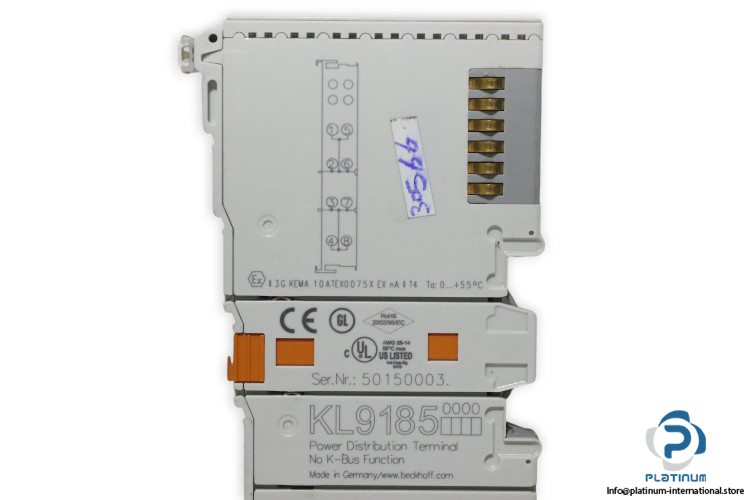

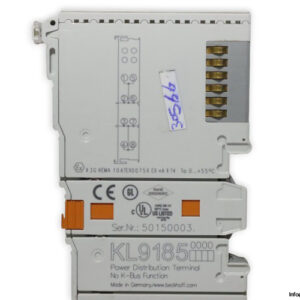

Serial No.: 50150003

Technical Information

• Family: KL9xxx
• Technology: Potential Distribution Terminal
• Number of Separate Potentials: 8
• Terminal Points per Potential: 2
• Current Load: Max. 10 A
• Electrical Isolation: 500 V (E-bus/field potential)
• Operating Temperature: -25 / +60 °C
• Relative Humidity: 95 %
• Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
• EMC Immunity/Emission: EN 61000-6-2 / EN 61000-6-4
• Protection Rating / Installation Position: IP20 / Variable
• Material: Polycarbonate
• Explosion Proof: Yes
• Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
