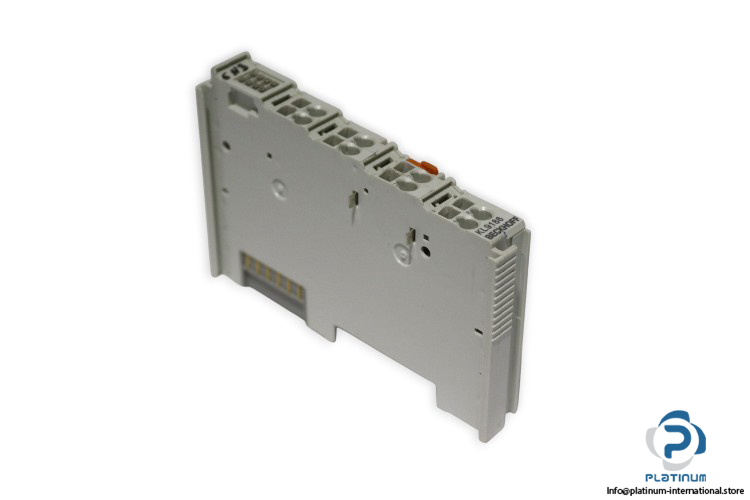

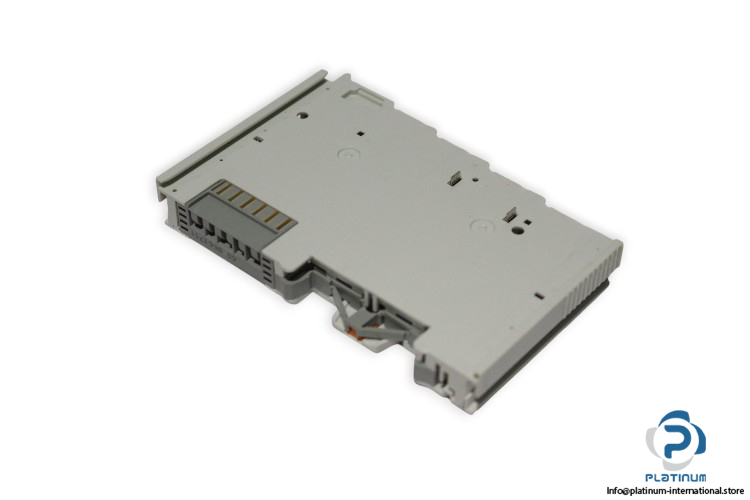

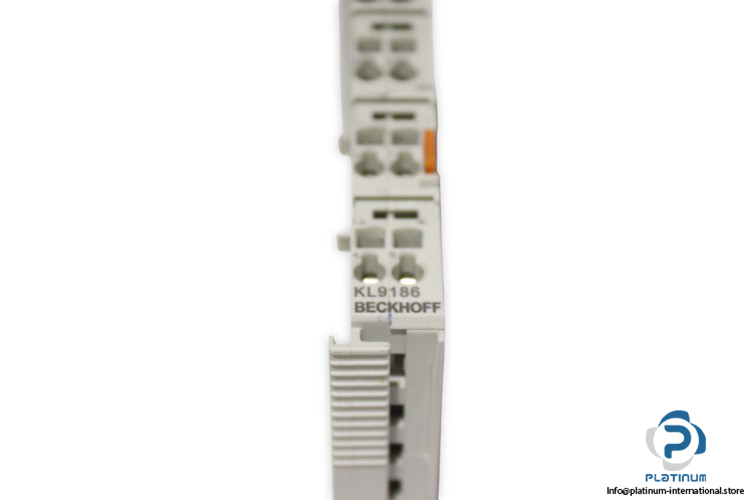

Beckhoff KL9186 Potential Distribution Terminal

The Beckhoff KL9186 is a compact and reliable potential distribution terminal designed for efficient wiring in industrial automation systems. With its 8 x 24 V contact outputs, robust polycarbonate housing, and compliance with multiple certifications, it ensures safe and versatile performance in demanding environments.

Manufacturer: Beckhoff
Type: Potential Distribution Terminal
Model: KL9186

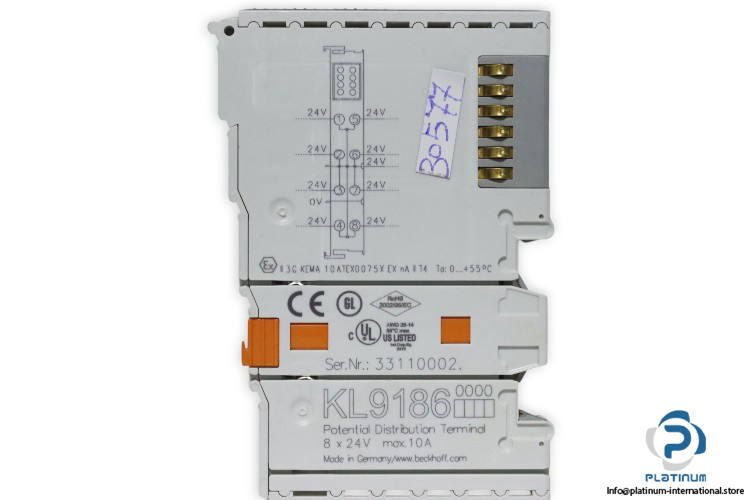

SN: 33110002

Technical Information

• Number of Outputs: 8 x 24 V contact
• Housing Width: 12 mm
• Special Features: 8 x 24 V connection
• Operating Temperature: -25 / +60°C
• Pluggable Wiring: for all KSxxxx Bus Terminals
• Approvals/Markings: CE, CCC, UL, ATEX, IECEx, DNV GL
• Ex Marking ATEX: II 3 G Ex ec IIC T4 Gc
• Ex Marking IECEx: Ex ec IIC T4 Gc
• Material: Polycarbonate
• Installation: on 35 mm DIN rail, conforming to EN 60715 with lock
• Side by Side Mounting: by means of double slot and key connection
• Current Load Power Contacts: Imax: 10 A
• Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
