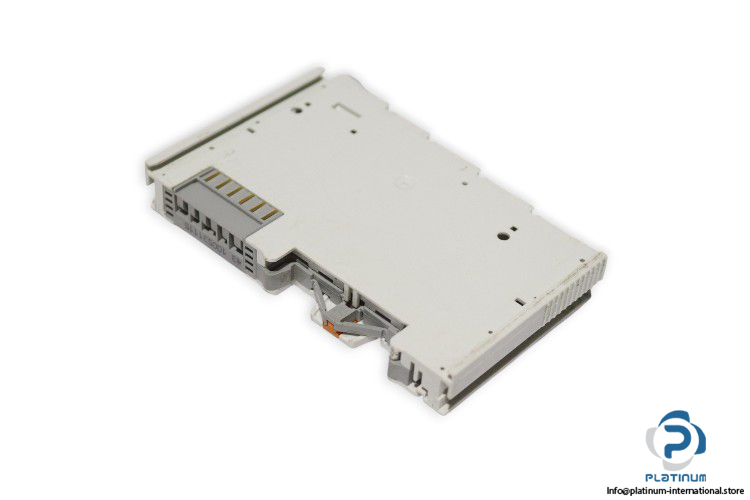

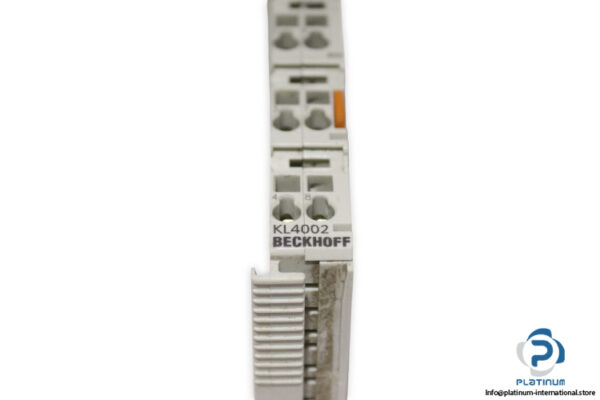

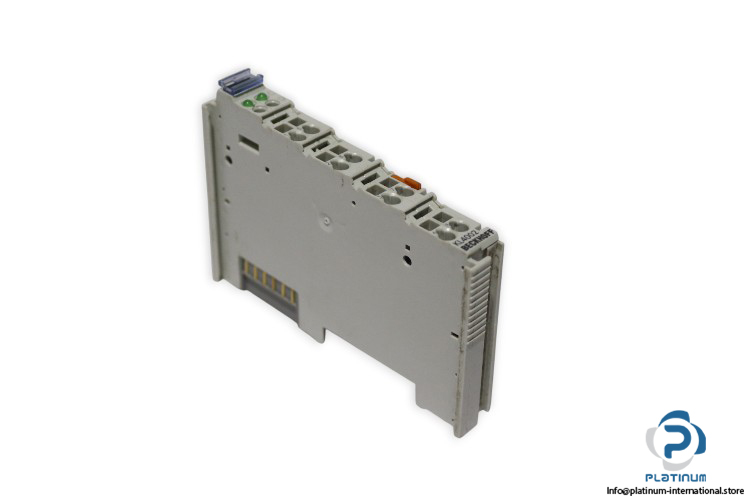

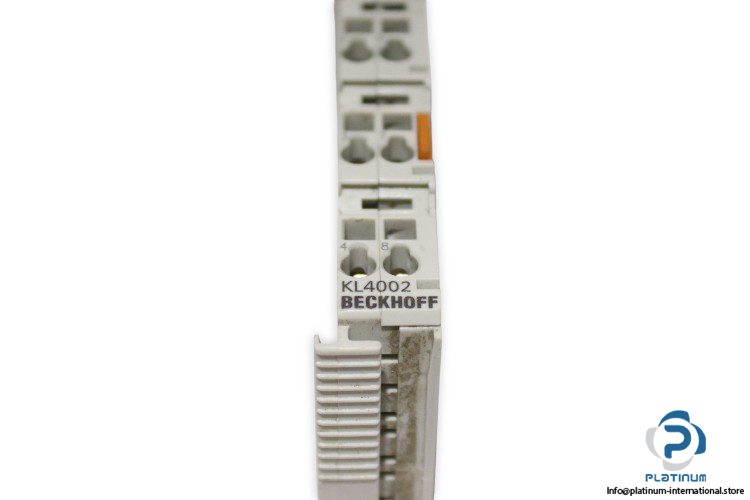

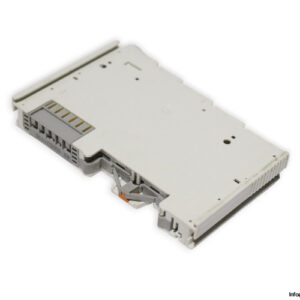

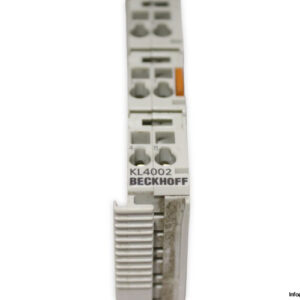

Beckhoff KL4002 Bus Terminal

The Beckhoff KL4002 is a reliable bus terminal from the KL4xxx family, designed for precise analog output control in automation systems. With high resolution, short conversion time, and robust protection, it ensures accurate and stable performance in demanding industrial environments.

Manufacturer: Beckhoff
Type: Bus Terminal
Model: KL4002

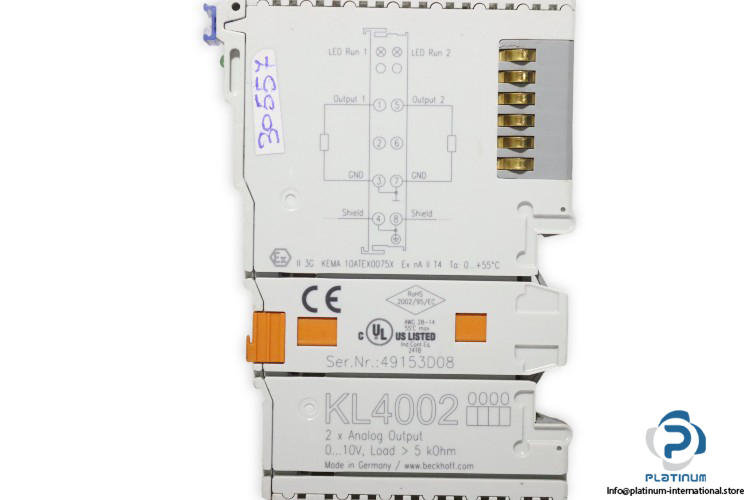

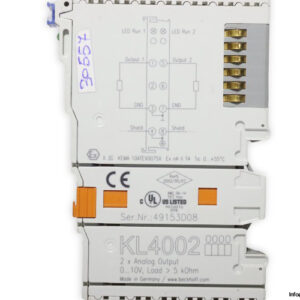

Serial No.: 49153D08

Technical Information

• Family: KL4xxx
• Technology: Single-ended
• Number of Outputs: 2
• Power Supply: Via the K-bus
• Signal Voltage: 0 / 10 V
• Load: 5 kΩ (short-circuit proof)
• Output Error: ±0.1% (relative to end value)
• Resolution: 12 bit
• Conversion Time: 1.5 ms
• Electrical Isolation: 500 V (K-bus/signal voltage)
• Current Consumption (K-bus): typ. 75 mA
• Bit Width in Process Image Output: 2 x 16 bit data (2 x 8 bit control/status optional)
• Operating Temperature: -25 / +60 °C
• EMC: Conforms to EN 61000-6-2 / EN 61000-6-4
• Protection Rating / Installation Position: IP20
