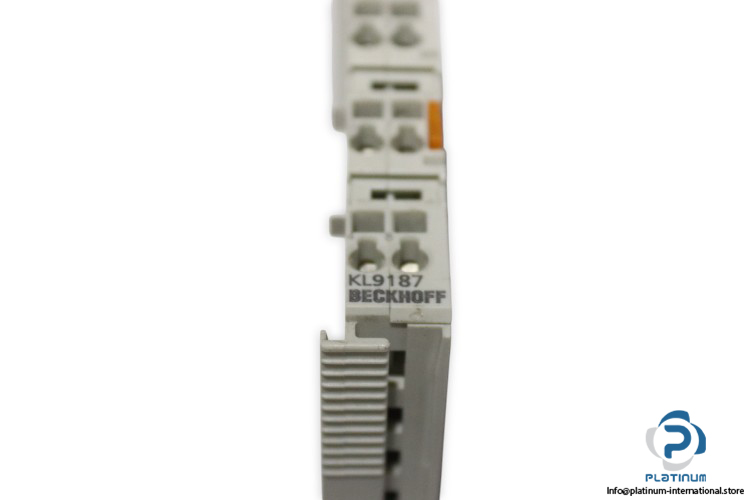

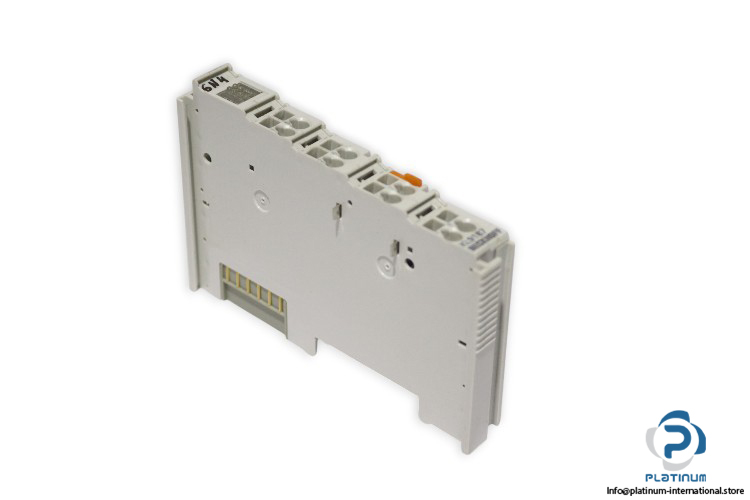

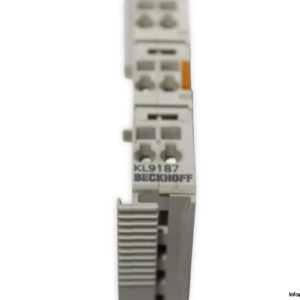

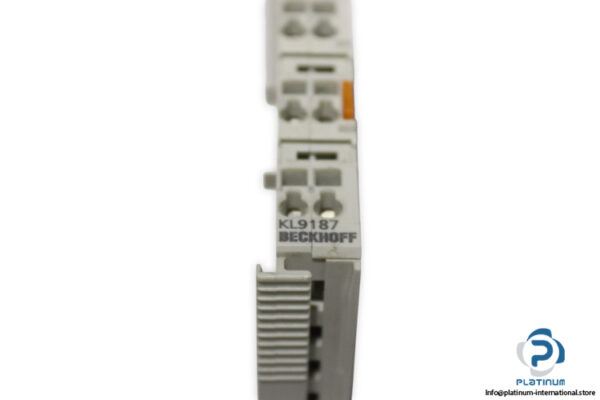

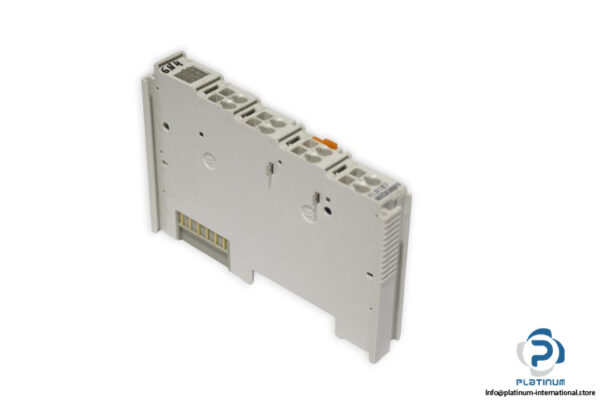

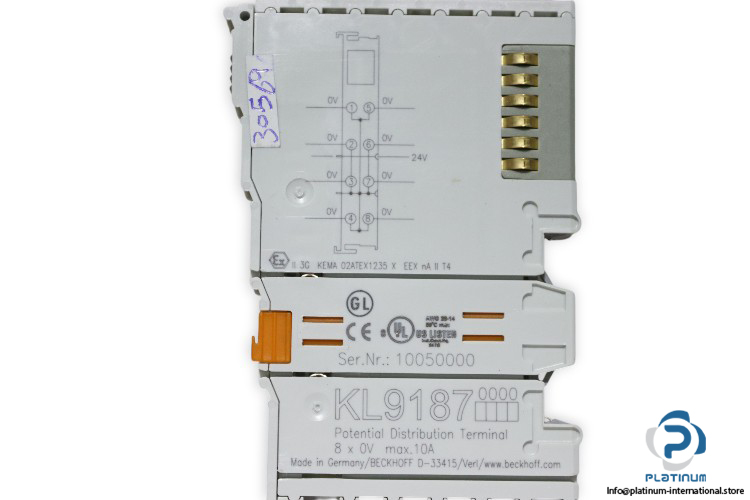

Beckhoff KL9187 Potential Distribution Terminal
The Beckhoff KL9187 is a potential distribution terminal from the KL9xxx family, designed for reliable power distribution in industrial automation systems. With a compact design, high current capacity, and approvals for global standards, it ensures efficient and safe integration into automation networks.
Manufacturer: Beckhoff
Type: Potential Distribution Terminal
Model: KL 9187
Serial No.: 10050000
Technical Information
- Family: KL9xxx
- Nominal Voltage: 60 V DC
- Current Load: 10 A
- Housing Width: 12 mm
- Configuration: Potential distribution terminal, 8 x 0 V DC, pluggable wiring
- Terminal Housing: With pluggable wiring level
- Material: Polycarbonate
- Dimensions (W x H x D): 1.2 cm x 10 cm x 6.8 cm
- Installation: On 3.5 cm DIN rail, EN 60715 with lock
- Mounting: Side by side by double slot and key connection
- Compatibility: Pluggable wiring for all KSxxxx Bus Terminals
- Approvals/Markings: CE, UL, ATEX, IECEx, DNV GL
- Operating Temperature: -25 / +60 °C
- Ex Marking ATEX: II 3 G Ex nA IIC T4 Gc
