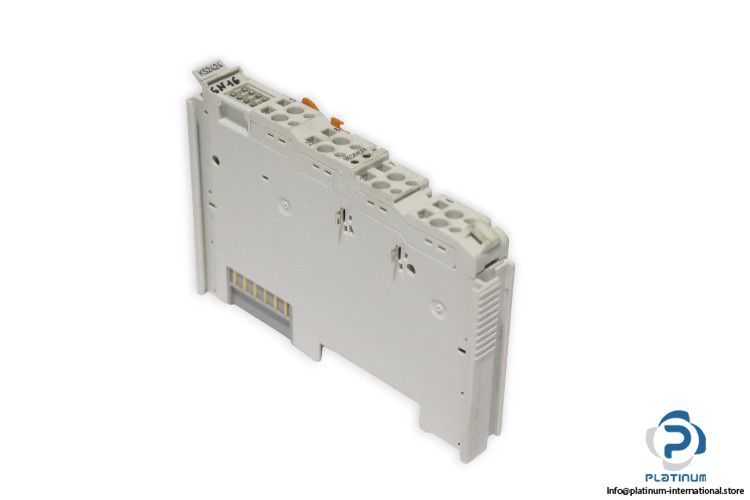

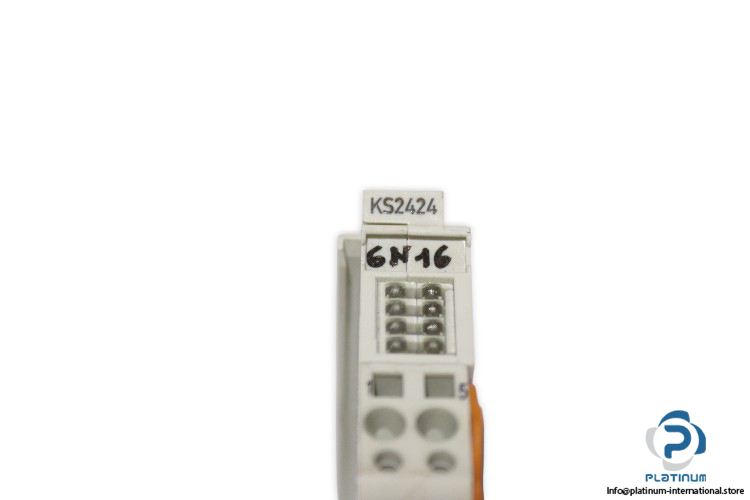

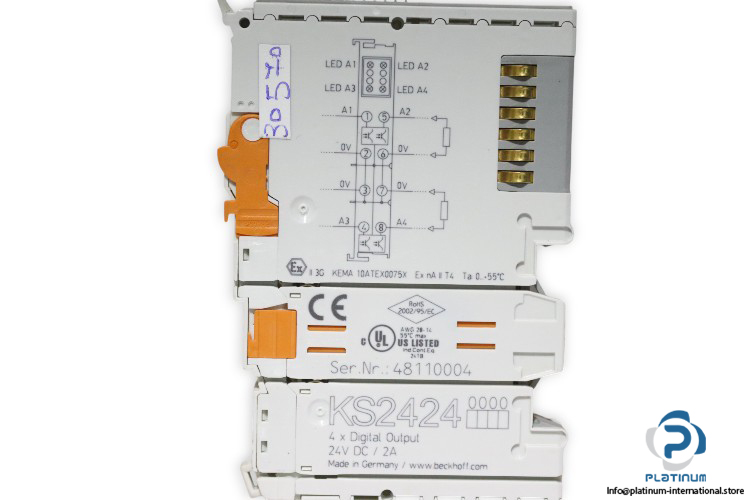

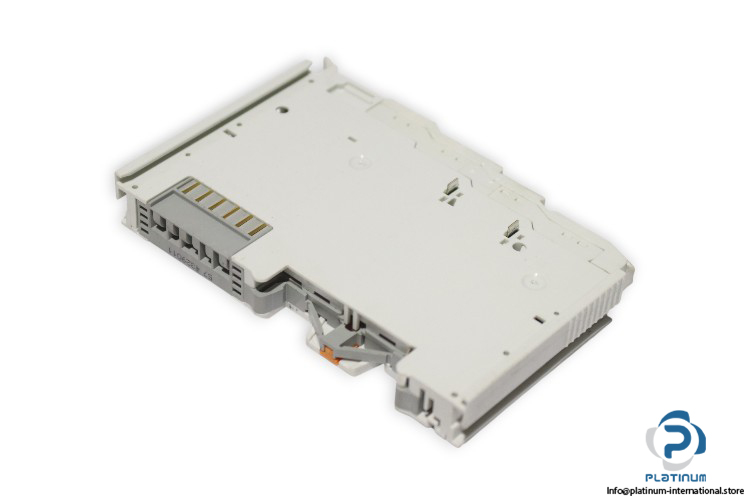

Beckhoff KS 2424 4-Channel Digital Output Terminal
The Beckhoff KS 2424 is a robust 4-channel digital output terminal from the KS2xxx series, designed for reliable performance in demanding industrial environments. With explosion-proof design, wide temperature tolerance, and short-circuit protection, it ensures durability and efficiency in automation systems.
Manufacturer: Beckhoff
Type: 4-Channel Digital Output Terminal
Model: KS 2424
MRN: 48110004
Series: KS2xxx
Technical Information
- Connection Technology: 2-wire
- Number of Outputs: 4
- Rated Voltage: 24 VDC (-15% / +20%)
- Load Type: Ohmic, Inductive, Lamp Load
- Output Current (per channel): max. 2.0 A (short-circuit proof)
- Short Circuit Current: 70 A
- Breaking Energy: 1.7 J/channel
- Electrical Isolation: Yes, 500 V (K-Bus/field potential)
- Current Consumption K-Bus: typ. 9 mA
- Current Consumption Power Contacts: typ. 30 mA + load
- Bit Width in Process: 4 output bits
- Dimensions (W x H x D): 15 mm x 100 mm x 70 mm (connected width: 12 mm)
- Permissible Ambient Temperature Range: -25°C … +60°C
- Explosion Proof: Yes
