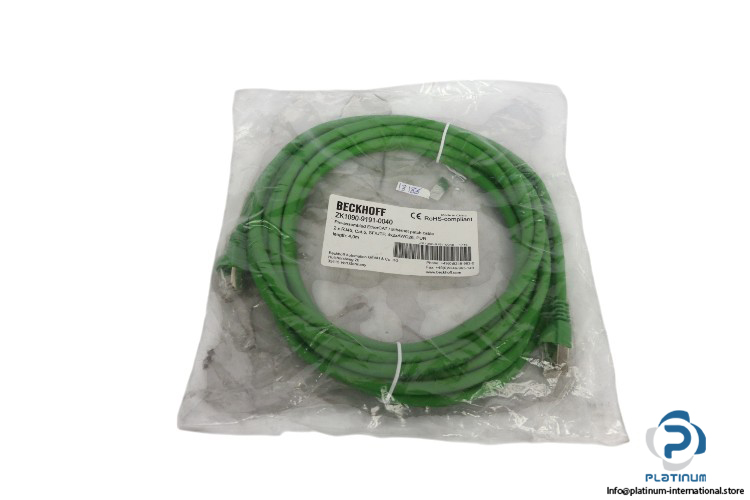

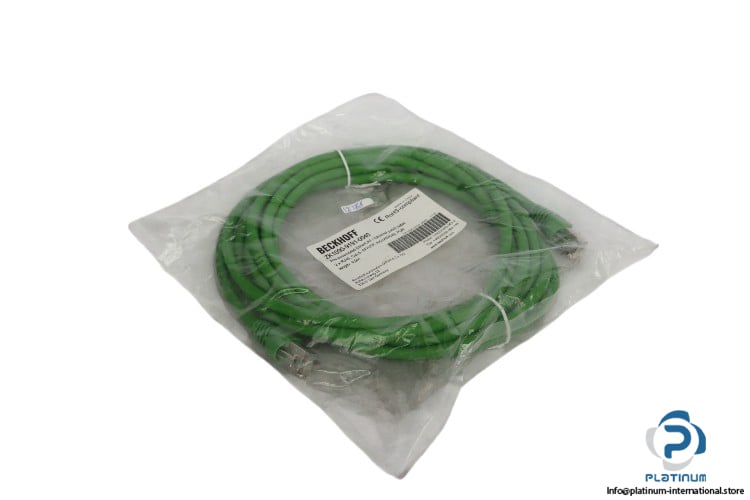

Beckhoff ZK1090-9191-0040 EtherCAT / Ethernet Patch Cable
The Beckhoff ZK1090-9191-0040 EtherCAT / Ethernet Patch Cable is a high-performance, durable cable designed for industrial networking applications. It offers reliable data transmission over long distances, making it ideal for Ethernet and EtherCAT systems in automation and control environments. This cable is engineered with a 4.00 m length, providing flexibility for various installation setups in industrial settings.
The cable features 8-pin male connectors, ensuring secure and stable connections, with a green PUR body material for durability and resistance to mechanical stress. The connectors offer a rated voltage of 160 V and a rated current of 1 A at 50°C. It also provides a high insulation resistance of ≥ 10 GΩ, ensuring the cable maintains its integrity and performance over time.
In addition to its excellent electrical properties, the Beckhoff ZK1090-9191-0040 EtherCAT / Ethernet Patch Cable is built for extreme conditions, with an operating temperature range from -40°C to 80°C, making it suitable for a wide range of industrial applications, including harsh environments. The cable structure consists of 4 x 2 x AWG26 wires, with a cross-section of 0.14 mm², ensuring efficient data transmission and low signal loss.
Manufacturer: Beckhoff
Type: EtherCAT / Ethernet Patch Cable
Model: ZK1090-9191-0040
Technical Information:
- Plugs:
- Rated Voltage: 160 V
- Rated Current: 1 A at 50°C
- Insulation Resistance: ≥ 10 GΩ
- Connector Type: Plug
- Configuration: Straight
- Contact Type: Male
- Number of Positions (Face): 8-pin
- Body Color: Green
- Body Material: PUR
- Protection Rating: IP20
- Cable:
- Rated Voltage: 60 V
- Insulation Resistance Min.: 5000 MΩ/km at 20°C
- Cable Structure: 4 x 2 x AWG26
- Cross-section (Ethernet): 0.14 mm² (AWG26)
- Operation Temperature Range: -40…80°C
- Length: 4.00 m
The Beckhoff ZK1090-9191-0040 EtherCAT / Ethernet Patch Cable is an essential component for maintaining high-speed and reliable communication in industrial Ethernet and EtherCAT systems.
