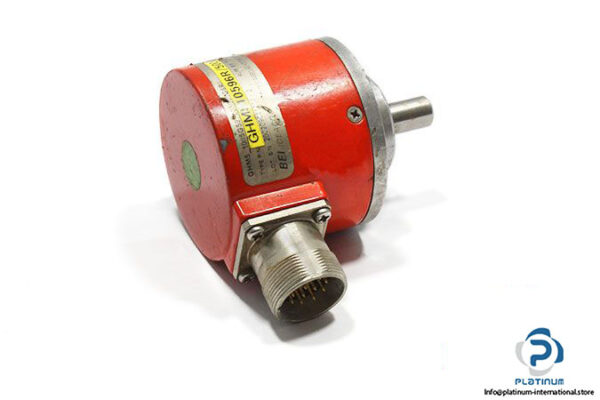

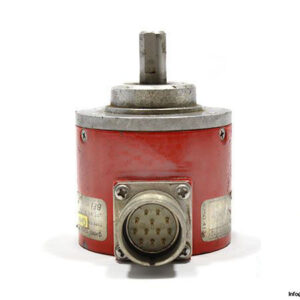

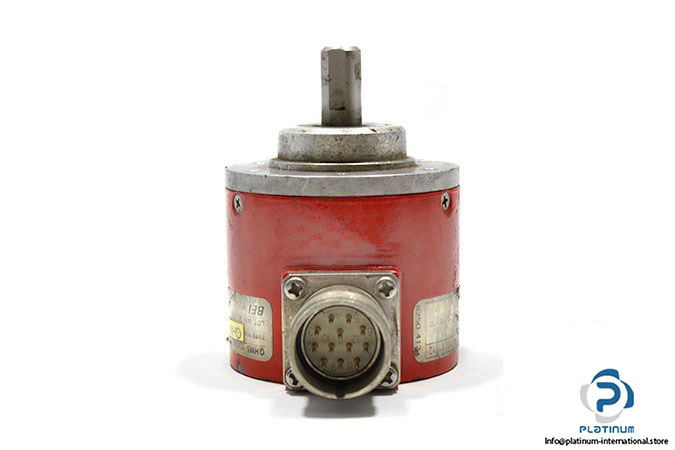

BEI GHM5 INCREMENTAL ENCODER

The BEI GHM5 encoder is a high-performance incremental encoder engineered for precision and resilience in industrial automation systems. It offers high rotational speed capabilities and superior protection against harsh environmental conditions.

Manufacturer: BEI
Type: Incremental Encoder

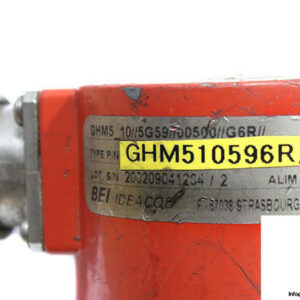

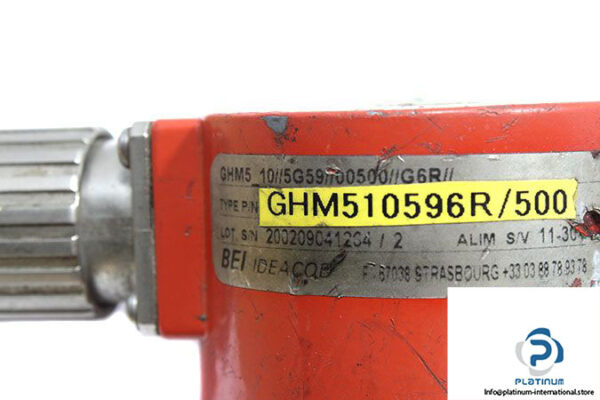

Model: GHM5 10//5G59//00500//G6R
Part No.: GHM510596R/500
Serial No.: 200209041204/2

Technical Information

• Shaft Diameter: 10 mm
• Shaft Seal: PTFE
• Load Max.: Axial: 50 N, Radial: 100 N
• Speed: Permissible Max: 12000 rpm, Continuous Max: 9000 rpm
• Resolution: 500
• Continuous Current (No Load): 75 mA Max
• Current Per Channel: 40 mA Max
• Shaft Material: Stainless Steel
• Power Supply: 11 “ 30 V DC
• Output Stage: Push-Pull 5 “ 30 V DC
• Output Signal: A, A/, B, B/, 0, 0/ (0, A&B gated)
• Connection: M23 12 Pins CW
• Connection Orientation: Radial
• Operating Temperature: -20 to 80 °C
• Protection: IP65 (IP67 with flange option)
