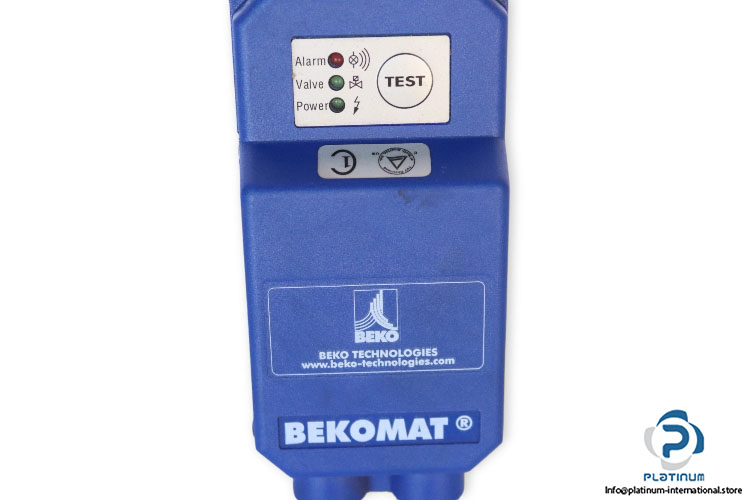

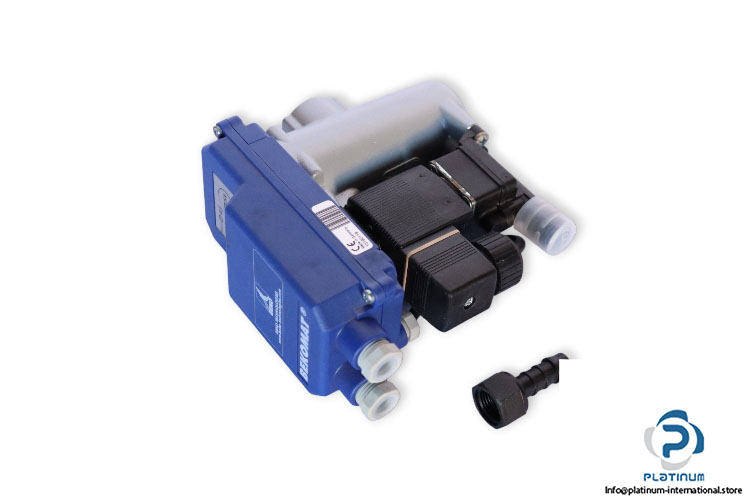

BEKOMAT BM12 CONDENSATE DRAIN
The Bekomat BM12 is an electronically level-controlled condensate drain engineered for efficient removal of condensate, including oil-contaminated fluids, from compressed gas systems. Designed for high reliability and zero air loss, it supports a wide pressure range and is suitable for compressors, refrigeration dryers, and filters.

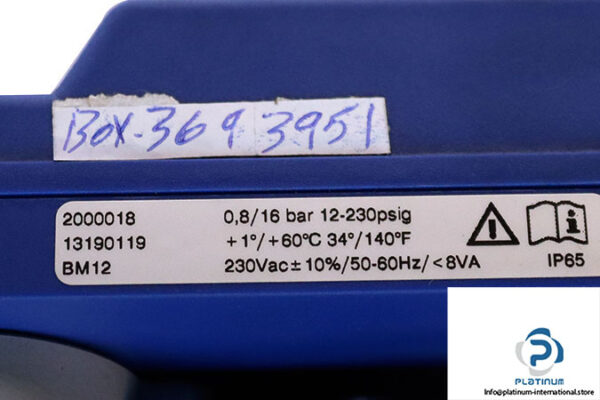

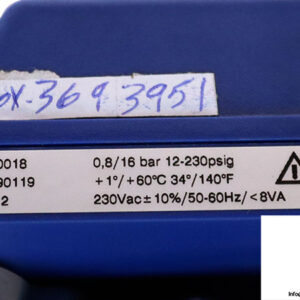

Manufacturer: Bekomat
Type: Electronically Level-Controlled Condensate Drain
Model: BM12
Part No.: 13190119
MNR: 2000018
Technical Information
- Function: Used For Draining Off Condensate In Compressed Gas Systems
- Fluid: Condensate, oil contaminated
- Working Pressure: 0.8 to 16 bar / 12 to 230 Psig
- Condensate Inlet: G ½
- Condensate Discharge: G 3/8
- Supply Voltage: 230 V AC, 50 to 60 Hz
- Fluid Temperature Range: 1 to 60°C
- IP Rating: IP65
- Max. Compressor Performance: 230 cfm
- Max. Refrigeration Dryer Performance: 460 cfm
- Max. Filter Performance: 2300 cfm
